Fagor CNC 8065elite T User Manual

Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
4.

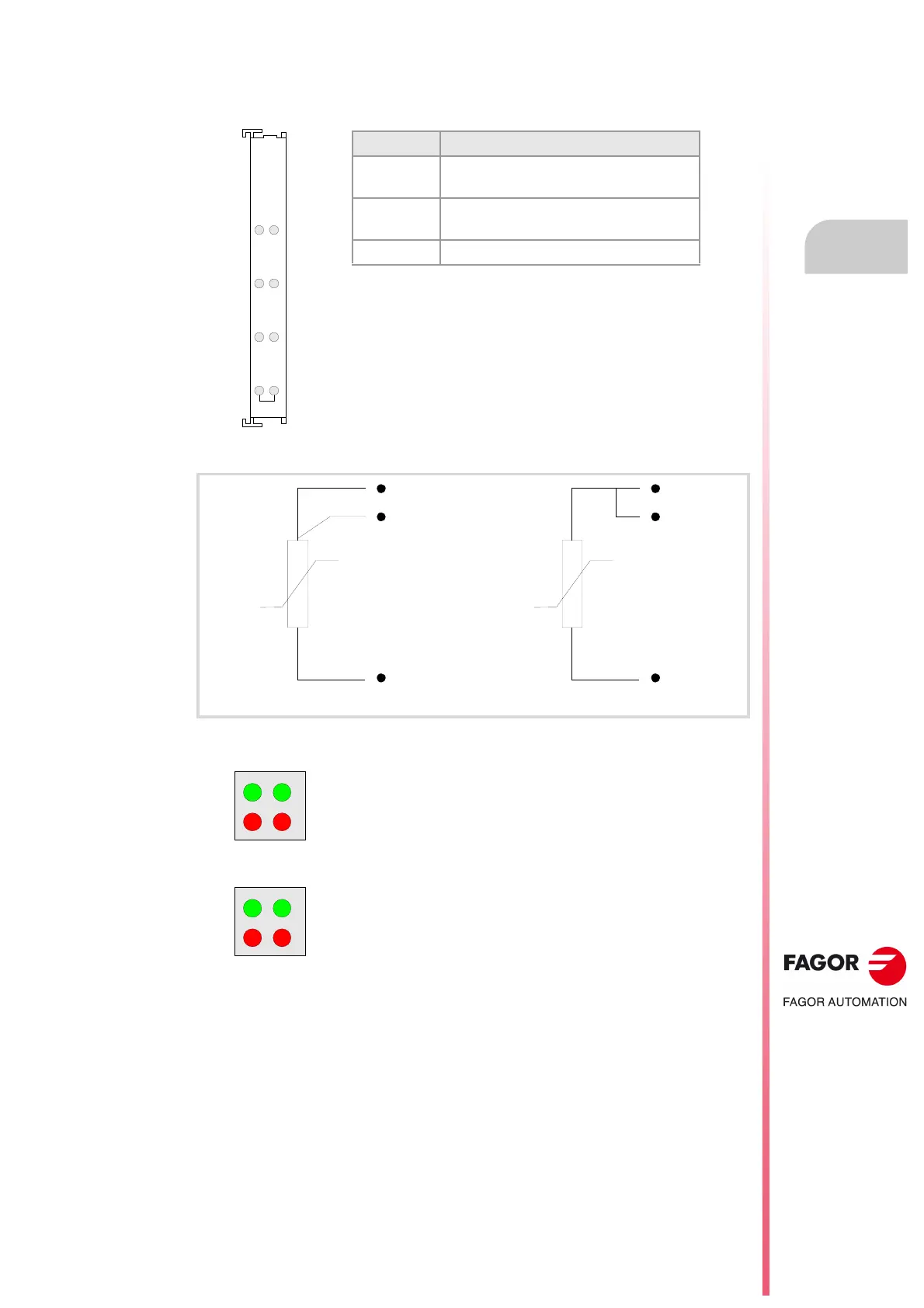

RIOW-2AI-PT100 module. Module of 2 inputs for PT100 temperature
sensors.
ꞏ79ꞏ
REF. 2107
4.11.1 Elements (connectors).
Analog inputs for PT100 temperature sensors (2 inputs).
The module allows connecting sensors with a 2-wire or 3-wire interface.
Led ꞏBUSꞏ. Data bus status.
Led ꞏERRꞏ. Error at the outputs.
3 wires. 2 wires.
Green LED's. Both inputs have an LED that turns on when
transmission at the bus is OK.
Red LED's. Both inputs have an LED that turns on when there is
an input reading error; reading out of range or broken cable.
R1+
RL1
R1-
SHIELD
R2+
RL2
R2-
SHIELD
Signal Function
R1+ RL1
R1-
Signals of the PT100 sensor.
R2+ RL2
R2-
Signals of the PT100 sensor.
SHIELD Grid.
The shield connectors are internally joined together and
are connected to the profile where the module is mounted
R+
R-
RL
R+
R-
RL
C
A
D
B
BUS
ERR
BUS
ERR
C
A
D
B
BUS
ERR
BUS
ERR
