Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Connections.
ꞏ118ꞏ
REF. 2107

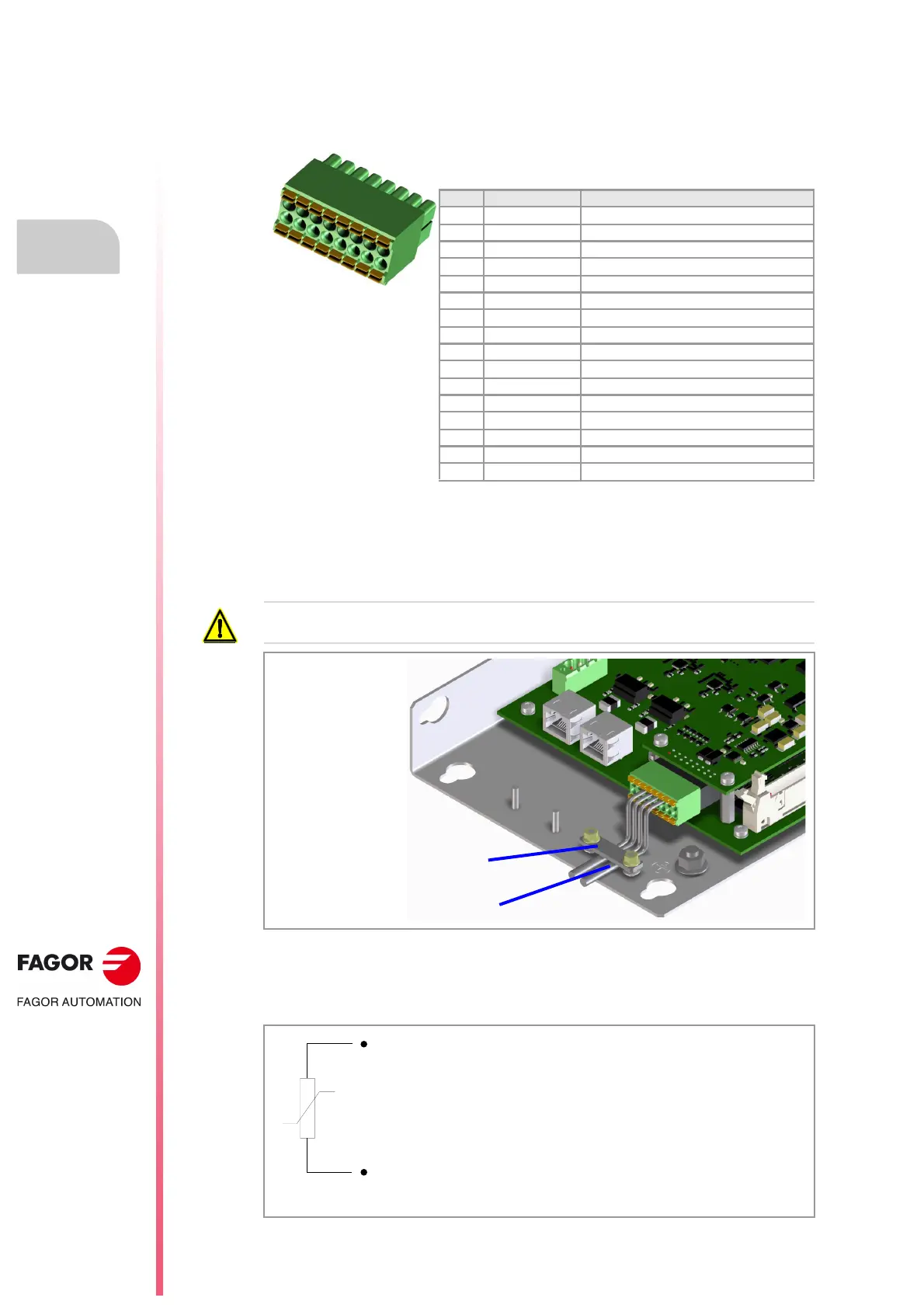

6.7.4 Connection of the analog inputs/outputs and the PT100 inputs.
ꞏI48ꞏ connector pinout.
Cable characteristics.
Use shielded twisted cable, AWG 16 to AWG 24 gage. The unshielded portion of the wires
of an unshielded cable cannot be longer than 75 mm.
PT100 sensor connection.
The module allows connecting sensors with a 2-wire interface.
Plug-in part 8x2 pin two-level male Phoenix Contact minicombicon (3.5
mm pitch). Rated current; 8 A.
Pin. Signal. Function.
1 GND_AO1 Reference signal. Analog output 1.
2 GND_AO2 Reference signal. Analog output 2.
3 AO1+ Analog output 1.
4 AO2+ Analog output 2.
5 GND_AO3 Reference signal. Analog output 3.
6 GND_AO4 Reference signal. Analog output 4.
7 AO3+ Analog output 3.
8 AO4+ Analog output 4.
9 GND_AI1 Reference signal. Analog input 1.
10 GND_AI2 Reference signal. Analog input 2.
11 AI1+ Analog input 1.
12 AI2+ Analog input 2.
13 GND_PT100_1 Reference signal. Input PT100 1.
14 GND_PT100_2 Reference signal. Input PT100 2.
15 PT100_1+ Input PT100 1.
16 PT100_2+ Input PT100 2.
1
15
2
16
Always connect the shield of the cable to the ground plate of the module itself.
