Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (CANOPEN).
5.
Dimensions and mounting of the module.
ꞏ87ꞏ
REF. 2107
5.1 Dimensions and mounting of the module.

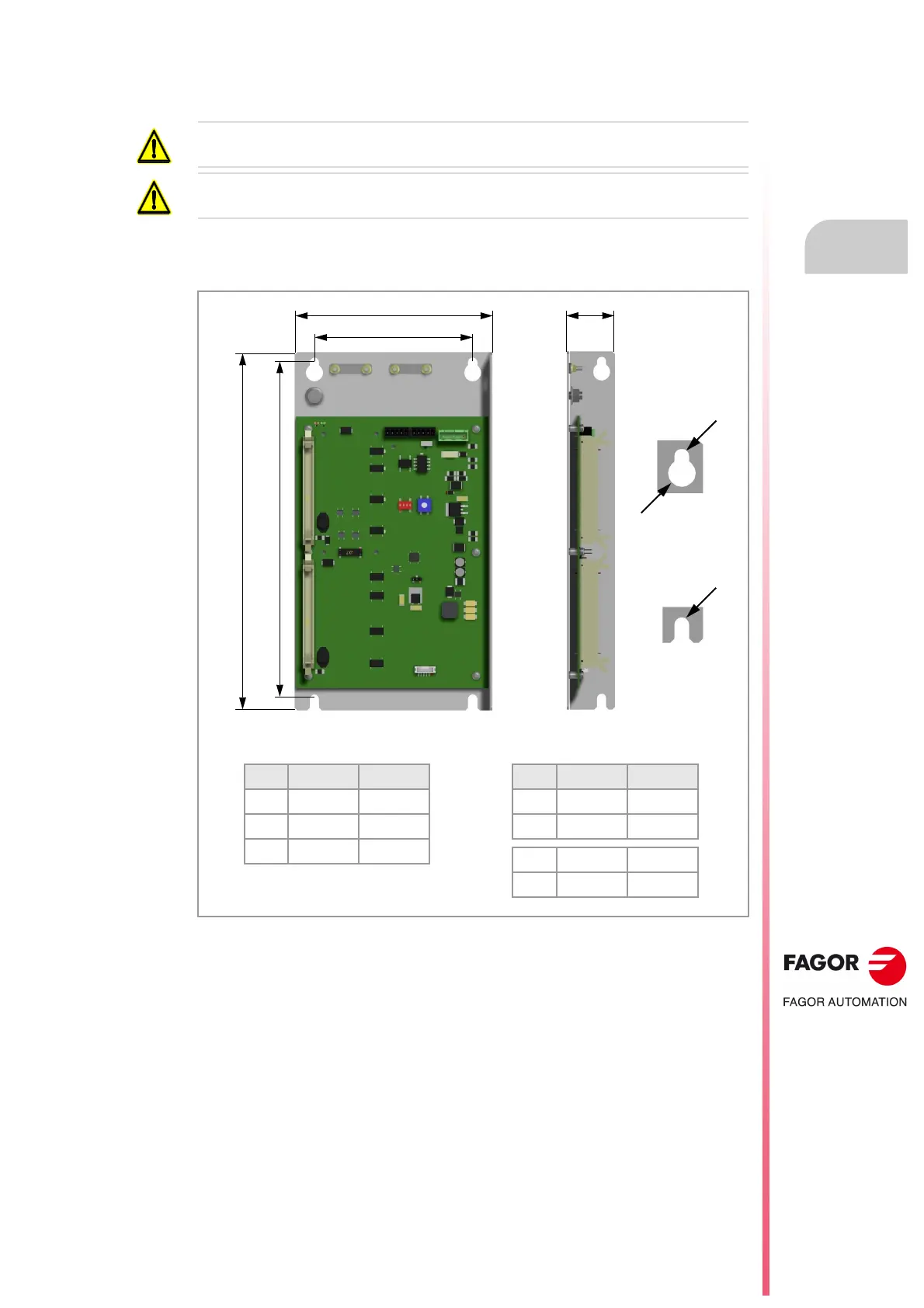

Module dimensions.
DO NOT make any connection or connect any module to the power supply while the latter is turned
on. Before making any connection, turn the power supply off by unplugging the power cable.
The RIOR module, meeting the standard EN 60529, corresponds to the IP00 classification, so it must
be mounted inside an electrical cabinet that provides at least IP54 protection.
Dbb
a
Da
c
mm inch
Da 120 4.72
Db 256 10.08
mm inch
a 150 5.90
b 272 10.70
c 36.50 1.44
Ra R 3.50 R 0.14
Rb R 6.50 R 0.26
Ra
Rb
Ra
