Fagor CNC 8065elite T User Manual

Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIO5 REMOTE MODULES. (CANOPEN PROTOCOL).
3.
Digital inputs and digital outputs (single module).
ꞏ39ꞏ
REF. 2107

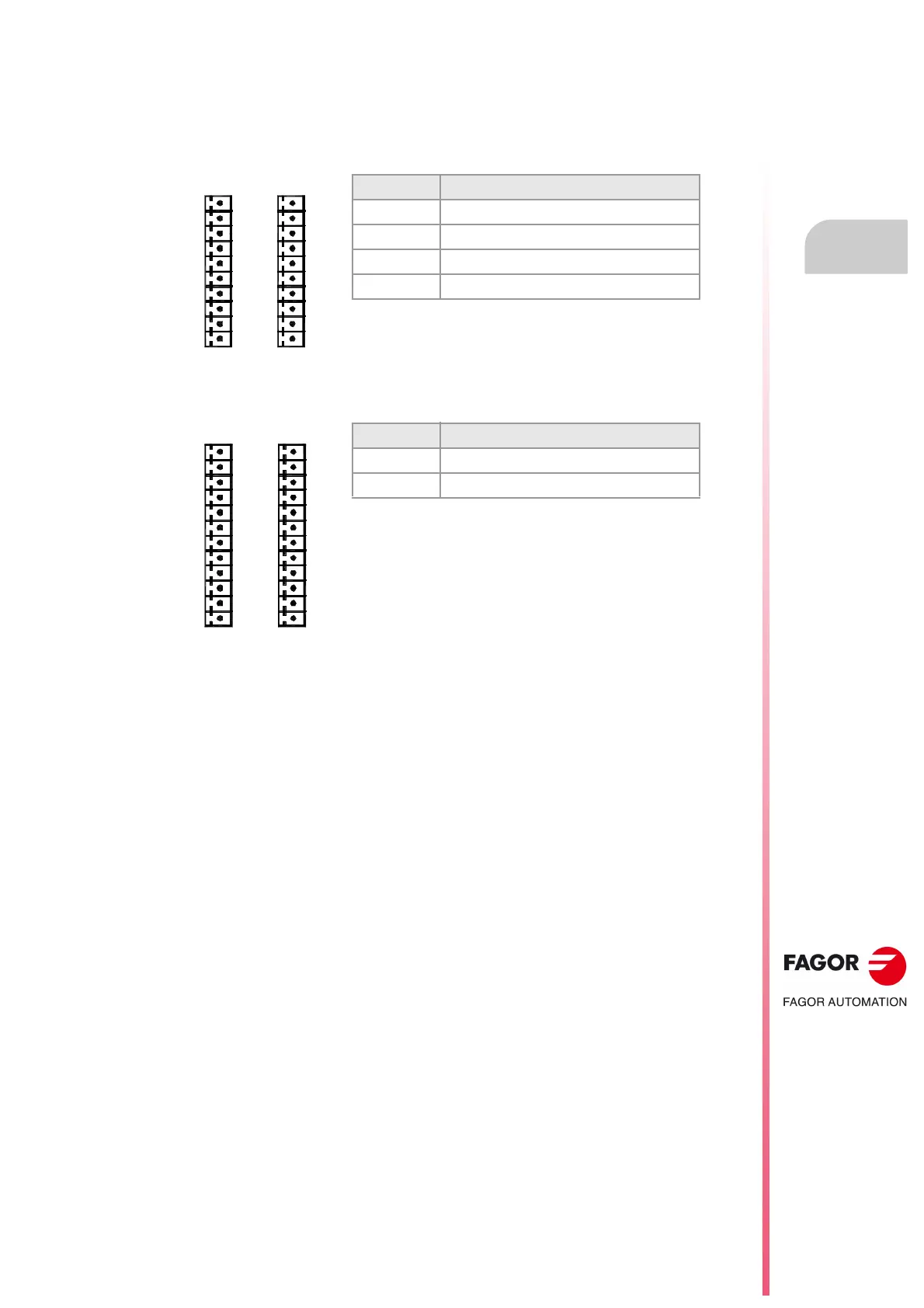

3.3.1 Elements (connectors).
Connector ꞏX1ꞏ & ꞏX2ꞏ. Digital outputs (8 outputs in each connector).
10-pin male Phoenix minicombicon contact (3.5 mm pitch). Both connectors must be
powered with 24 V DC and GND.
Connector ꞏX3ꞏ & ꞏX4ꞏ. Digital inputs (12 inputs in each connector).
12-pin male Phoenix minicombicon contact (3.5 mm pitch).
Signal. Function.
+ 24 V Power supply.
O1 - O8 Digital outputs.
O9 - O16 Digital outputs.
GND Power supply.
X1
O1
+24V
GN D
O8
O2
O3
O4
O5
O6
O7
X2
O9
+24V
GN D
O16
O10
O11
O12
O13
O14
O15
Signal. Function.
I1 - I12 Digital inputs.
I13 - I24 Digital inputs.
I12
I1
I24
I13
X3 X4
I2
I3
I4
I5
I6
I7
I8
I9
I10
I11 I23
I22
I21
I20
I19
I18
I17
I16
I15
I14
