External Ballast resistors
4.
195
DDS
HARDWARE
Ref.1310
ER+TH-18/x+FAN resistors with internal thermostat and fan. Techni-
cal data
The independent resistors whose reference is ER+TH-18/+FAN are ex-
ternal electrical resistors that can also be used with power supplies and
compact drives that have an internal thermostat and a single-phase 220 V
AC cooling fan.
Chapter
8. INSTALLATION shows the installation rules for external brak-
ing resistors that must be followed strictly in order to install them properly.
Chapter
11. DIMENSIONS of this manual shows their dimensions.

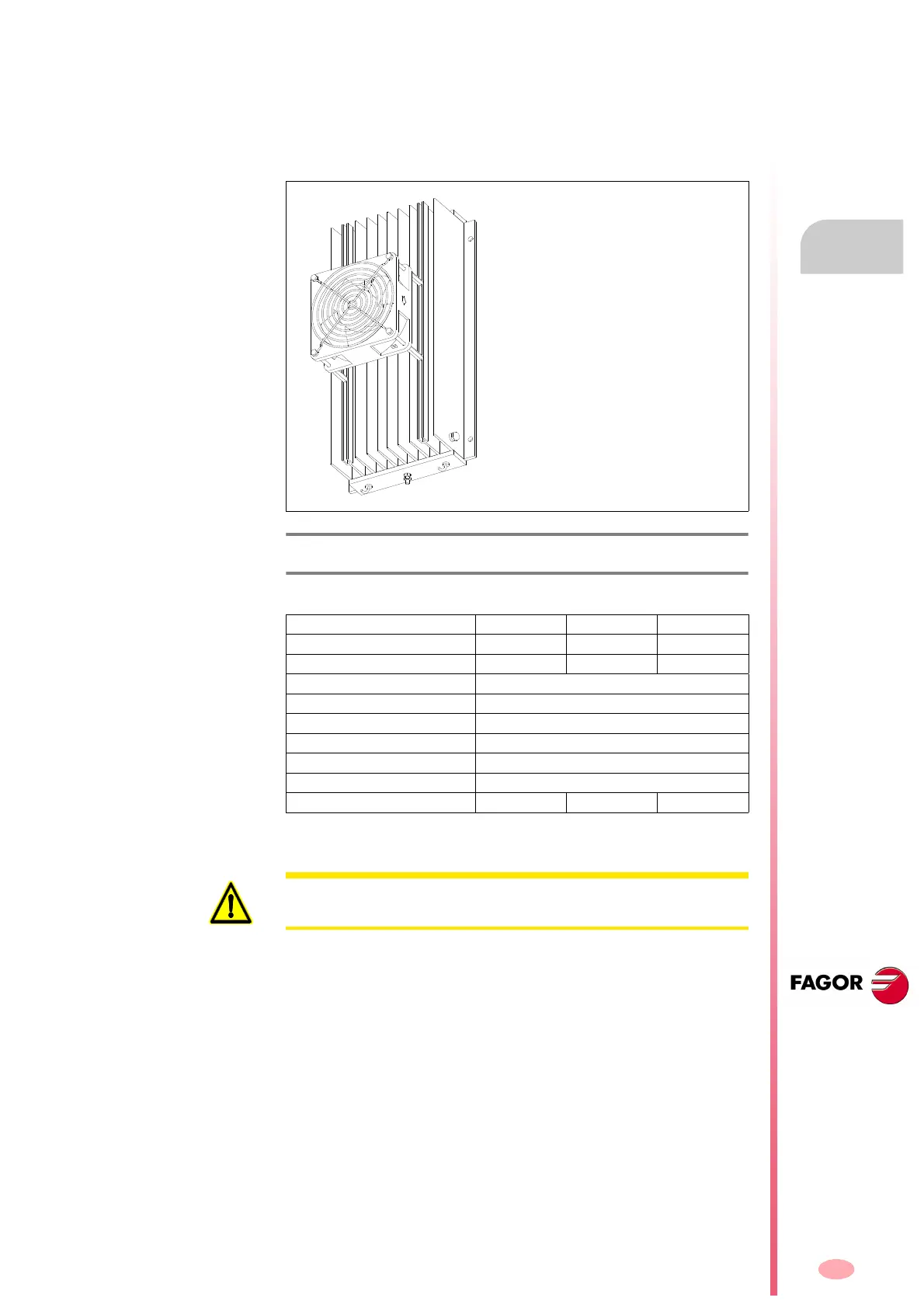

F. H4/5
External Ballast resistor with internal thermostat and a fan.
T. H4/7 External Ballast resistor with internal thermostat and a fan. Tech-
nical data.
ER+TH-OO/OOOO+FAN 18/1000 18/1500 18/2000
Resistor 18 18 18
RMS power 2.0 kW 3.0 kW 4.0 kW
Operating room temperature - 10 °C / + 40 °C (14 °F / 104 °F)
Storage temperature - 20 °C to 60 °C (- 4 °F to 140 °F)
Relative humidity < 90 % non condensing at 45 °C (113 °F)
Operating vibration 0.5 G
Shipping vibration 2 G
Sealing IP 20 / IP 65*
Approx. mass kg/lb 6.0 / 13.2 7.0 / 15.4 8.0 / 17.6
* To maintain a sealing protection of IP 65, the surface temperature of the
resistor must not exceed 200 °C / 392 °F.
WARNING. Careful with the surface of these resistors. Remember that its
temperature may exceed 300 °C (572 °F).
