June 2014 PLT-01277, Version: 1.2
Page 4-11 Printer Preferences
4.4.1 Image Position
Adjust the image position values by clicking the arrow buttons next to the vertical and horizontal
fields.
These values ensure that the cards always remain in the same position as they travel through the
printer (regardless of image orientation).

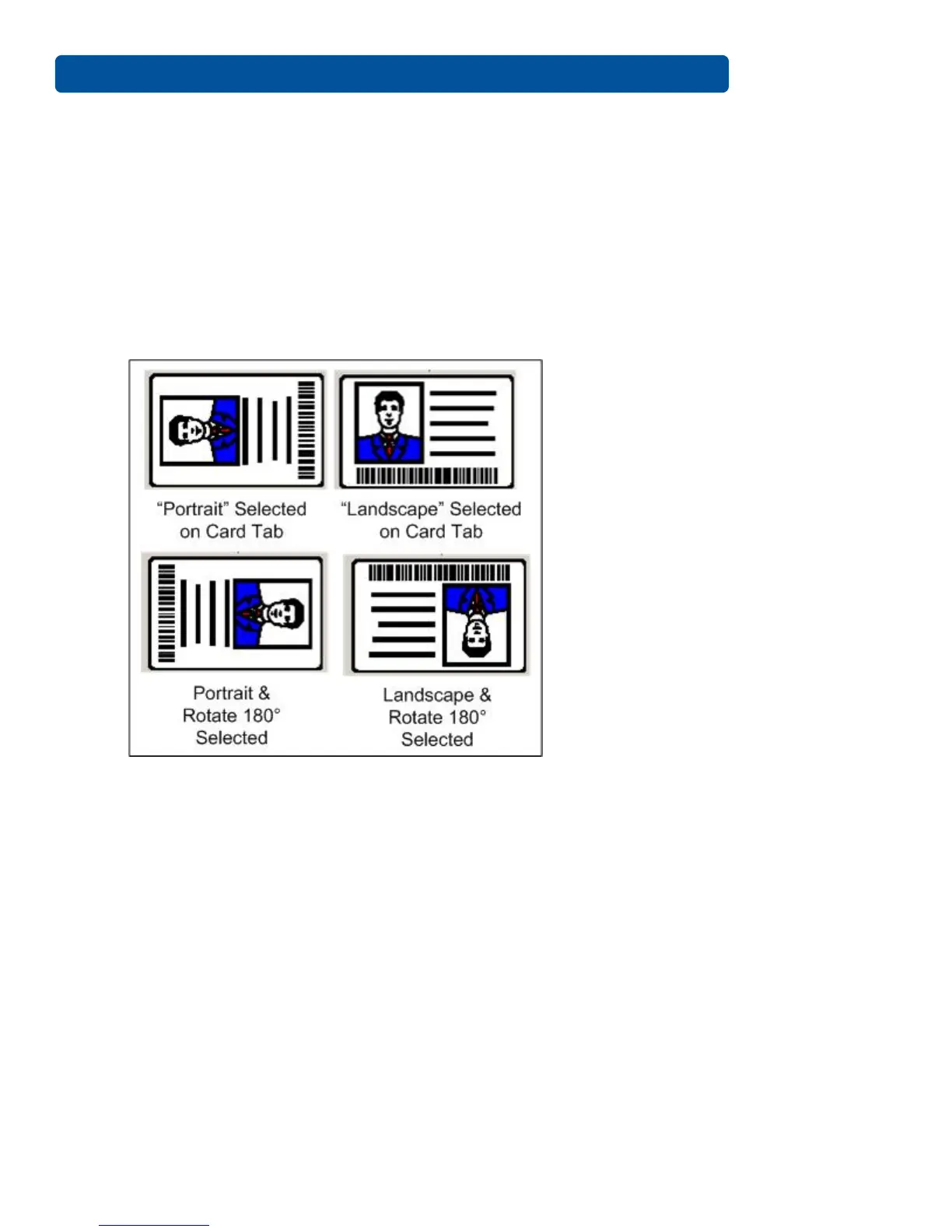

The card Illustration rotates according to the selection of portrait, landscape (card tab) or rotate
front 180 degrees (device options tab).
The outline around the illustration remains constant in the landscape orientation.
4.4.1.1 Vertical
Use the vertical adjustment to move the image toward the top or bottom of the card. A positive
number moves the image toward the top. A negative number moves the image toward the bottom.
The maximum value for the vertical adjustments is ±100 pixels (10 pixels = 0.03inches (.8mm).
4.4.1.2 Horizontal
Use the horizontal adjustment to move the image toward the left or right side of the card. A positive
number moves the image toward the left. A negative number moves the image toward the right.
The maximum value for the horizontal adjustments is ±100 pixels (10 pixels = 0.03inches (.8mm).
