DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 105
.

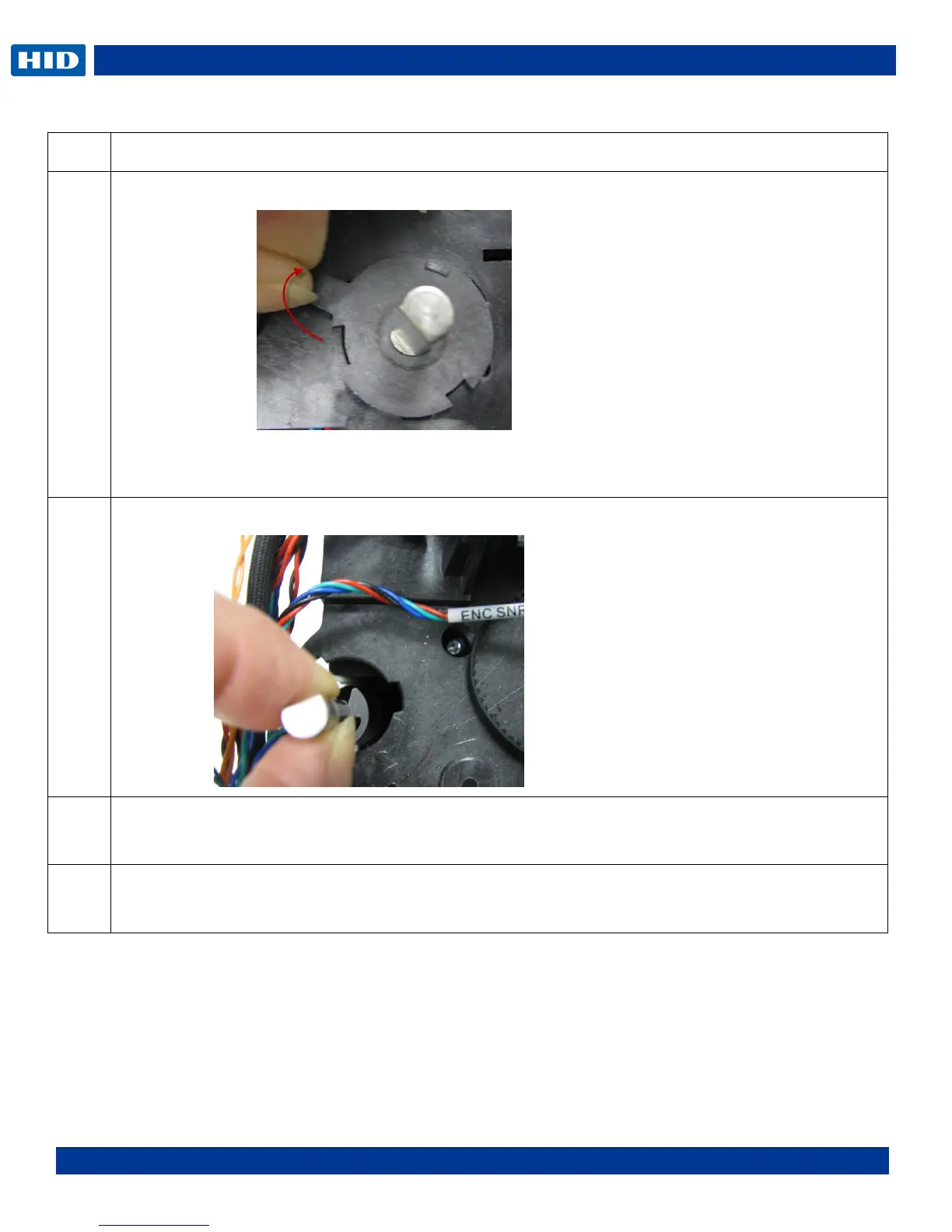

Step
Procedure
D-4
Remove the Shaft Bushing. (D900046)
Unlock the shaft bushing (D900046) by turning it counter clock wise.
(TIP: Lift UP on the tab to unlock the pin underneath the tab.)
D-5
Remove the Roller (D920015)
D-6
Replace with the new roller (D920015).
Use the E CLIP from the old roller. Make NOTE: of how this is placed on the roller.
D-7
Reverse assembly to complete the roller replacement.
A new belt (220082) may be replaced if necessary.
