DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 106
.
Step
Procedure
D-8

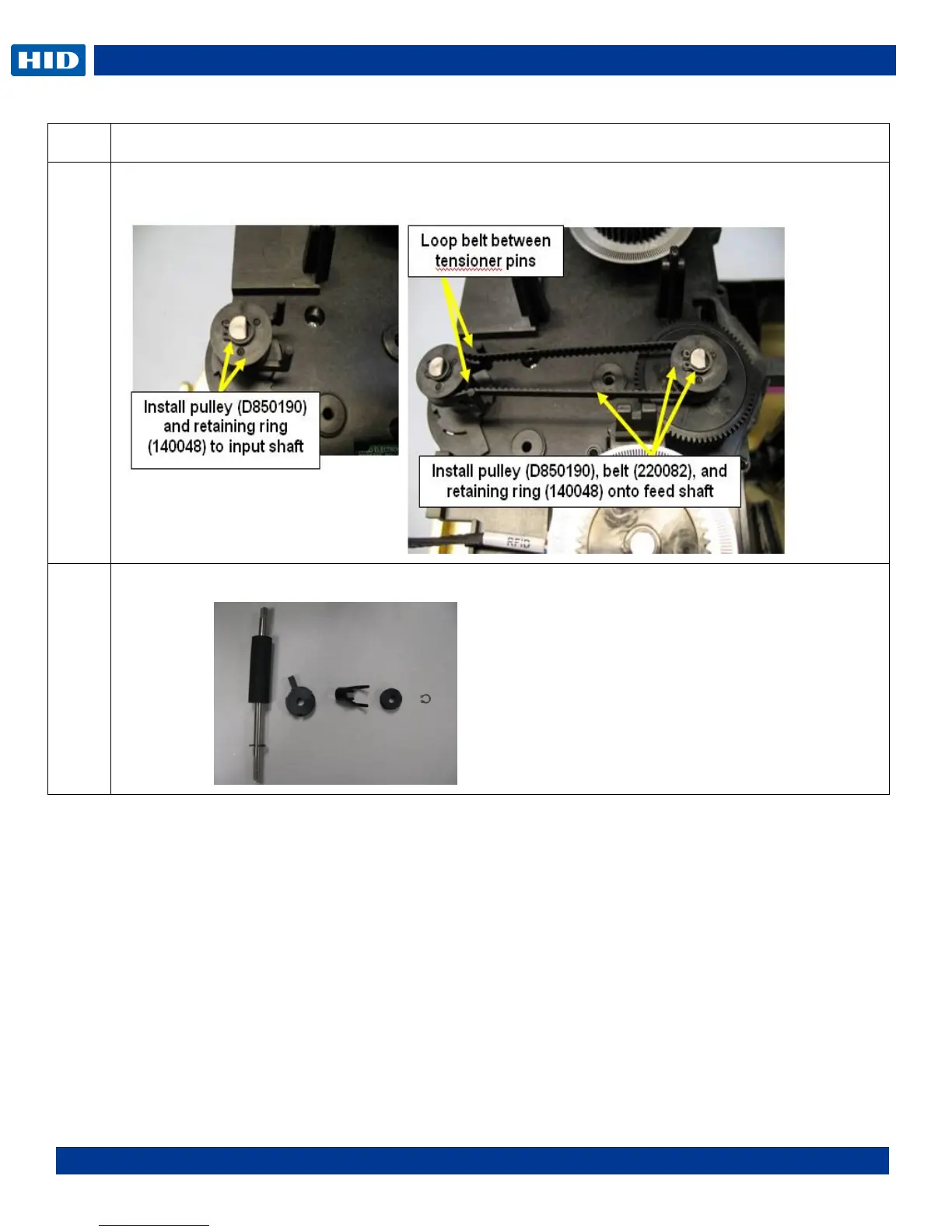

TIP: Orient the flat side of the shaft facing RIGHT on both rollers when replacing the pulley.
D-9
Shows order of parts when replacing.
