DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 56
.
Step
Procedure
NOTE: This step is used for the DTC 1250e, 1000Me, 4250e.
6

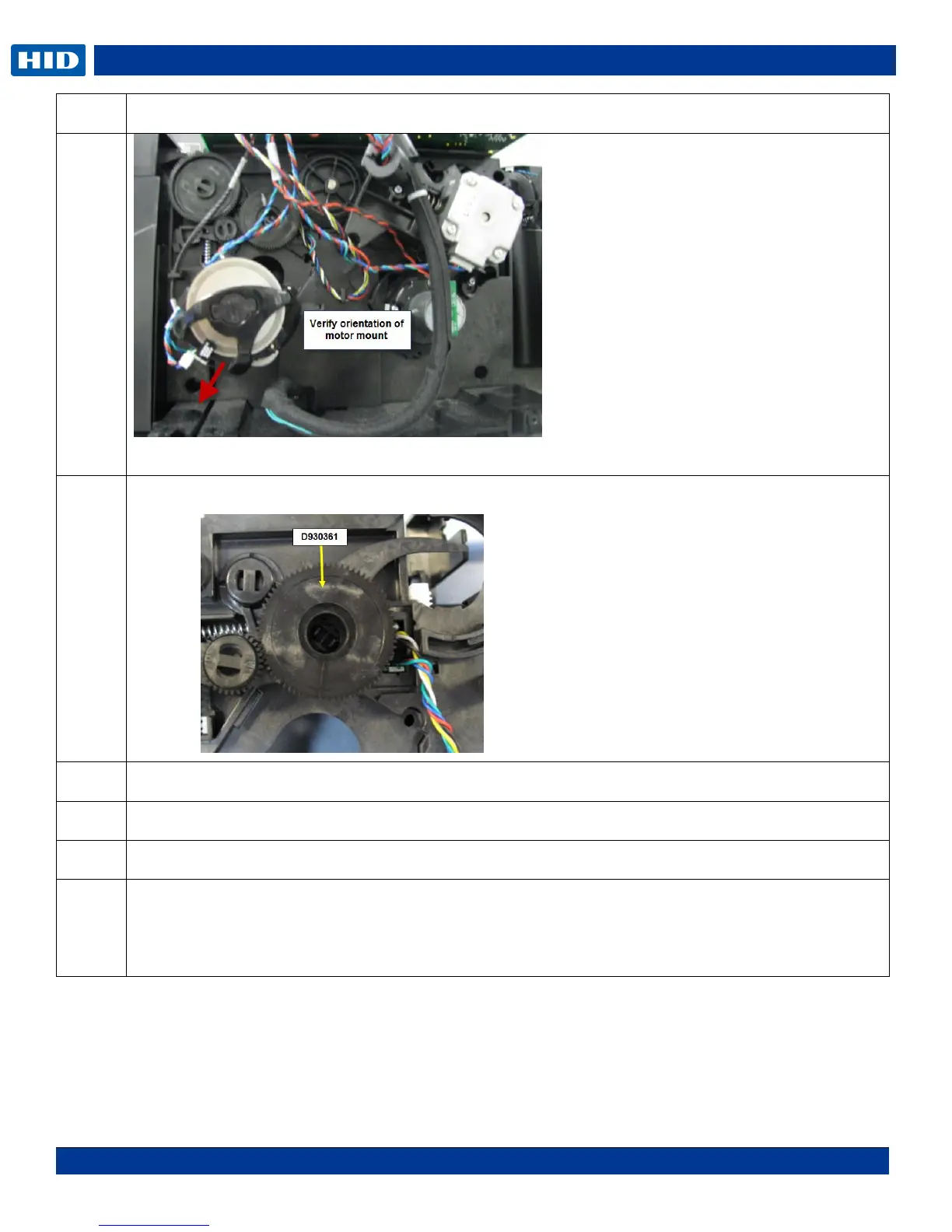

Remove the Cleaning Roller Gear (D930361)
7
Remove the stepper motor assembly and belt (D930028)
8
Remove the pulley (e-clip) and washers.
9
Remove platen cam rotation. Locking bushing.
10
Remove the Lever. Be careful not to lose the spring.
NOTE: How the spring is set into the pegs.
The gear will pull straight out.
