FAST ComTec MCDWIN User Manual

Hardware Description
ComTec GmbH 3-2
Timing diagram
3.2. Jumper settings for the FAST ComTec 7070 ADC
To use the webMCA with the 7070 ADC the jumpers of the 7070 must be set as follows:

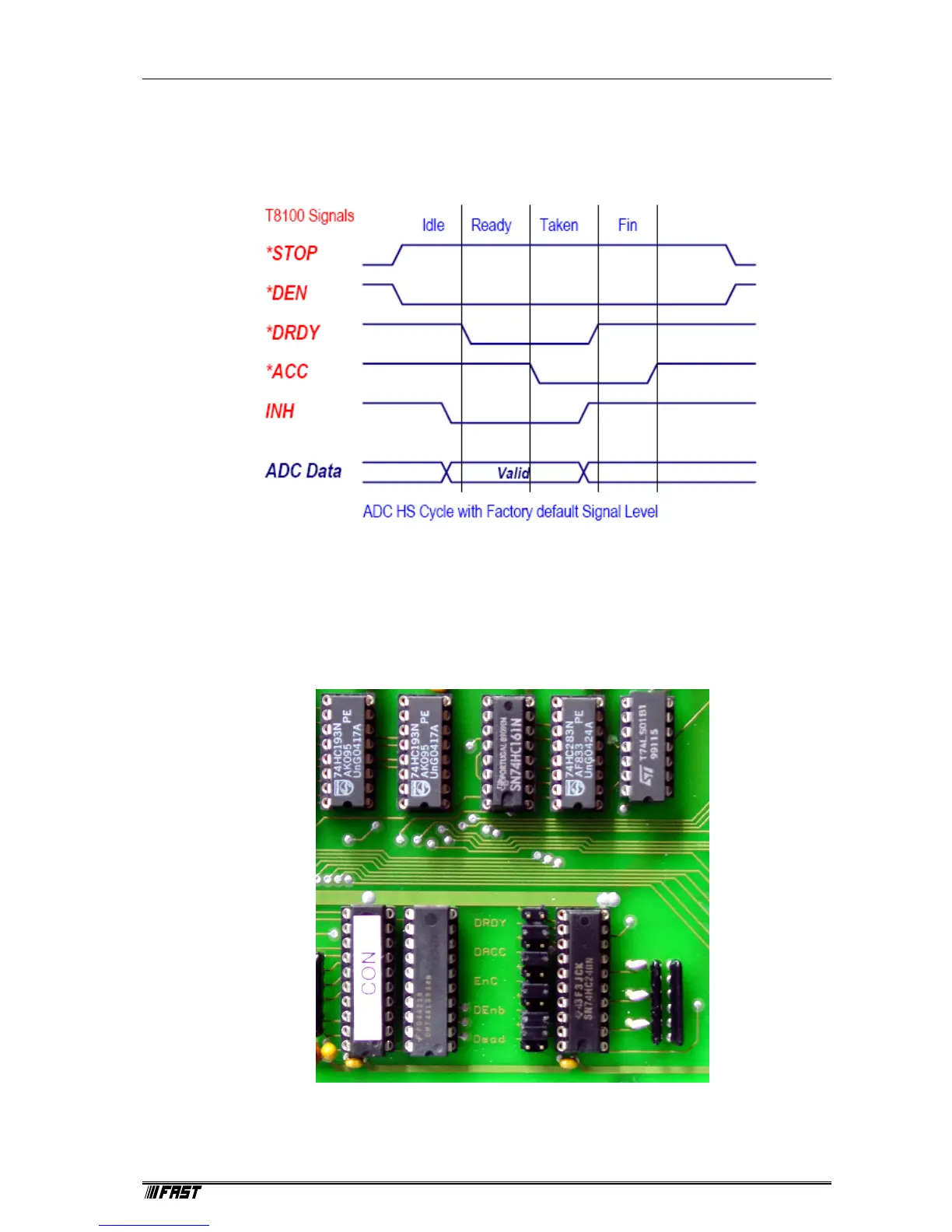

Figure 3.1: Timing of the handshake signals
Figure 3.2: Jumper setting for FAST ComTec 7070 ADC
