MCDWIN Program
ComTec GmbH 5-11
Lin / Log scale
For a Lin scale all data intervals have the same size. With Log scale the intervals will be small for
small y values and large for large y values. All options have effect only on the active Display.
Calibration...
Using the Calibration menu item or the corresponding icon opens the Calibration dialog box.
Make a choice of several calibration formulas. Enter some cursor positions and the corresponding
values, click on Add, then on Calibrate. The obtained coefficients can be inspected together with
the statistical error, or they can be changed and entered by hand. If ‘use calibration’ is on, the
calibrated values are displayed together with the channel position of the cursor.
Comments...
Up to eleven comment lines with each 60 characters can be entered using the Comments dialog
box. The content of these lines is saved in the data header file. The first line contains
automatically the time and date when a measurement was started. The titles of each line can be
changed by editing the file COMMENT.TXT.

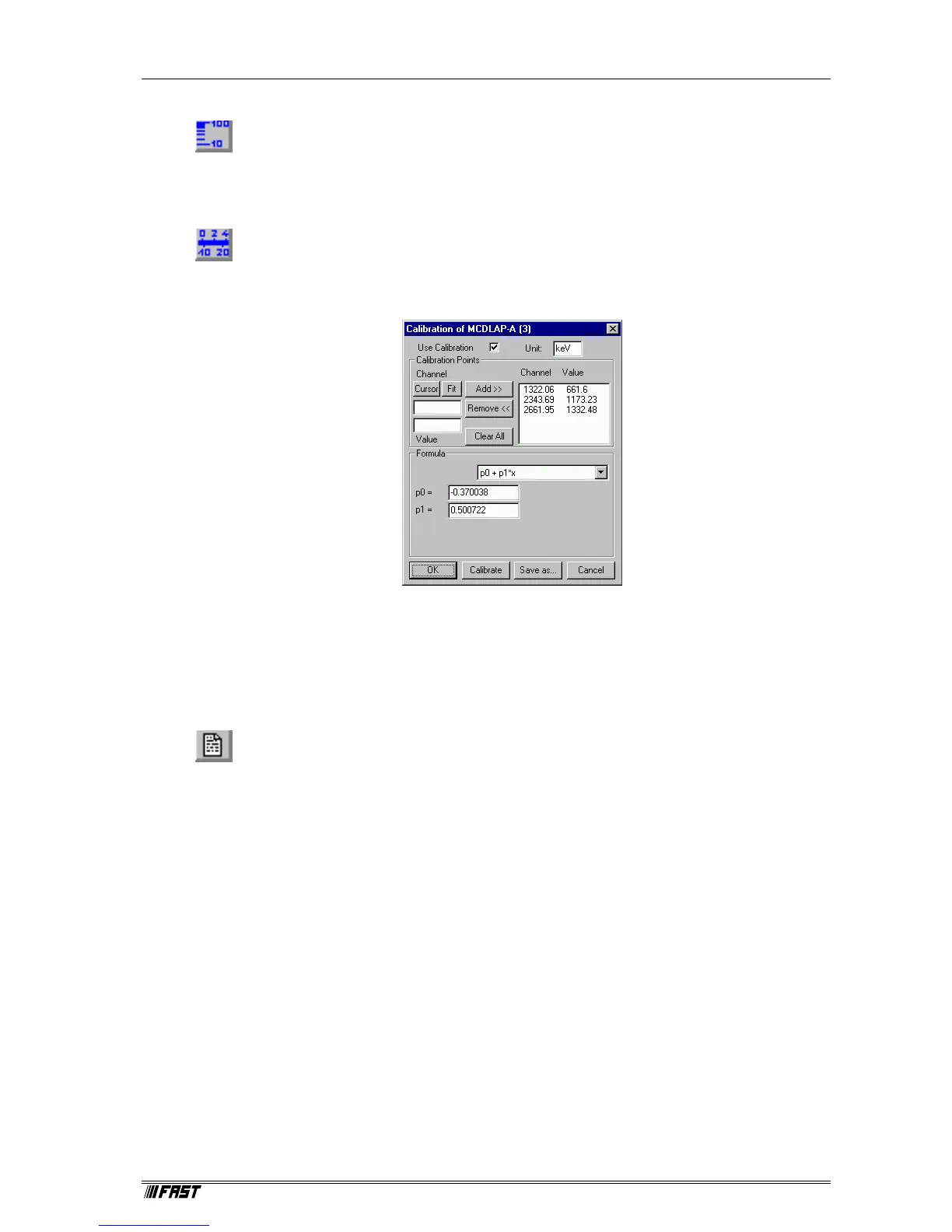

Figure 5.12: Calibration dialog box
