MCDWIN Program
ComTec GmbH 5-6
Edit...
With the Edit item, a dialog box is opened which allows to edit the ROI list, i.e. create a new or
delete, change and activate an existing ROI. Also the peak values for an automatic calibration can
be entered here. A ROI can be edited and added to the list. It can also be made to the „Active
ROI“, that is the special ROI that is used by the server program to calculate the events within this
ROI and look for an event preset. The ROI list can be cleared and it can be written into a file with
extension .CTL, which can be directly loaded into the server to restore the ROI list.
Fit...
By selecting the Fit... menu item or the respective icon, A single Gaussian peak fit with linear
background is performed for the currently marked region. The fitted curve is displayed and a
dialog box shows the results:

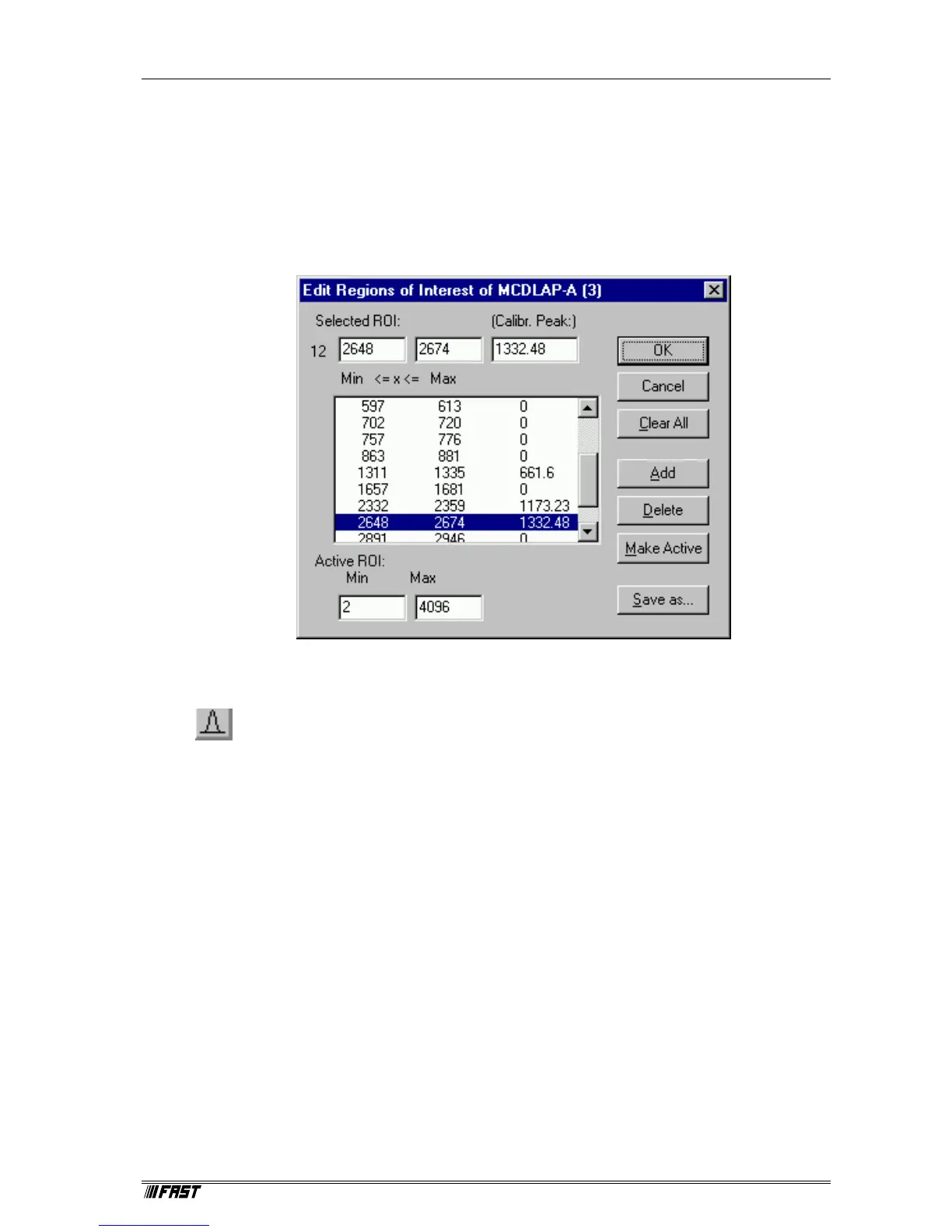

Figure 5.5: ROI Editing dialog box
