Installation Procedure
ComTec GmbH 2-1
2. Installation Procedure
2.1. Hard- and Software Requirements
The following items are required using a webMCA:
• Power over Ethernet adapter (DWL-P100 included with the webMCA)
• 10+ Mbit network connection
• A PC with Microsoft Windows 98 / ME / 2000 / XP installed is required for use of the supplied
control and analysis software MCDWIN.
2.2. Hardware Installation
The webMCA has to be connected to the local network either with a Power over Ethernet (PoE)
adapter DWL-P100 or a PoE switch using a +48V power supply for the PoE device (optional).
The desired spectroscopy ADC has to be connected to the 25-pin connector of the webMCA using
the provided cable.
After connecting to the PoE device the webMCA needs about 30 sec for initialization. The “MCA”
LED indicates when the webMCA can be accessed.

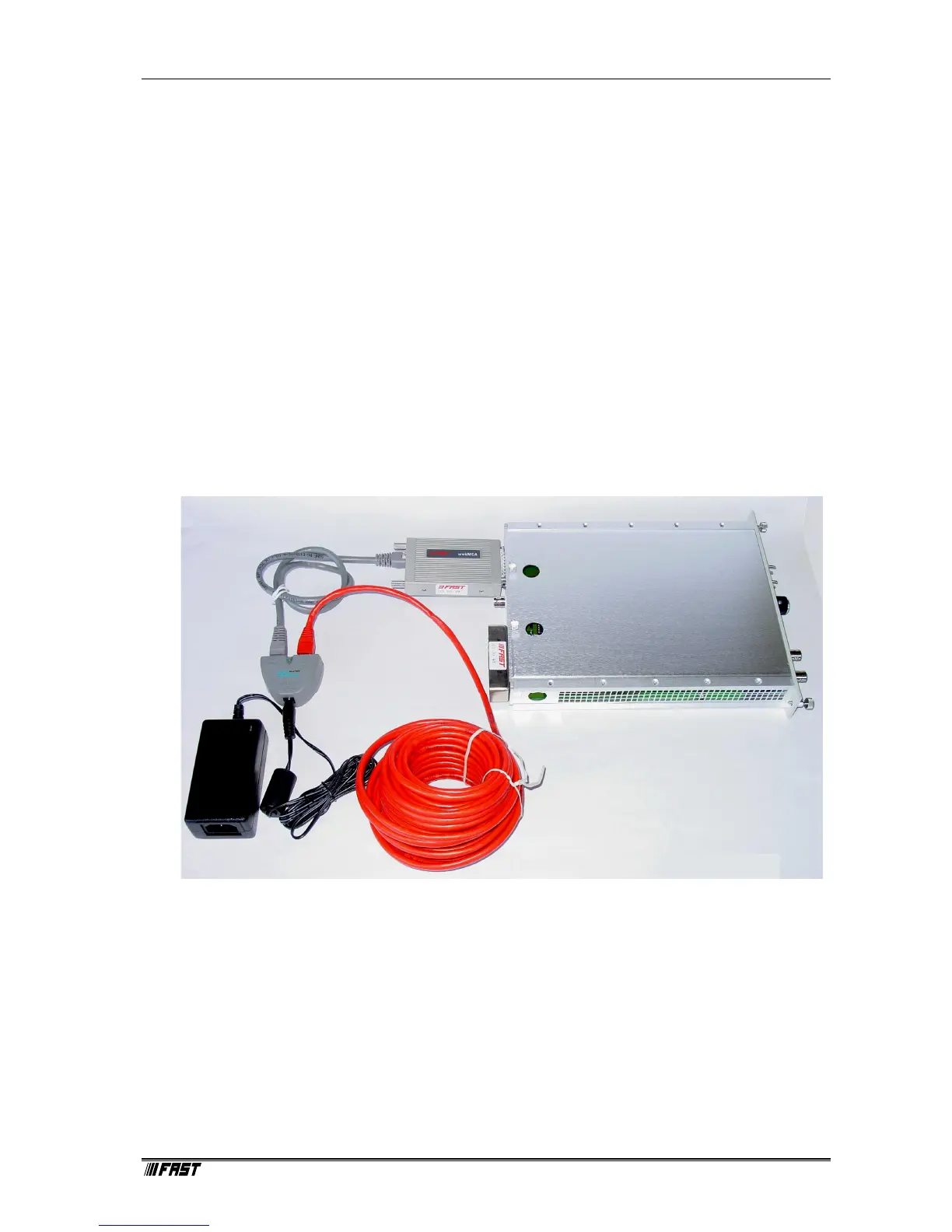

Figure 2.1: Connecting the webMCA
