Windows Server Program
ComTec GmbH 4-3
4.1.4. System Settings
If more than one MCA is used, the system definition dialog box comes up as shown in Figure 4.5.
Here the several units can be combined to form up to 4 separate systems that can be started,
stopped and erased by one command.
In the shown setting a single system is formed. The two webMCAs A and B are combined, both
operate in one system. System 1 can be started, stopped, erased, and continued with the
respective commands in the Action 1 menu. It is also possible for example to form two
independent systems 1 and 2: Click on the button labeled <<All below the list box „System1“ to
remove all units from system 1. They are then shown in the „Not active“ list box. Then select unit
A and click on the button labeled >> below the „System 1“ list box to include it into system 1 and
perform the respective action for unit B and System 2.
4.1.5. Config file
Clicking „Save Settings“ stores all settings in the file WEBMCAA.CFG in a form:
sysdef=0
range=8192
rtpreset=20.000
rtprena=1
ltpreset=0
ltprena=0
roimin=0
roimax=8192
roipreset=0
roiprena=0
autoinc=0
datname=specA.dat
savedata=0
fmt=dat
smoothpts=5
caluse=0
This file is automatically loaded at the start of the program and the parameters are set. Together
with each data file a header file with extension .MCD is saved. This header also contains all
settings and in addition some information like the date and time of the measurement, comments
and calibration parameters entered in the MCDWIN program.

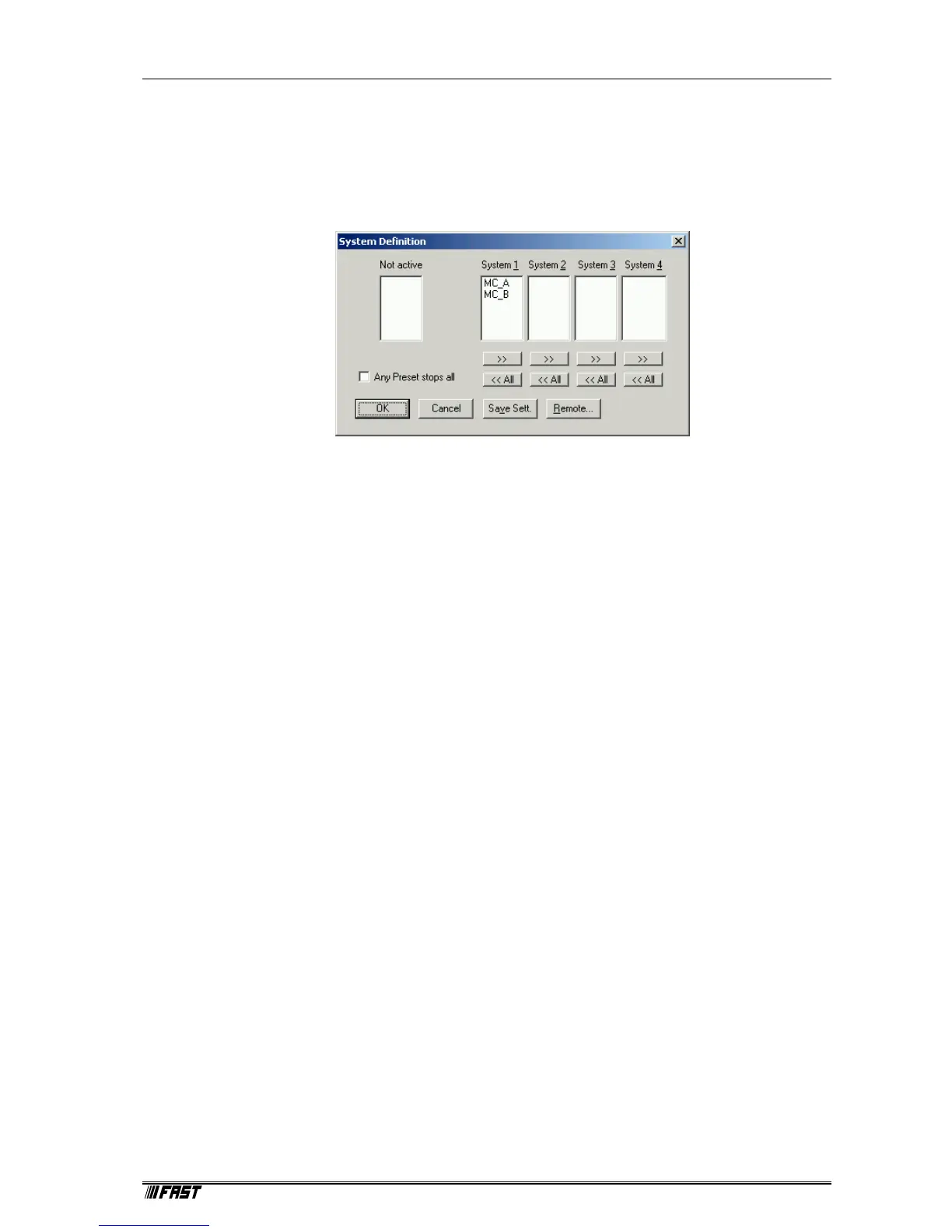

Figure 4.5: System Definition dialog box, two webMCAs
