a. Print Enable menu.

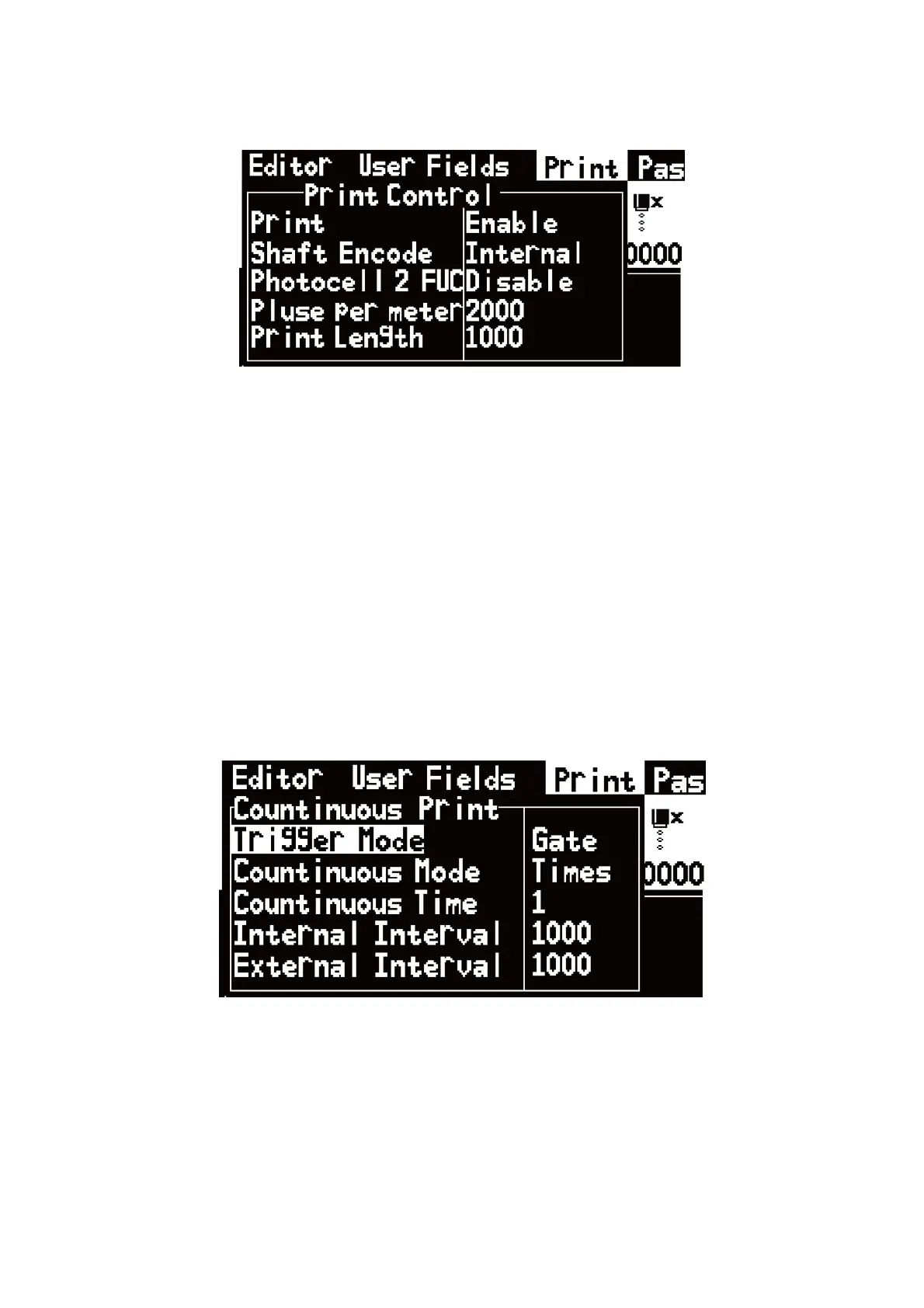

Figure2- 20. Print Control menu
● Select Print Enable option.
● Set the Shaft Encode to Internal option for a fixed line speed.
Set to External option for use with a compatible shaft encoder where
the line speed is variable.
● if pec2 is connected, select Reset or Close.
● Don’t need to set up.
● Don’t need to set up.
b. Continuous Print menu.
Figure2- 21. Continuous Print menu
● When Tri gger Mode select Tr ig ger. Once triggered the printer will
print Continuous Time, unless the photocell level condition.
When Trigg er Mode select Gate. Only meet photocell level
