Cumulative run time
Select the target menu by moving the pointer
Æ
with /
keys.
DC link circuit voltage
Max. inverter internal air temperature
Max. heat sink temperature
Max. effective current value
Internal capacitance of the DC bus
capacitor
Cumulative operation time of motor
Cumulative run time of capacitors
on printed circuit board
(Standard replacement intervals)
Cumulative run time of cooling fan
(Standard replacement intervals)
Number of startups
Cumulative power consumption
Not applicable
Number & Contents of RS485
communications errors
Not applicable
Not applicable
ROM version of the inverter
ROM version of the keypad
ROM version of the option
Option name

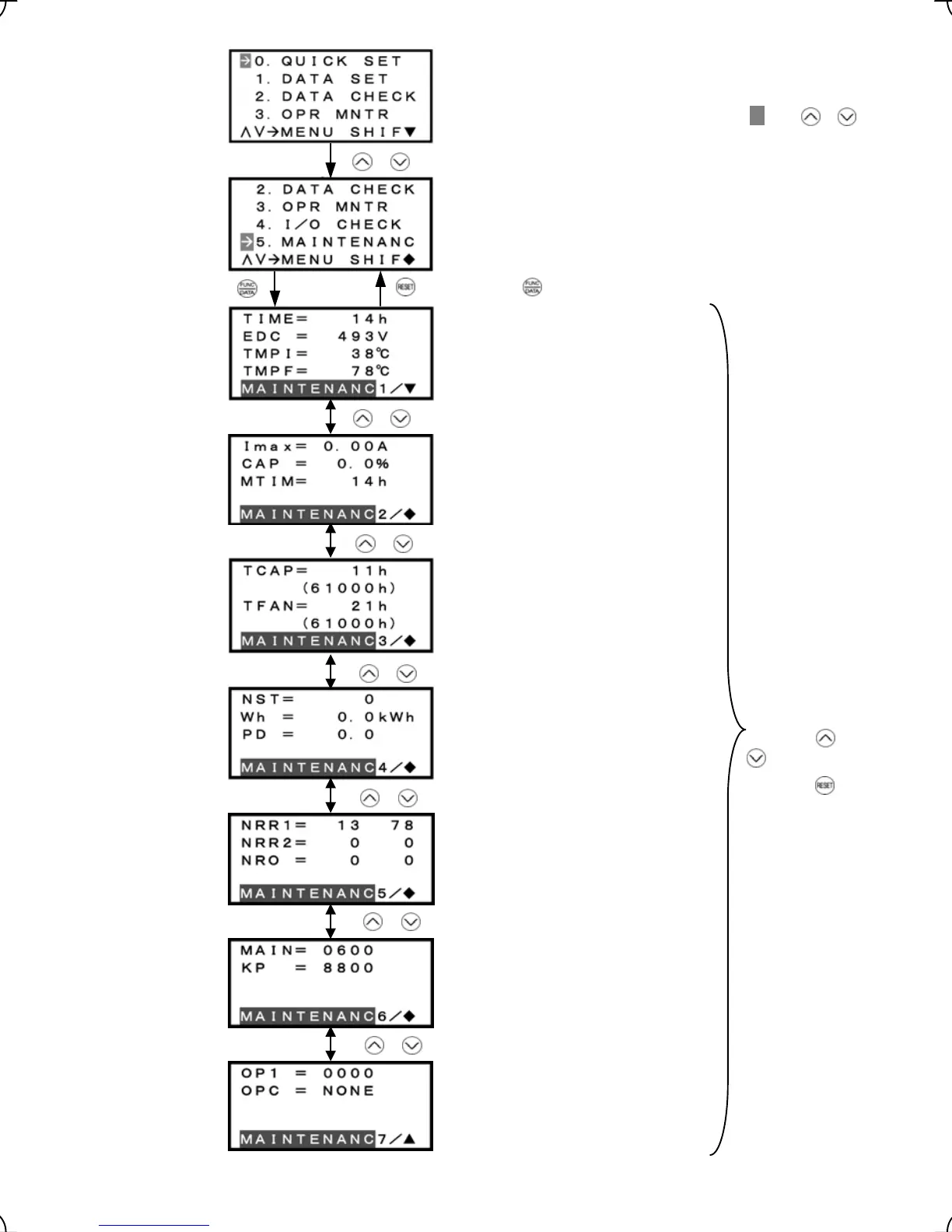

Figure 3.15 Screen Transition for "5. MAINTENANC"
/
/
/
/
/
/
/
Common
operation:
To confirm data,
call the desired
page with
/
keys.
Press the
key to return to
Menu.
Press the
key to establish the target menu.
3-22
