Chapter 6 Description of Operations
PAGE 6-73

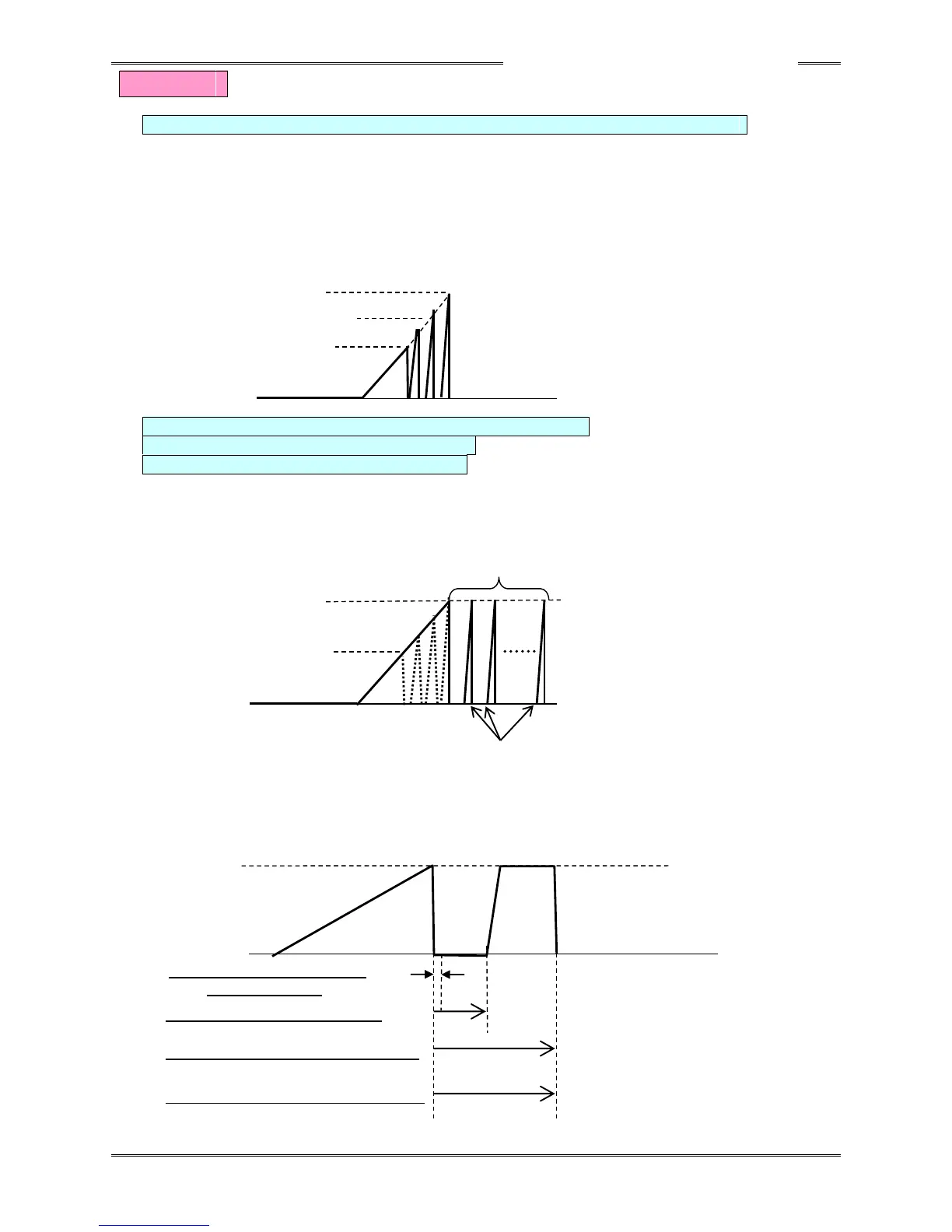

Pulsing
D-No.006 Interrupt Operation During Fastening : Pulse Fastening Operation ON
Set value: xxxxx1
By setting “1” for Pulse Fastening Operation ON as Data No. 006 Fastening Interrupt Operation, the
pulse fastening operation is performed from after the detection of the 1st torque (D-No. 105) to the
attainment of the standard torque (D-No. 103).
Operation speed: 1st torque ~ 2nd torque/2nd speed (D-No. 403)
2nd torque ~ standard torque/3rd speed (D-No. 404)
103: Standard Torque
109: 2nd Torque
105: 1st Torque
D-No.005 After Fastening Operation: Recovery Pulse ON Set value: xxxx1x
D-No.550 Recovery Pulsing Count [times] Setting range: 0~50
D-No.551 Recovery Pulsing Speed [rpm] Setting range: within tool speed range
By setting “1” for Recovery Pulse Operation ON as Data No. 005 After Fastening
Operation, refastening is performed for the number of times defined by the recovery
pulsing count (D-No. 550) after fastening to the standard torque (D-No. 103).
Operation speed: Recovery pulsing speed (D-No. 551)
▼Limiting by the current value is applied at the end of fastening.
103: Standard Torque
105: 1st Torque
550: Recovery Pulsing Count 0~50 times
551: Recovery Pulsing Speed [rpm]
During recovery pulsing, the parameters for pulse fastening operation are used.
(Caution) Be sure to set the parameters so that Pulsing Cycle Time > Pause Time
(otherwise, pulsing will not be performed).
