9-5-3 I/O Signal Specifications
I/O Input/Output
Message Input/Output
AXIS to PLC
PLC to AXIS
AXIS to PLC
PLC to AXIS
Maximum
Setting
32 bytes (256 points)
8 bytes (64 points)
4096 bytes
32 bytes
Standard
Setting
16 bytes (128 points)
8 bytes (64 points)
200 bytes
32 bytes
9-5-4 Fieldbus Setup

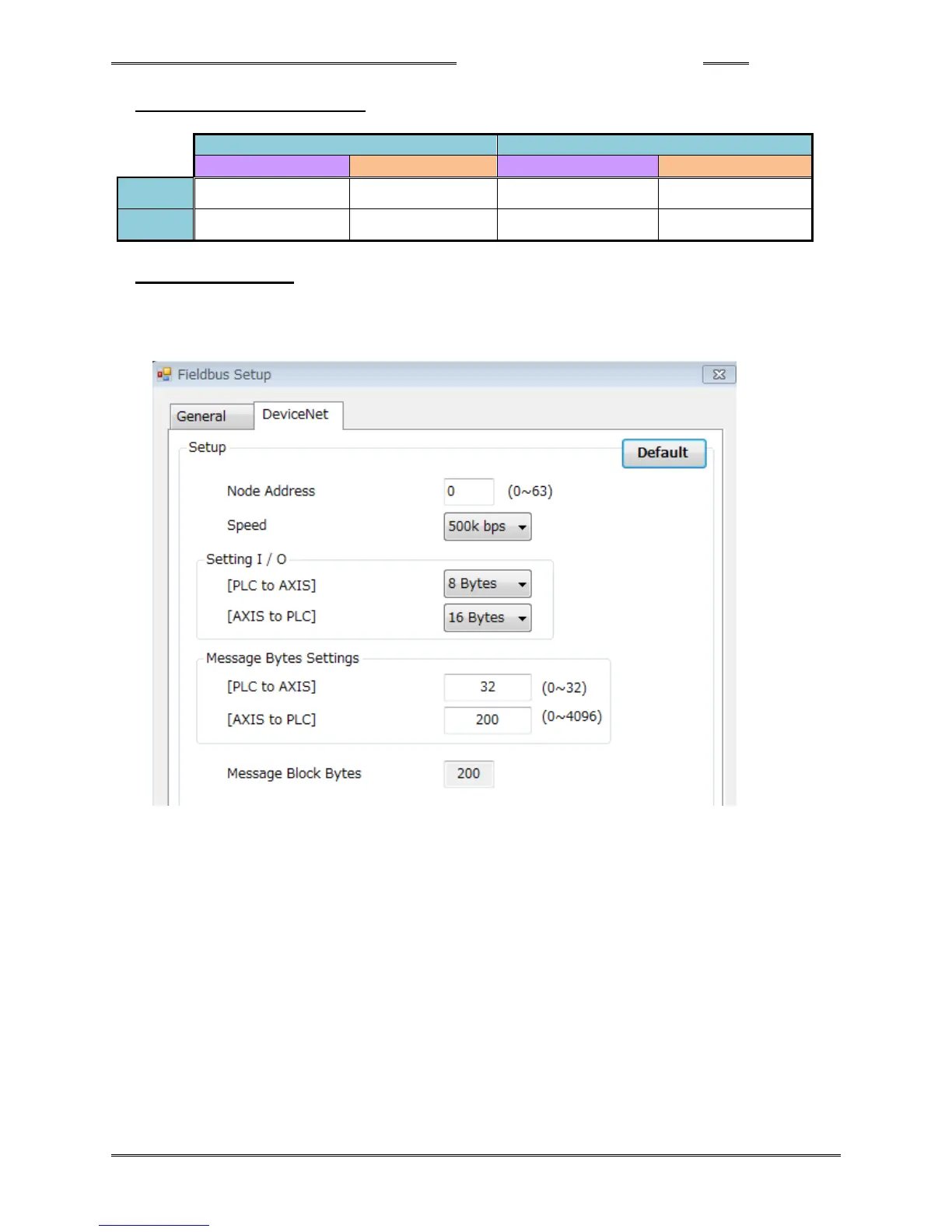

In the Device Net window, setting of the Anybus-CompactCom Device Net is performed.
The communication speed, the node address, the I/O settings, and the message settings can be changed.
●Default (the settings are set to the factory settings)
･Node Address:0 ･Speed: 500k bps
･Setting I/O [PLC to Axis]: 8bytes[64bits]
･Setting I/O [Axis to PLC]: 16bytes[128bits]
･Message Bytes Settings[PLC to Axis]: 32bytes
･Message Bytes Settings [Axis to PLC]: 200bytes
* Message Block Bytes is fixed at 200 bytes.
●Node Address
Setting range: 0 ~ 63
●Speed
Setting range: 156kbps, 250kbps, 500kbps
