22
Connectors, Indicators, Controls, and Jumpers
SS2000+ Series C
Federal Signal www.fedsig.com
Setting the Levels
Setting the Transmit Levels
To set the levels on the SS2000+:

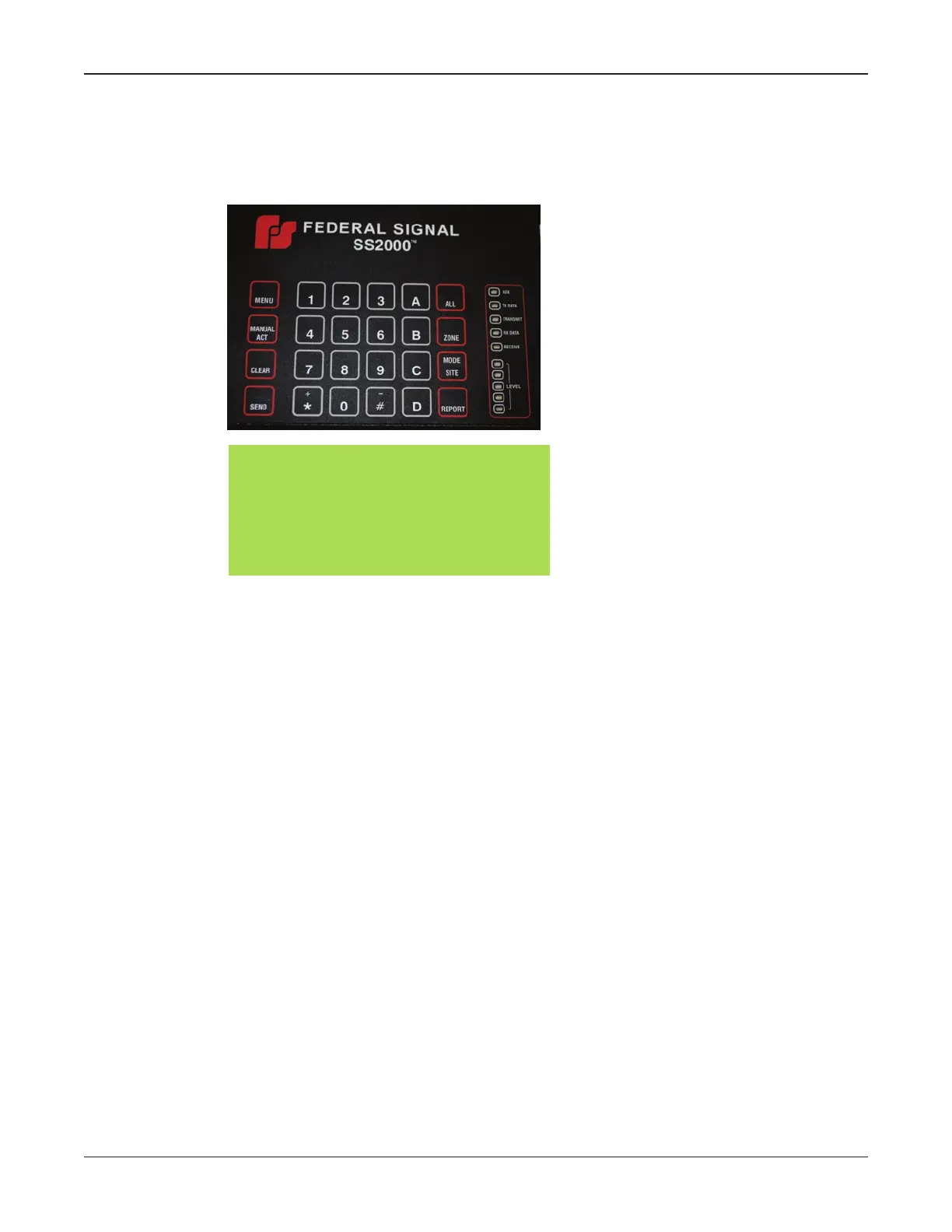

1. On the SS2000+, press the MENU button.
1. Printer Status
2. Send Calibrate
3. Set Date and Time
4. Test Mode
2. Press 2 to send calibrate.
3. Press the SEND button to generate a calibration tone from the SS2000+.
4. Using V2, set the Transmit Audio output level for 1.5 kHz (3 kHz for wideband)
deviation from the transmitter.
5. Confirm that the first three LEDs on the LEVEL display are on.
6. Choose one of the following:
a. Using a local microphone;
While holding the microphone against the lower lip and speaking in a normal
voice, hold the word four while adjusting V4 until 4 to 5 LEDs on LEVEL display.
b. Using an external balance microphone;
While holding the microphone against the lower lip and speaking in a normal
voice, hold the word four while adjusting V8 for 4 to 5 LEDs on the LEVEL display.
c. Using line inputs;
Activate the Line input’s PTT line and inject an audio signal.
Adjust V6 for the level of Line Input #1 or V7 for the level of Line Input #2 for 3 to
4 LEDs on the LEVEL display.
