Installing the SSLoader+ Software

Description, Specications, SSLoader + Software, and Operation Manual

Federal Signal www.fedsig.com

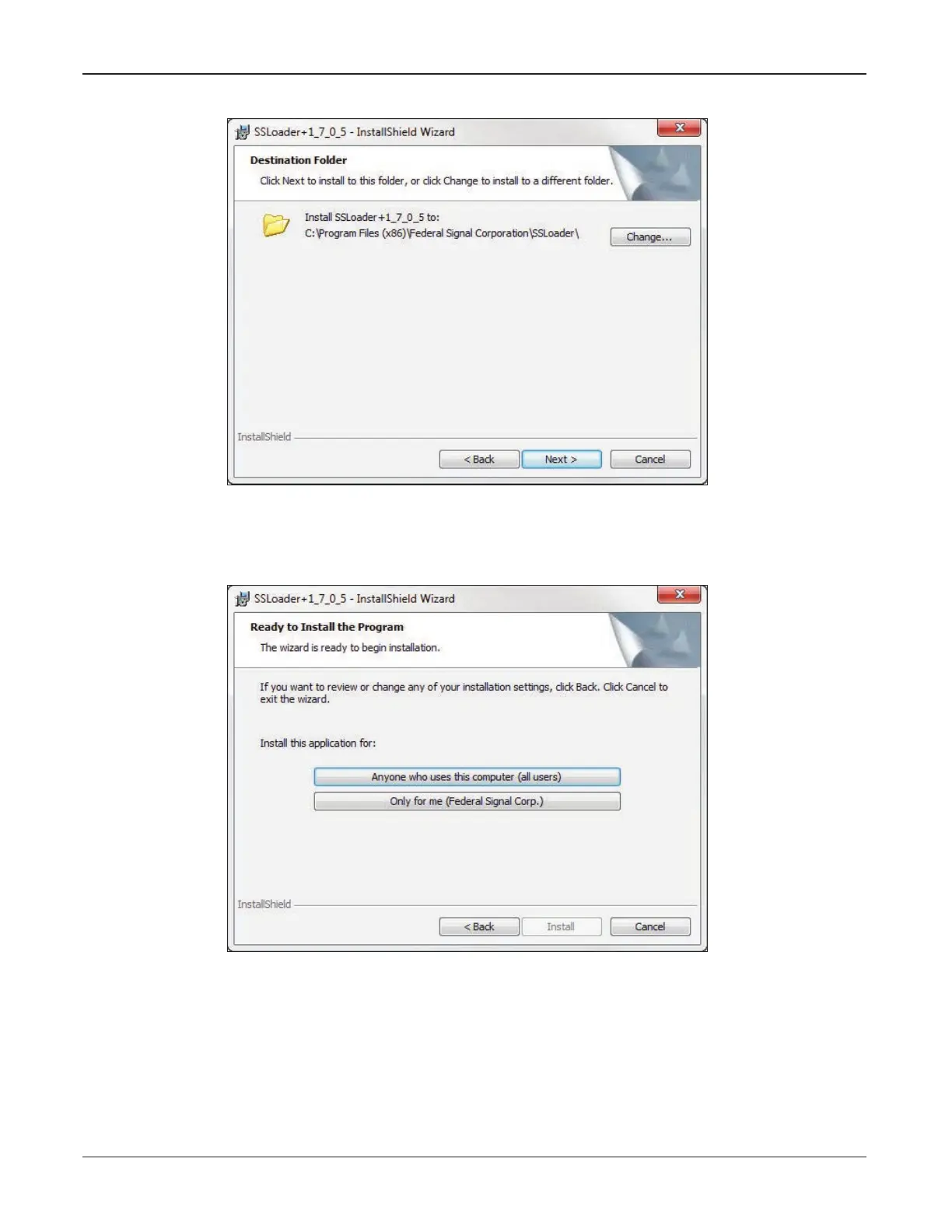

The following dialog appears.

6. Click Next to install to this folder or click the Change button to install to a dierent

folder.

The following dialog appears.

7. Click either the Anyone who uses this computer button or the Only for me button.

Default Chapter3
- Table of Contents3
Safety Messages7
General Description9
- Introduction9
- Features9
- Ordering Information12
Table 1 Ordering Information12
Table 2 Product Specifications13
Specifications13
Table 3 Connectors15
Figure 1 Drawing of the Back of the SS200015
Connectors, Indicators, Controls, and Jumpers15
- Figure 2 Back of the SS200016
- Table 4 Remote Activation Inputs17
- Indicators18
- Setting the Levels22
  - Setting the Transmit Levels22
  - Setting the Receive Level23
- Connecting the Relay Outputs (TB1)23
- Connecting the Remote Activation Inputs (J1, J2, J3, J4)23
Figure 6 Connecting the Relay Outputs (TB1)23
Figure 7 Connecting the Remote Activation Inputs (J1, J2, J3, J4)23
Installing the Ssloader+ Software24
- Operating Requirements24
- Programming the SS200024
- Installing the Ssloader+ Software25
- Describing Ssloader+ Software29
- Table 9 Ssloader+ Icons29
- Reading INI File from SS200030
- Uploading INI File to the SS200030
Using the Ssloader+ Software31
- Using the General Configuration Tab31
- Using the Activation Function Tab38
  - Activation Function38
  - SS2000+ Activation Button Numbering44
SS2000+ Hotkey Activation45
- Unlocking the System45
- Automatic Logging45
- Communication Mode46
- Encoding48
- Manual Activation50
- Menu Selection52
Web Browser Activation54
- Logging in the Web Interface54
- Changing the Network Settings56
- Configuring the RTU Settings57
- Configuring the User Setup61
- Uploading Firmware63
- Rebooting Device and Loading Configuration Settings64
- Restoring Configuration to Factory Defaults65
- Activating the System66
- Logging out of the Web Interface67
Table 10 Replacement Parts67
Replacement Parts67
Getting Service67
Table 11 Coil Registers (1-9999) Read -Write68
Table 12 Analog Output Holding Registers (40001-49999+) Read-Write68
Appendix A Modbus Activation68
- Notes68
Table 13 SS2000+ Network Configuration69
Appendix B Forms69
Table 14 Network Device70
Table 15 Network Device71
Table 16 Digital Voice Messages72
Table 17 Programed Functions73
Table 18 Programed Zones74
Table 19 Programed Activation Templates75
Table 20 Input Programming SS200076
Table 21 Hot Keys77
Table 22 SS2000+ Input Configuration79
