4.6 Mount the board variant (TST FUxF-xPR) in a steel housing
The illustrations are exemplary. Other housing variants may differ.

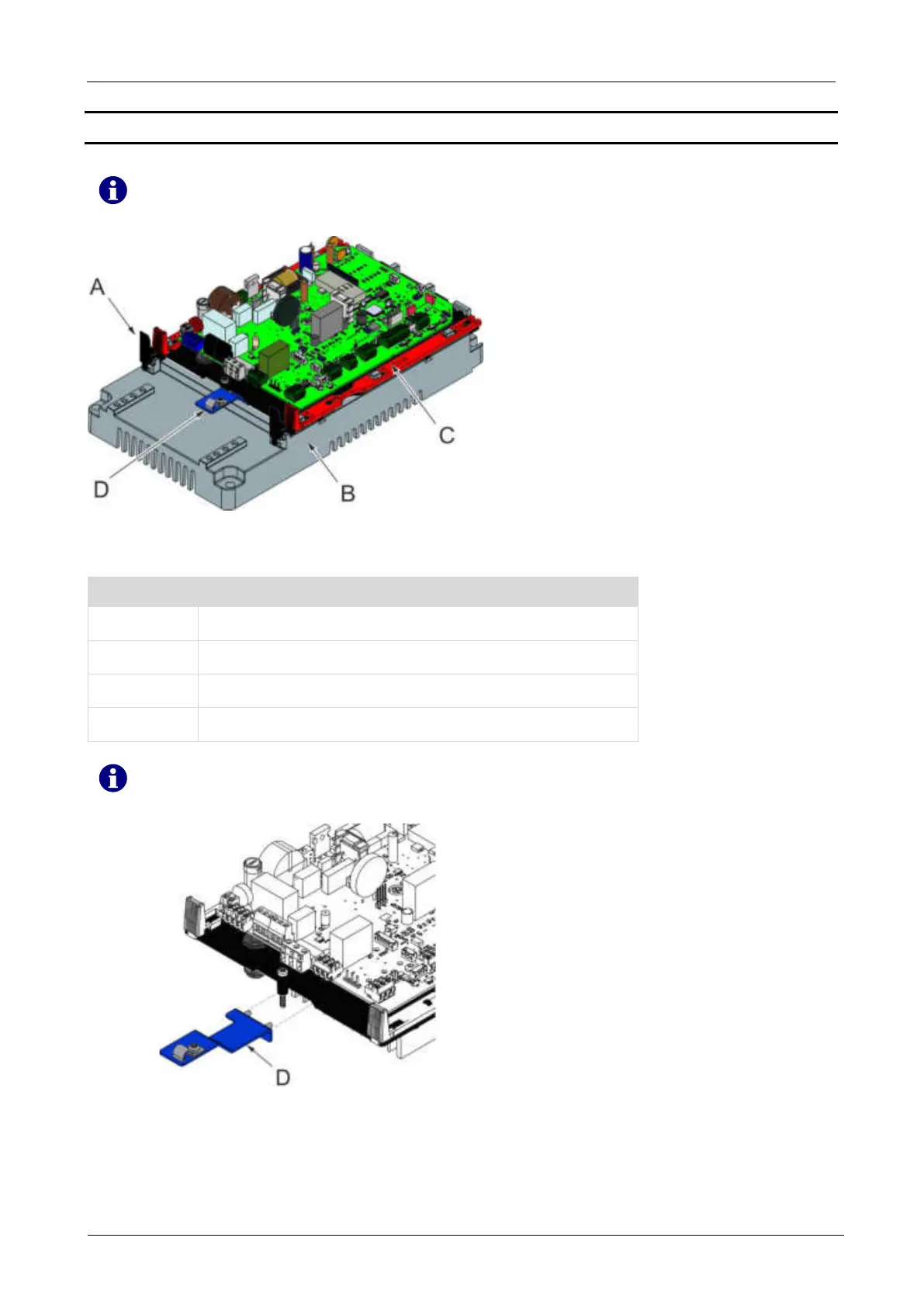

Fig. 1: Board variant on the mounting adapter
Position
Description
A
Safety clips for transport
B
Mounting adapter for the board variant
C
Slider for fixing the board variant
D
EMC bracket for steel and stainless steel housing
Requirements for mounting in steel and stainless steel housing
Attach the EMC bracket to the heat sink of the board variant!
