6.3 Induction loop detector VEK MNST1/2/3/4
The induction loop detector VEK MNST1/2/3/4 is a system for the inductive detection of vehicles. It
can evaluate up to 4 inductive loops:
Table 3: Pin assignment VEK MNST1/2/3/4
Induction loop detector
VEK MNST1
VEK MNST2
VEK MNST3
VEK MNST4
Loop channel
1
2
3
4
Connection X3/Pin
1.1-1.2
2.1-2.2
-
-
Connection X4/Pin
-
-
3.1-3.2
4.1-4.2
X1
X2
X3
X4
1.1 1.2 2.1 2.2
3.1 3.2 4.1 4.2

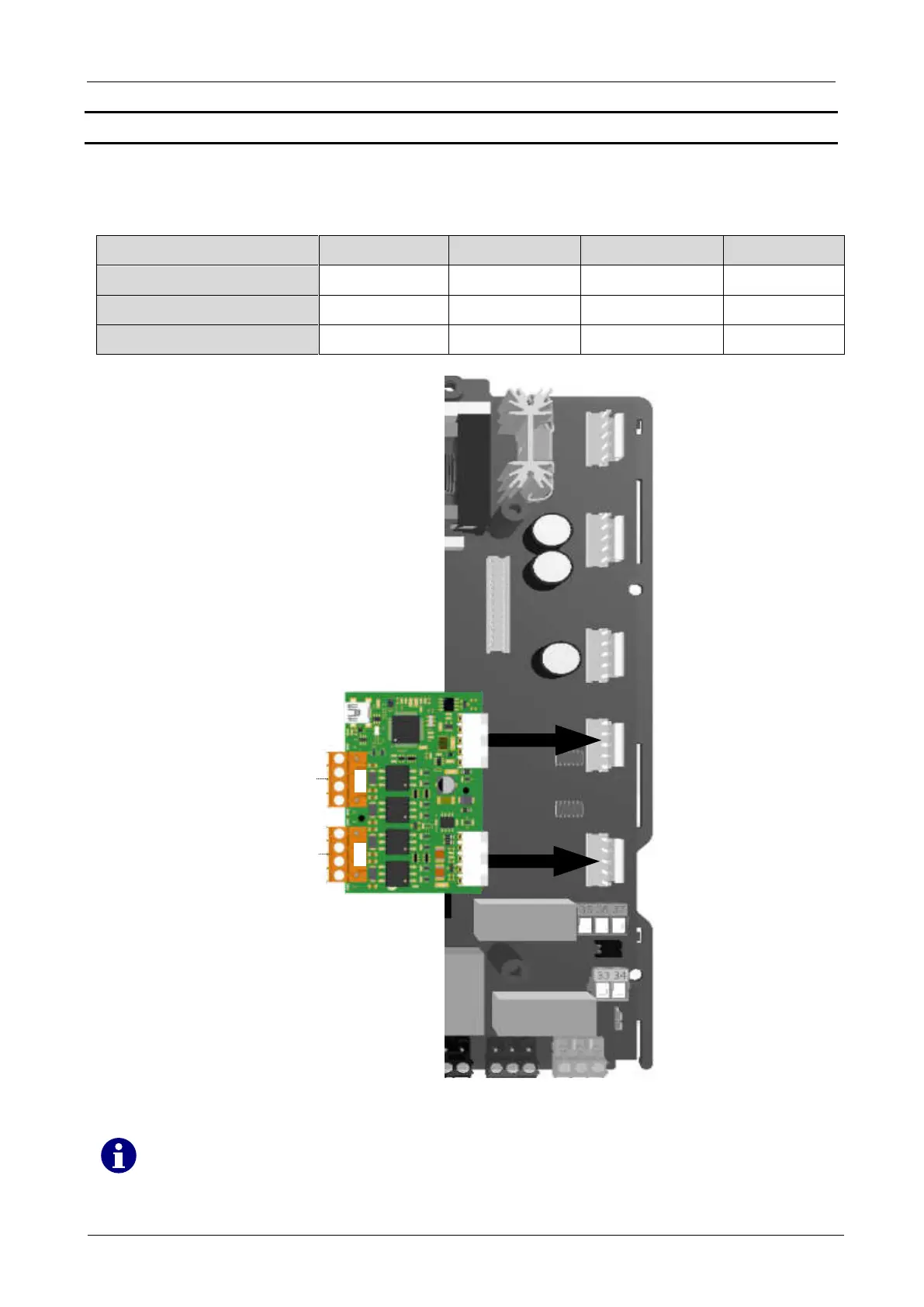

Figure 36: Sample connection to VEK MNST4
To activate the slot for the detector, parameter P.803 must be set to 0400.
