5.1 Power supply connection
The illustrations are exemplary. Steel and stainless steel housings may differ.
5.1.1 TST FUF2
PE
NL
P
E
N
L
fuse 16A / K- Type
NL
PE

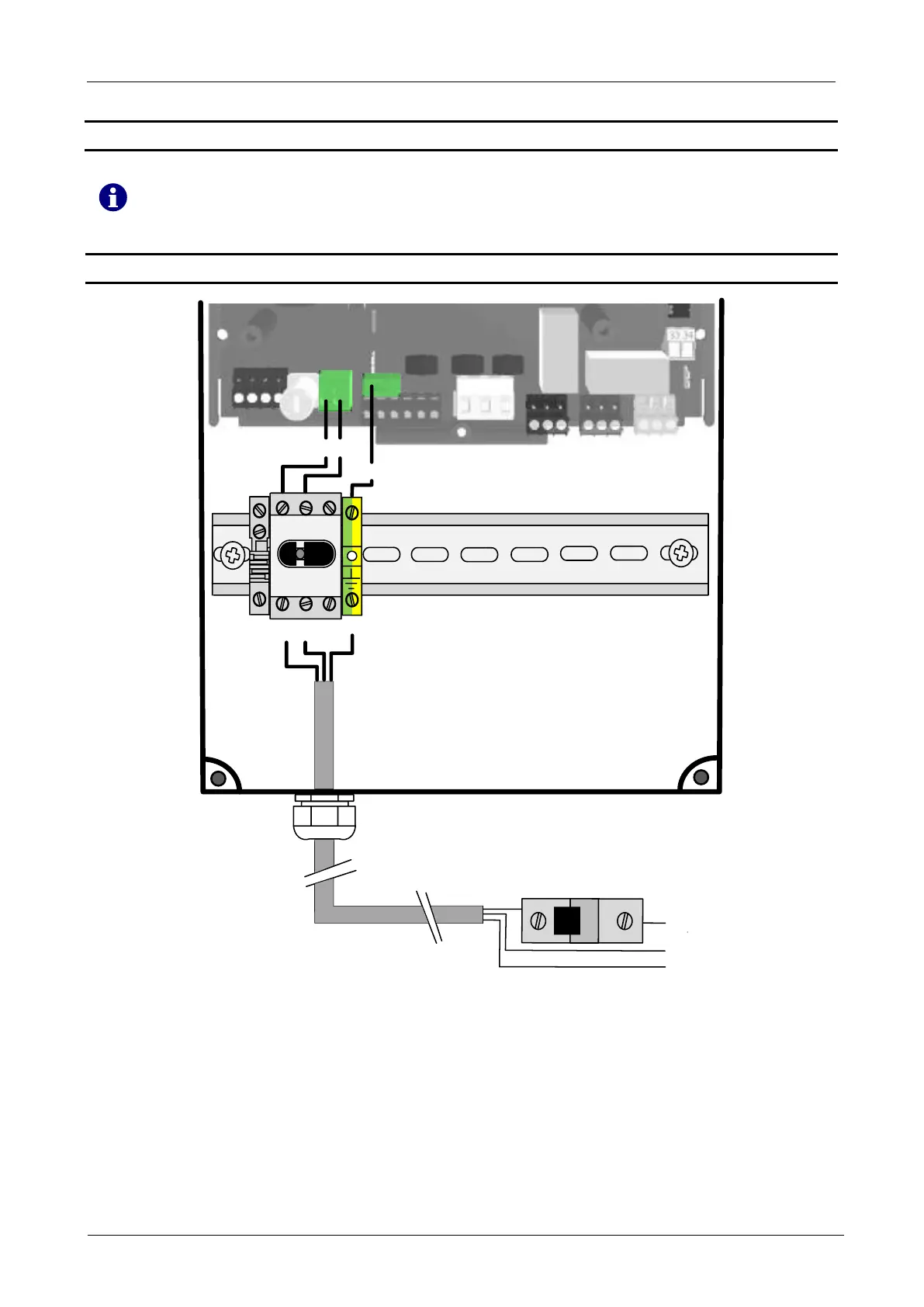

Figure 10: Connecting the power cable
