Feig Electronic TST FU3F-A - Overview of Controller Inputs

TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 57 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
5.11 Overview of inputs
86 - Output 26: +24 V test, max. 120 mA 85 - Input 7: Manual / automatic 84 - GND 83 - +24 V
82 - Input 6: Permanent OPEN 81 - GND 76 - Output 25: +24 V test, max. 120 mA 75 – Input 5: Photo eye
74 - GND 73 - +24 V 72 – Input 4: Pull switch (Open & Close)
71 - GND 66 - Output 15: +24 V test, max. 120 mA 65 - Input 10: Disable auto close time 64 - Input 9: Deactivatieon intermediate stop
63 - GND 62 - +24 V 61 - Input 8: Locking end. CLOSE
54 - Input 3: CLOSE 53 - Input 2: STOP 52 - Input 1: OPEN 51 - +24 V
45 - +12 V
44 - GND
43 - Safety edge Safety edge Closing
42 - E-stop 1
41 - E-stop 1
36* - GND
35* - Channel B
34* - Channel A
33* - +12 V
32* - E-stop 2
31* - E-stop 2
10
9
8
7
6
#
5
#
3 / blue
2 / white
4 / black
1 / brown
3
2
4
6
5
1
#
Only with TST PE_FSBS
94 - GND 93 - Input 12: Open command from outside 92 - Input 11: Open command from inside 91 - +24 V
NA1 - internal E-Stop
NA2 – for example "mushroom button"
GND
CAN Low
CAN High
+24 V

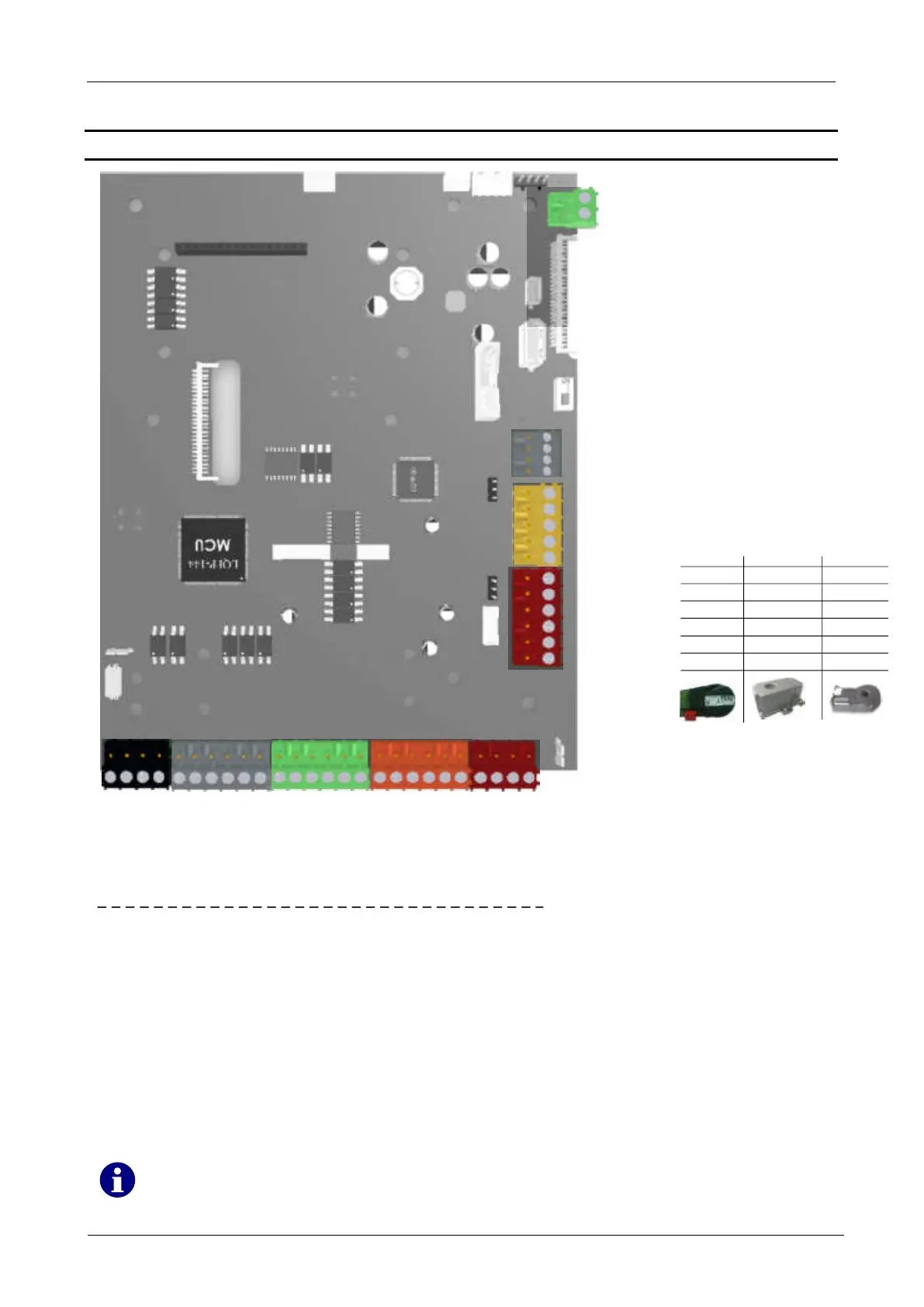

Figure 33: Inut Overview
Remove the connection of mechanical limit switches, please refer to section
Mechanical limit switches.
