3.2 ASSEMBLY INSTRUCTIONS
3
3.2.4.1 SHEET METAL PANEL INSTALLATION
3.2.4.1.3

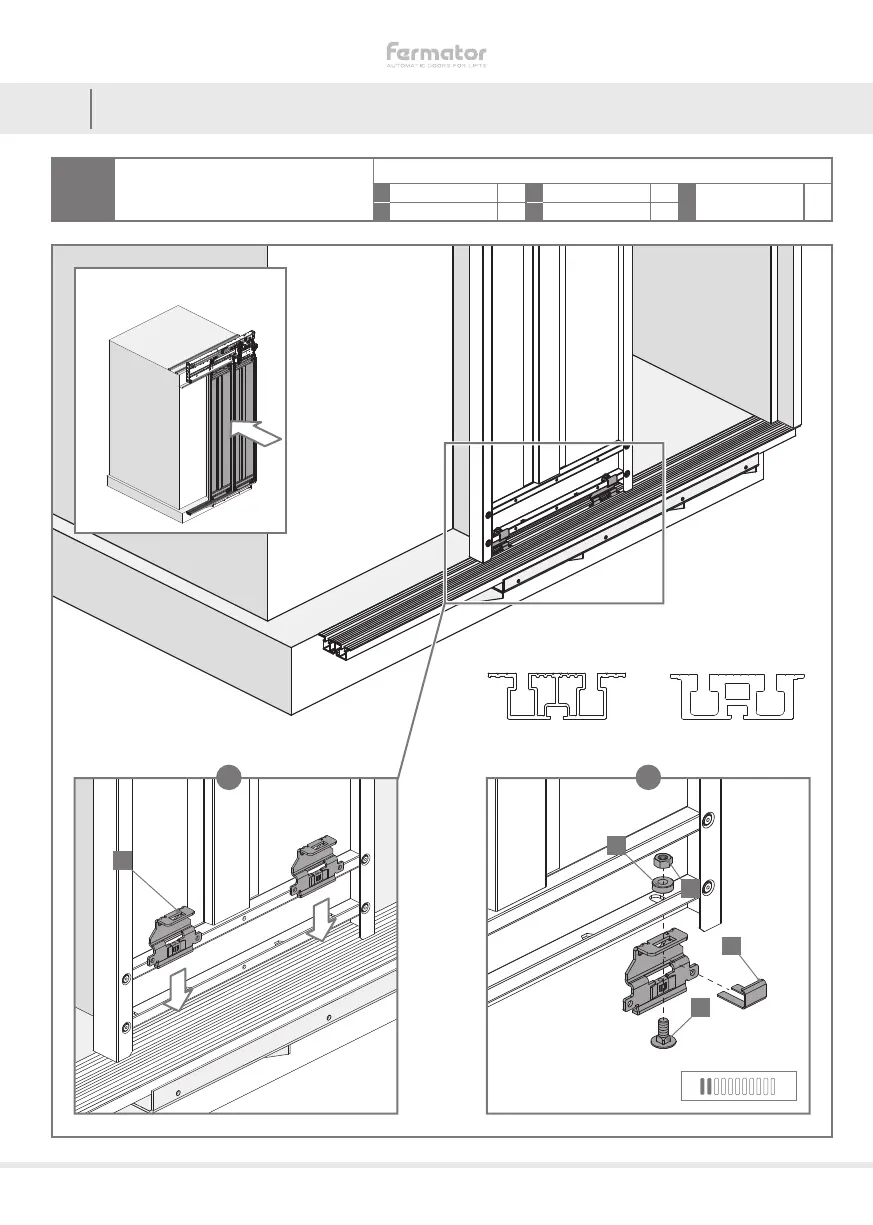

Follow the illustrations below to
assemble the guide shoes, but do not
tighten them.
ACCESSORIES PER PANEL
E 8 mm guide shoe x2 G M8 DIN 934 x2
I Antiturn x2
F M8 x 20 DIN 603 x2 H Separator x2
AIM
ALUMINIUM 8 mm
RECESS TRACK
REINFORCED ALUMINIUM
8 mm RECESS TRACK
