80
MOD MC PREMIUM PM
+
-
J
1
2
K
L
M
3.2.4.1.4

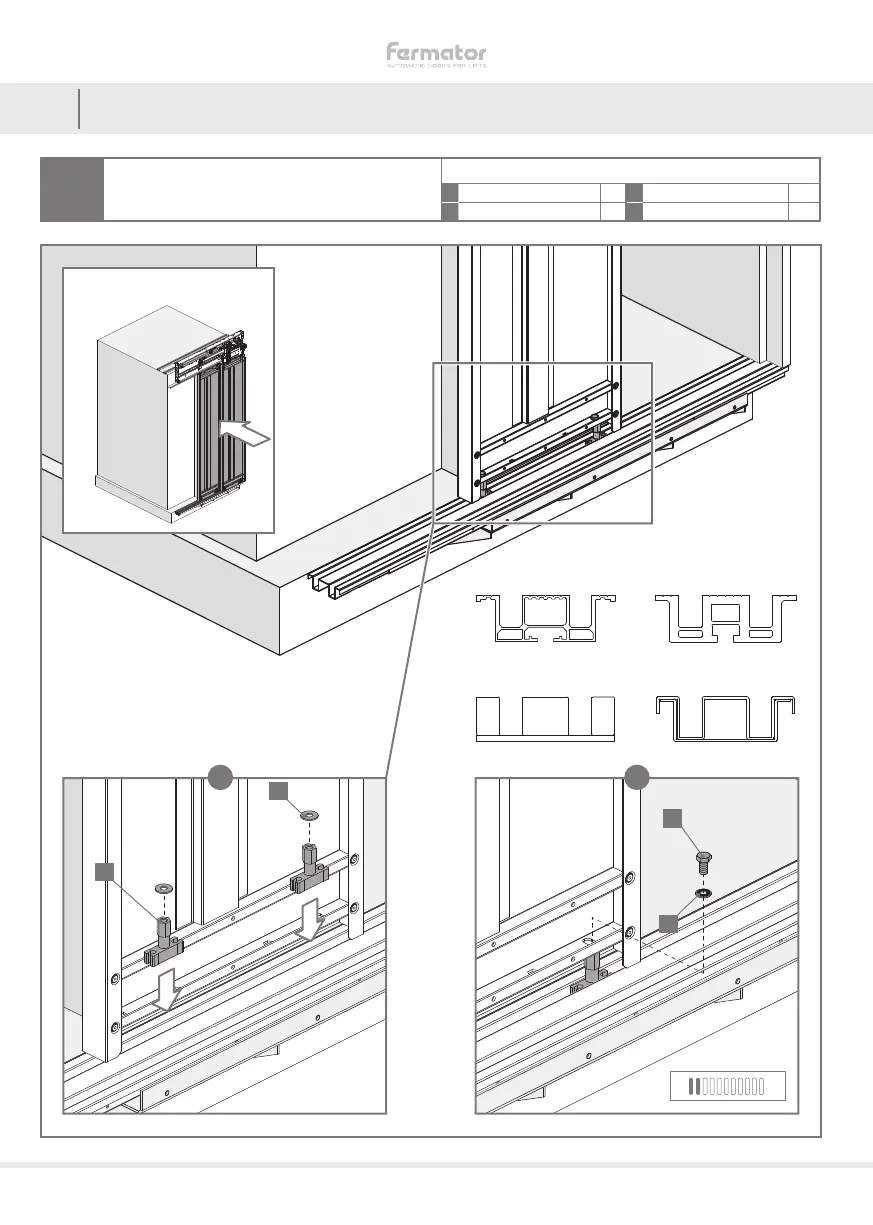

Follow the illustrations below to assemble the guide
shoes, but do not tighten them.
ACCESSORIES PER PANEL
J 15 mm guide shoe x2 L M8 X 16 DIN 933 x2
K M8 Washer x2 M M8 Contact washer x2
3.2 ASSEMBLY INSTRUCTIONS
3
3.2.4.1 SHEET METAL PANEL INSTALLATION
AIM
MASSIVE
ALUMINIUM 15 mm
TRACK
STEEL
REINFORCED ALUMINIUM
15 mm TRACK
AIM
