Fermax VDS SMILE - CONNECTIONS; WITH 3 WIRES + COAXIAL

Page 19
SMILE Monitor

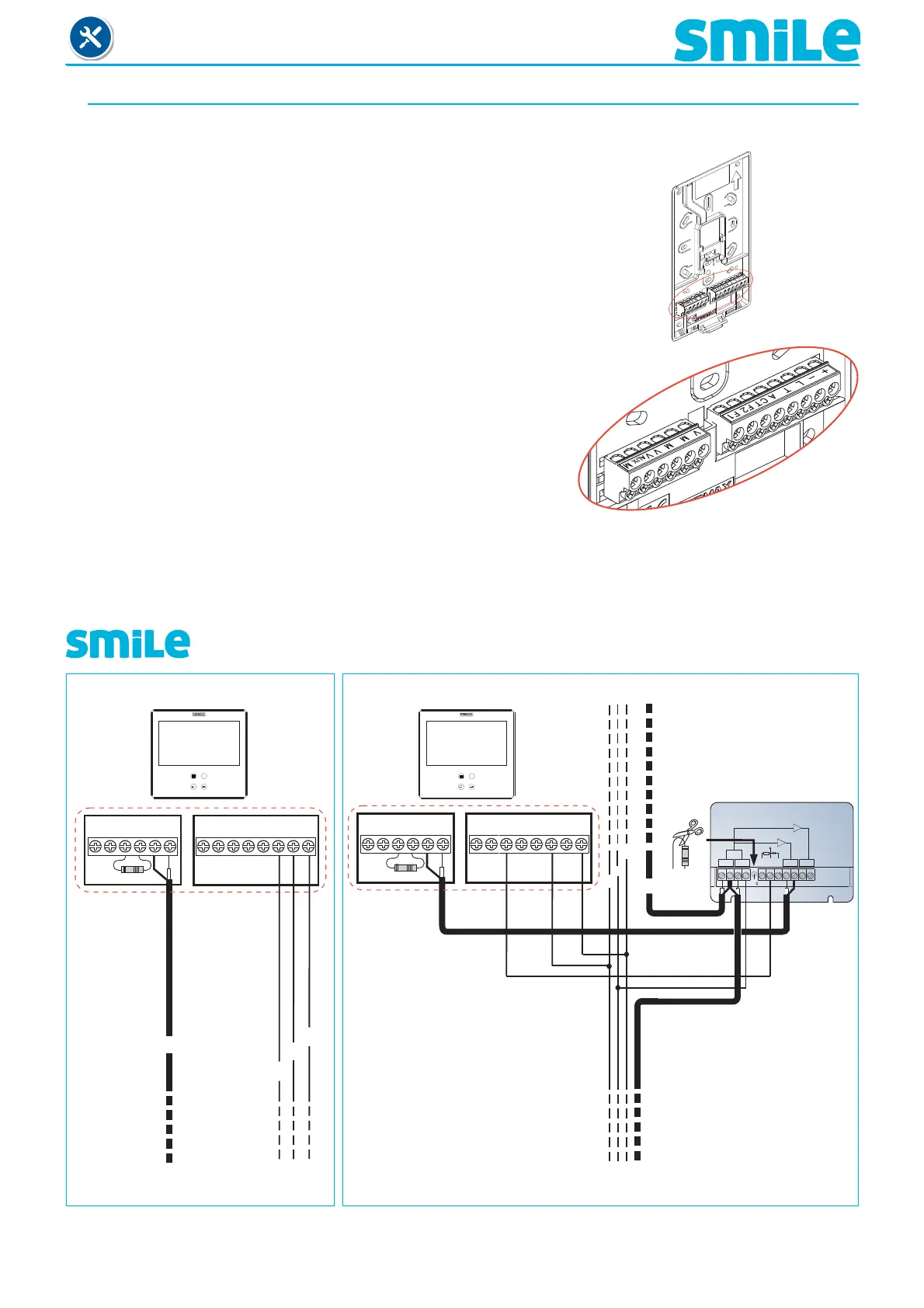

6.3 CONNECTIONS
Video terminals:
V: live
M: mesh
CT: camera activation (12 Vdc)
VAUX: auxiliary video input (CCTV camera connection).
This function is not available at Dominium model.
Connection Terminals:
+, -: 18 Vdc power supply.
L: data bus.
F1, F2: additional functions See programming chapter.
T, -: Call Button Connection for Residential Door (doorbell)
+A, -: Call extension connection ref. 2040, light and bell
activator ref. 2438, etc....
MONITOR CONNECTOR
a) With 3 wires + COAXIAL.
L
+
-
+F2
T
+ A
L-F1 CT
VMMVMV
AUX
75 Ohm
COAX
2 OUTPUTS VIDEO DISTRIBUTOR
DISTRIBUIDOR VIDEO 2 SALIDAS
V
5
V
1
M
+18
75
M
R1
34
+
V
2
REF.2448
6
VM M
(-)
L
+
-
R
+F2
T
+A
L-F1 CT
VMMVMV
AUX
75 Ohm
COAX
