Fermax WAY SLIM User Manual

-2-

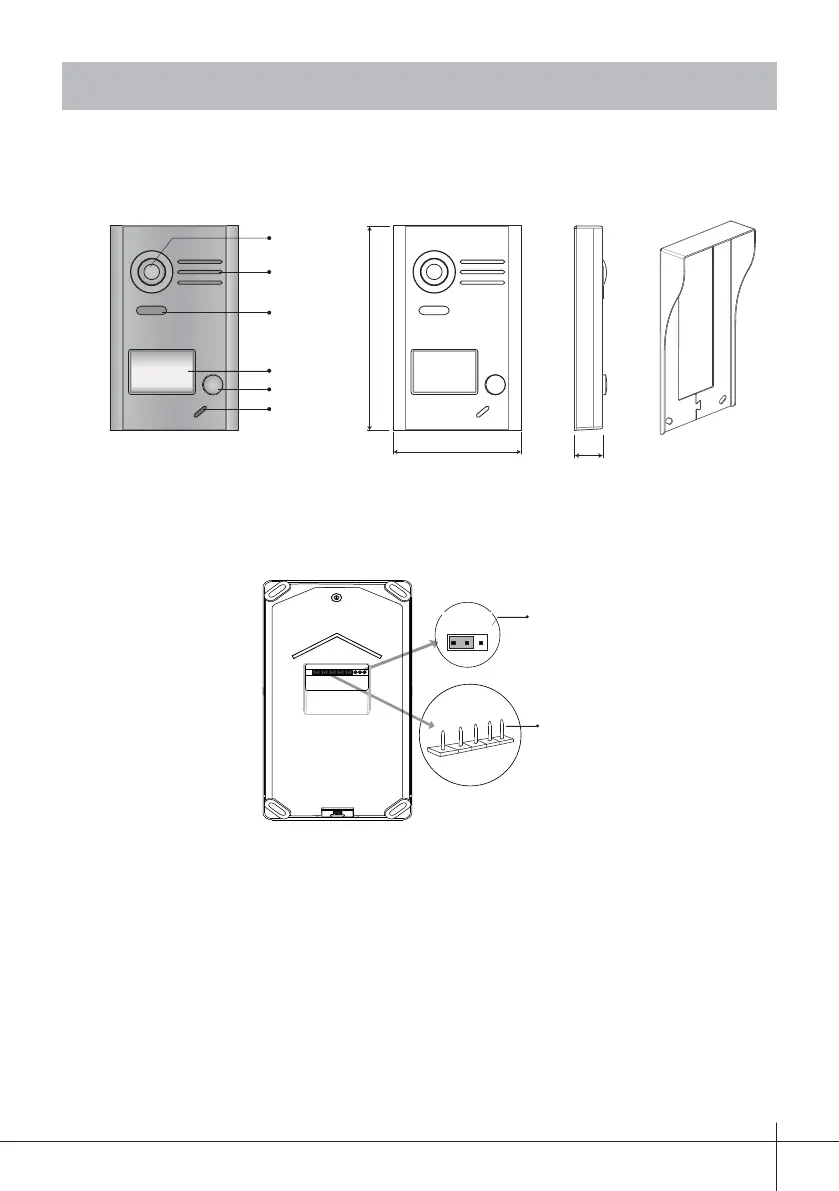

2. Outdoor Station
Camera Lens
Speaker
Nameplate
Call Button
Microphone
Night Light
Rainy Cover
23 mm
90 mm
145 mm
Parts and Functions
Terminal Descriptions
1 2 3
JP/LK
PL
S+
S-
Main Connect Port
BUS
•
JP/LK: Lock control jumper, to select the lock type.
•
Main Connect Port: To connect the bus line and the electronic locks.
•
BUS: Connect to the bus line, no polarity.
•
PL: External lock power input, connect to the power positive (power +).
•
S+: Lock power (+) output.
•
S-: Lock power (-) output, do not connect in case of using external power supply
for the door lock.
Note: For details related to door openers, see chapter 12.2.
1
23
