Fermax WAY SLIM - 11.2 Setting Unlock Parameters; 12. System Wiring; 12.1 System Wiring Overview

-10-
The unlock time can be changed by yourself at any time. It can be set from 1 to 99
seconds.
The code number from 8401 to 8499 are used to set the unlock time to 1~ 99 seconds.
Unlock time:
11.2 How to set the unlock parameter
Door-lock type:
12. System Wiring
BUS(IM) BUS(DS)
PC6
AC~
-
+
L1 L2 PL S+ S-
Doorbell Button
Switch
1 2 3
ON
DIPS
BUS (M)
Monitor
BUS (DS)
Panel
12.1 System Wiring
There are two operating modes:
1. Normal Lock-release:
This allows you to open the door for the time that the lock-release is powered.
2. Inverse Lock-release:
This allows you to open the door for the time that the lock-release is not powered.
Enter code 8010 if the lock-release is to operate normally.
Enter code 8011 if the lock-release is to operate inversely.

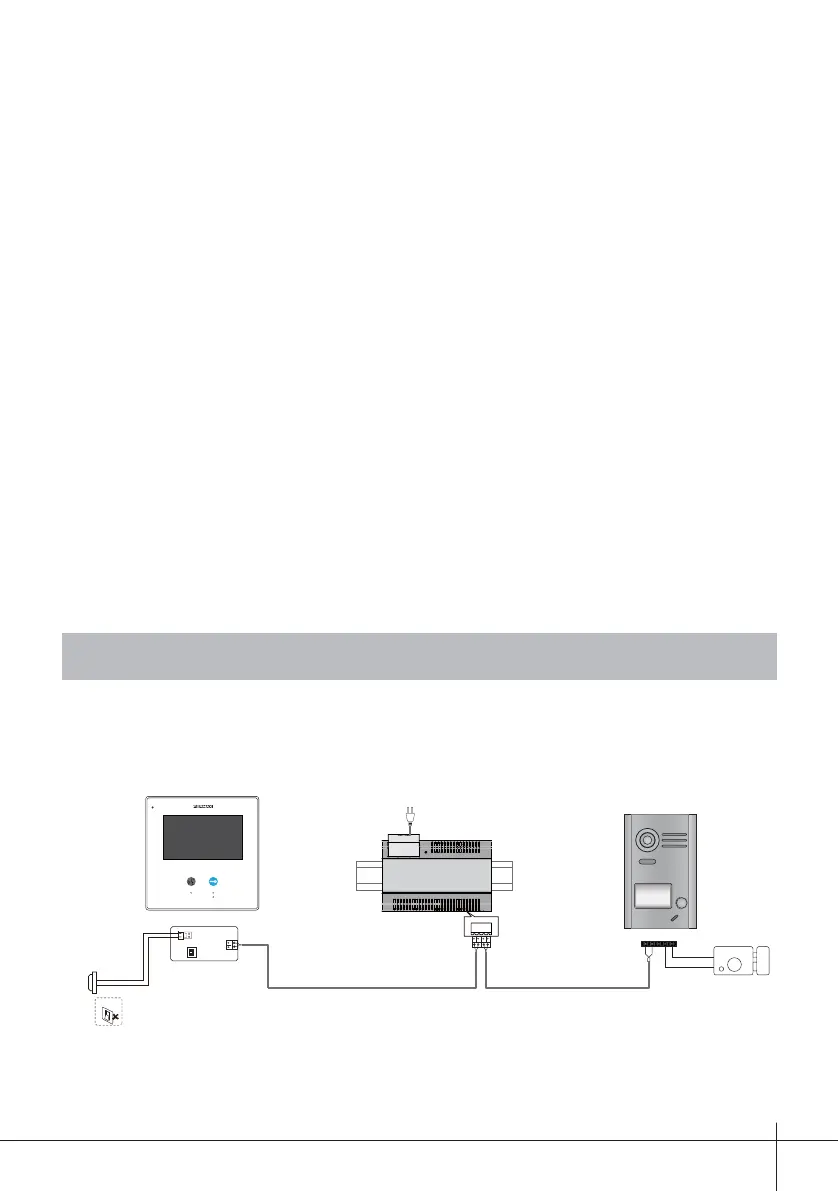

12.1.1 One Way Connection
