-2-

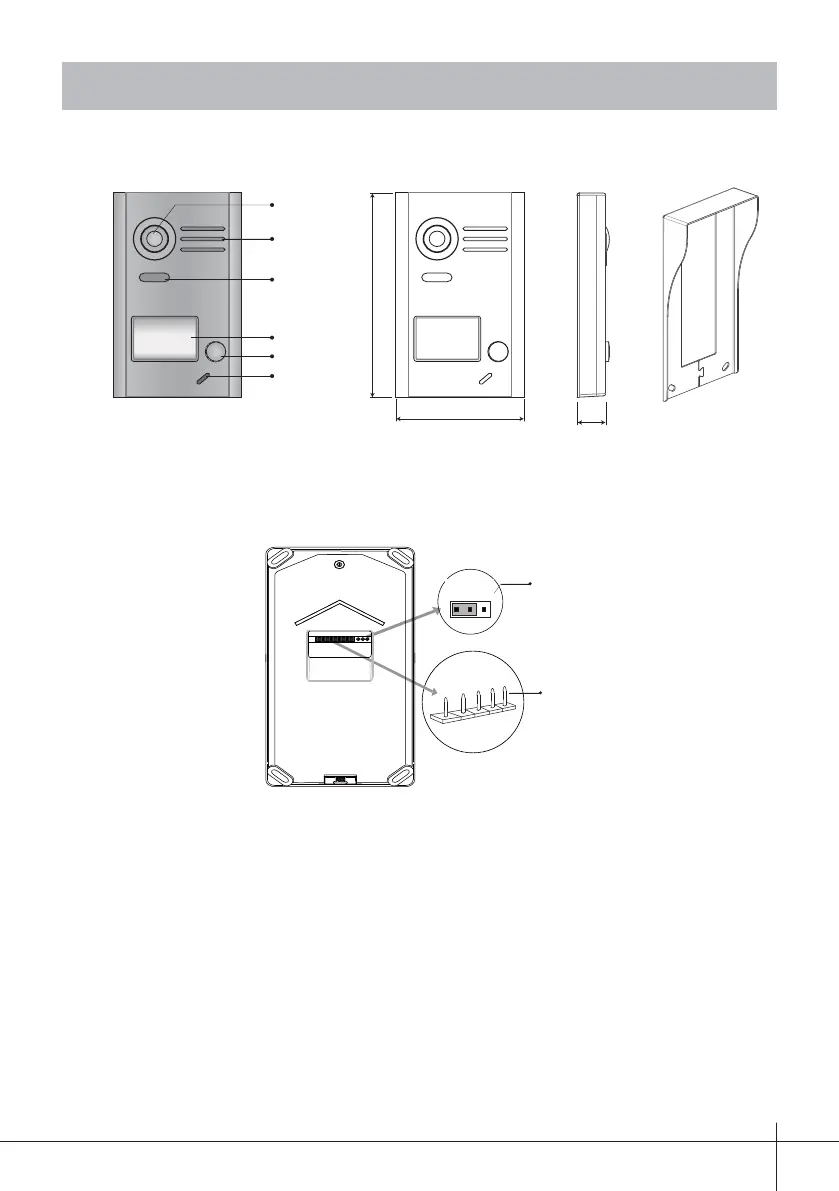

2. Placa
Camera Lens
Speaker
Nameplate
Call Button
Microphone
Night Light
Rainy Cover
23 mm
90 mm
145 mm
2.2 Descripción de terminales
1 2 3
JP/LK
PL
S+
S-
Main Connect Port
BUS
JP/LK: Puente (jumper) para seleccionar el tipo de abrepuertas*.
Conexión de pines principal: Para conectar el bus y el abrepuertas*.
BUS: Conexión del bus (alimentación, datos, audio y video), sin polaridad.
PL: Conexión de abrepuertas a través del relé libre de potencial.
S+: Conexión (+) abrepuertas*.
S-: Conexión (-) abrepuertas*. Esta borna no se conecta si se alimenta el
abrepuertas* con una fuente de alimentación externa.
Cámara
Tarjetero
Leds
iluminación
nocturna
Altavoz
Llamada
Micrófono
JP/LK
Conexión de pines principal
Nota: Para todos los detalles relacionados con abrepuertas ver capítulo 12.2.
Visera
(protección lluvia)
1
23
2.1 Botones y funciones
