2.6.2 Network connections

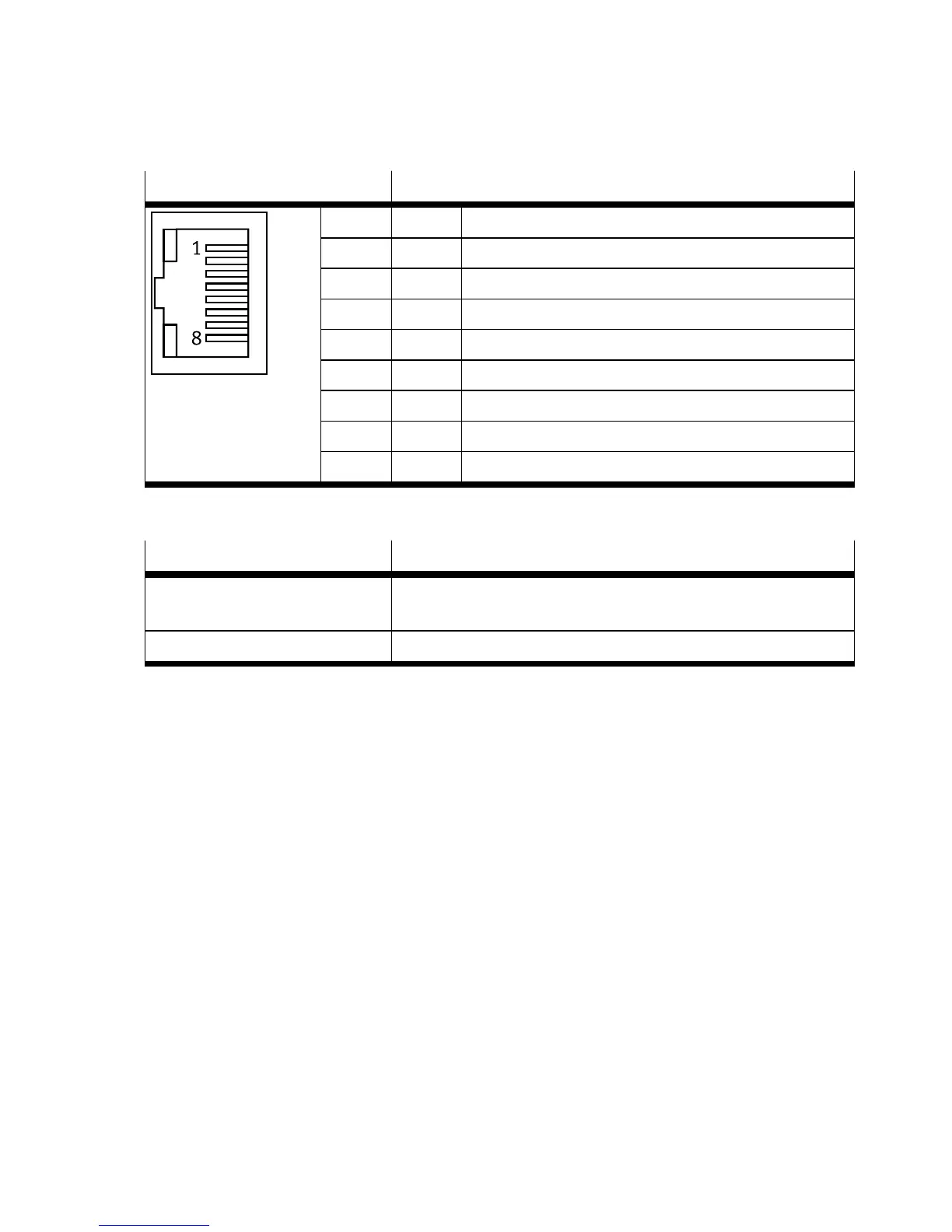

Connection [ETH], [EC] Signal
1 TD+ Transmitted data +
2 TD– Transmitted data –
3 RD+ Received data +
4 n.c.
–
5 n.c.
–
6 RD– Received data –
7 n.c.
–
8 n.c.
–
1)
Shield Functional earth
1) Housing
Tab. 7 Connection [ETH], [EC]
Connection Function
[ETH] Ethernet interface for the connection of a programming device,
PC or operating unit CDPX
[EC] EtherCAT master
Tab. 8 Network connections
2.7 Additional functions
2.7.1 FTP server
The controller provides an FTP server.
Data can only be accessed via the directory: /mnt/ftp.
2.7.2 Web server
The integrated web server provides read access to the key parameters and diagnostic functions of the
automation system CPX-E è 2.8.3 Diagnostics via web server.
2.7.3 Temperature sensor
The controller has a sensor to measure the internal temperature.
Reading the current temperature:
– via CODESYS using the function block "GetTemperature" èFesto_General_3 library
– via the web server of the controller – menu [System] [Information]
è 2.8.3 Diagnostics via web server
2.7.4 Real-time clock
The controller has a real-time clock, which can be set or read with the aid of CODESYS function blocks:
– for run-time of CODESYS projects èCODESYS SysTimeRtc library
– in online mode with the aid of the PLC shell èCODESYS V3
Function
