This manual contains information about the following
module:
EtherCAT bus
node
Type
designation
Description Connection technology
CTEU-EC Ethernet-based bus node for
EtherCAT
The EtherCAT field bus
technology uses the Ethernet
standards for real-time
communication in an industrial
environment.
Data transmission:
– Ether CAT, based on the Eth-
ernet protocol (IEEE 802.3),
optimised for process data,
real-time capable
– Transmission of process
data in the Ethernet
framework
– Industrial Ethernet,
Switched Fast Ethernet,
100 Mbit/s
Standards and norms
containing reference to
EtherCAT:
– IEC 61158
– IEC 61784
– IEC 61918
– ISO/IEC 8802-3
Additional information:
http://www.ethercat.org
2xM12socket,
D-coded, fema le, 4-pin, cor-
responding to
I EC 61076-2-101

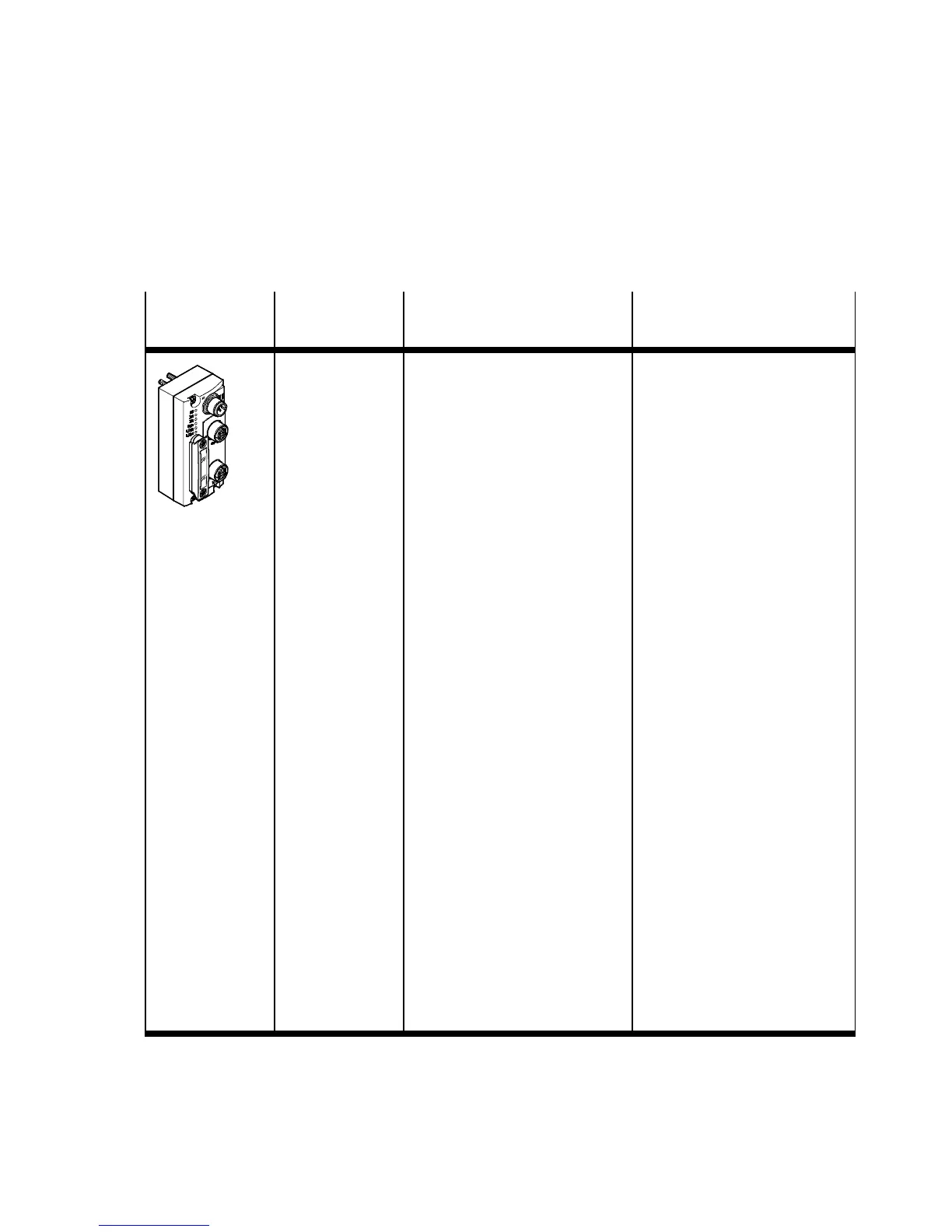

Tab. 0/1: Overview of CTEU bus node for Ethe rCAT
