1.1 General information o n the CTEU product family
The CTEU… product family is used to set up a decentralised
automation system in an EtherCAT fieldbus network.

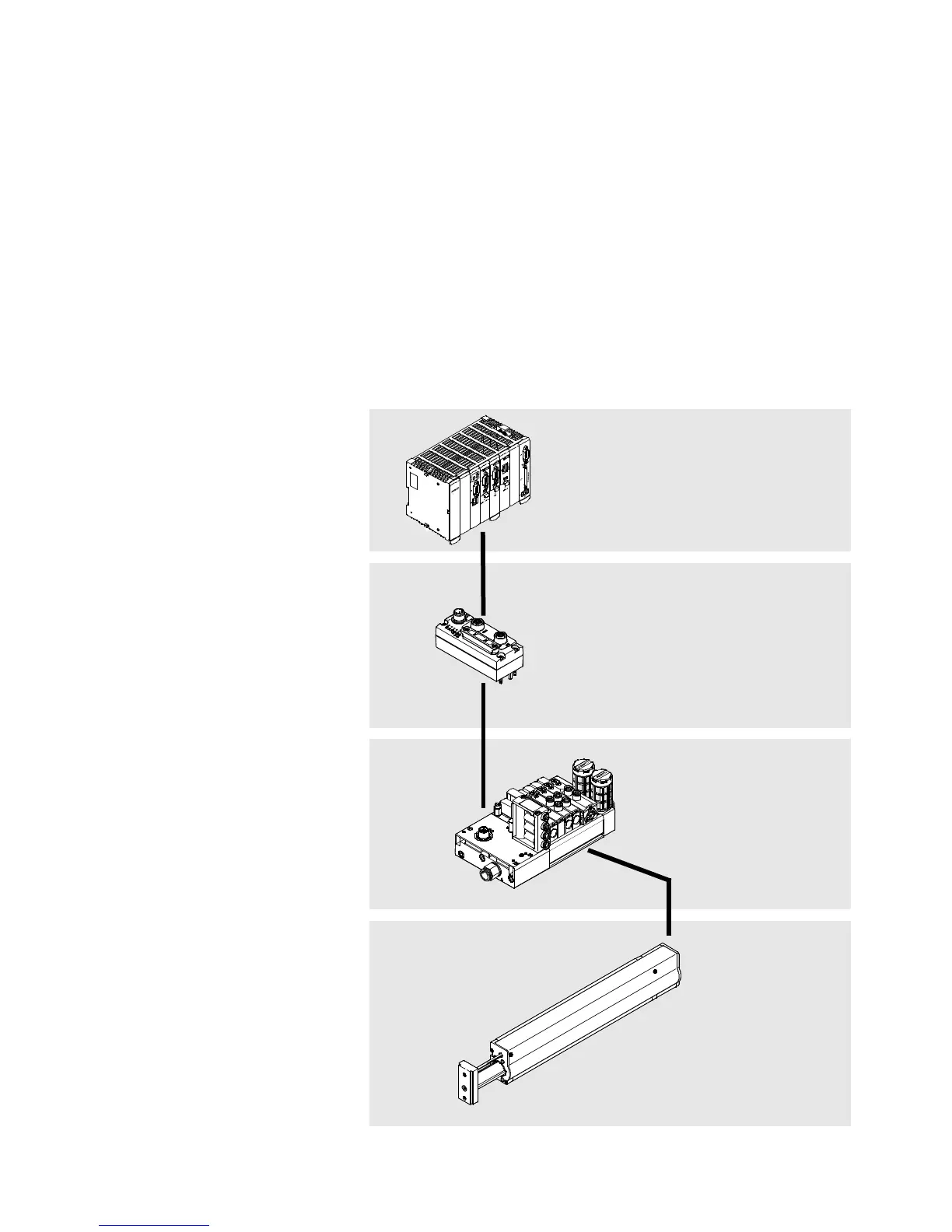

1.1.1 Hardware components
1
Higher-order
controller
(master/PLC/IPC)
2 Fieldbus level:
bus node CTEU
3 Device level:
e.g. valve
terminal VTUB-12
4 Drive level:
e.g. linear
module HME
1
2
3
4
