7Commissioning
Commissioning the complete system
S Slowly pressurize the complete system.
In this way you can avoid uncontrolled
movements. For slow start−up pressuriza
tion, use start−up valve type HEL−.../
HEM−....
Commissioning DGP(L)−...
Warning
S Make sure that:
 nobody can place his/her hand in the path
of the moveable mass (e.g. by providing a
protective grill).
 there are no objects in its path.
It must not be possible to touch the
DGP(L)−... until the mass has come to a
complete stand.
Warning
S Make sure that the positions of the external end stops are not modified
(onlywith DGP(L)−8/12).

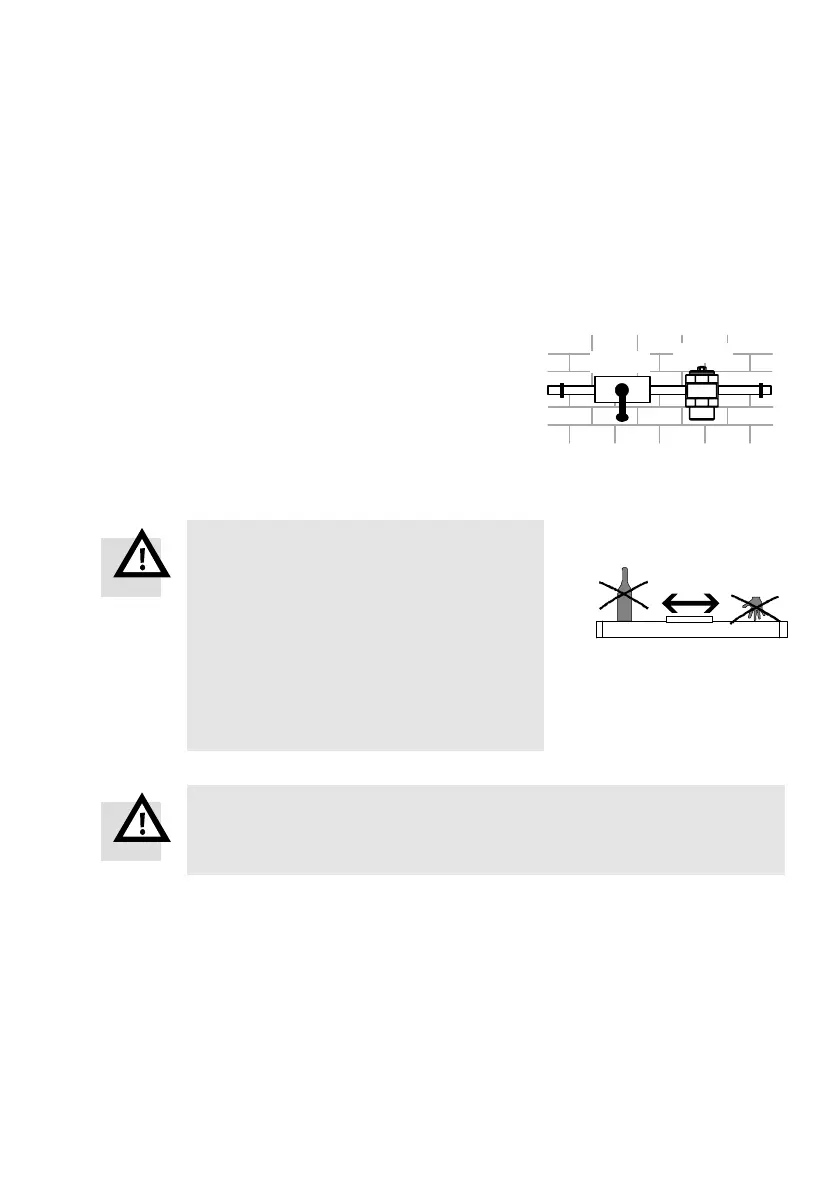

QH−...
HEL−...
Fig.22
Fig.23
