Depending on the size of the work mass, the DGP(L)−... will withstand maximum
speeds in accordance with the following diagram.

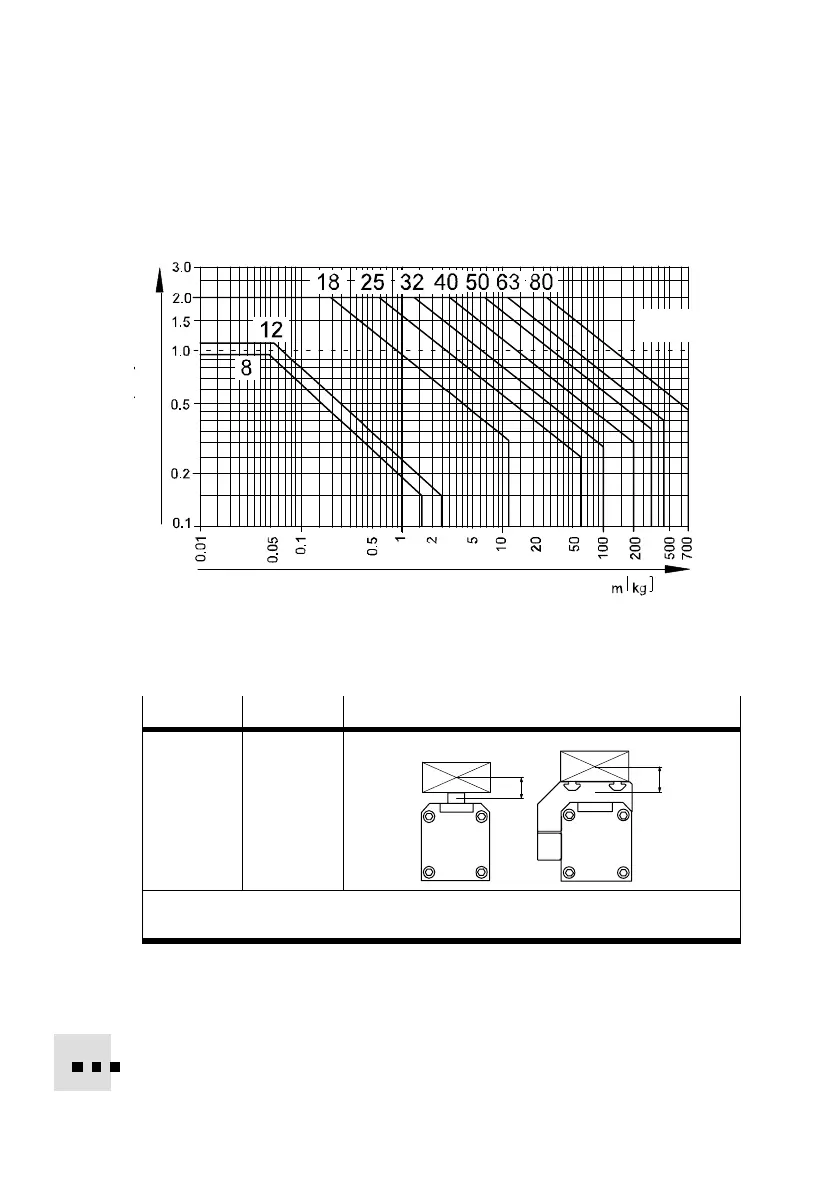

Fig.24: The maximum slide speed values as a factor of the centre of gravity r and the work
load m at 6 bar, 20°C (mounting position: horizontal)
The following centre of gravity distances form the basis of this diagram:
j 8...18 j 25...80
r = 20 mm r = 50 mm
m
m
r
r
m: Work load (fitted above) [kg]
r: Centre of gravity distance [mm]
Fig.25: Centre of gravity distances
With loadings in excess of the specified maximum values:
Use shock absorbers or fixed stops of sufficient size.
v[m/s]
DGPL−...−GF
v
max
= 1 m/s
