Festo MPA Series - Page 110

3. Installation
3−36
Festo P.BE−MPA−EN en 0910d

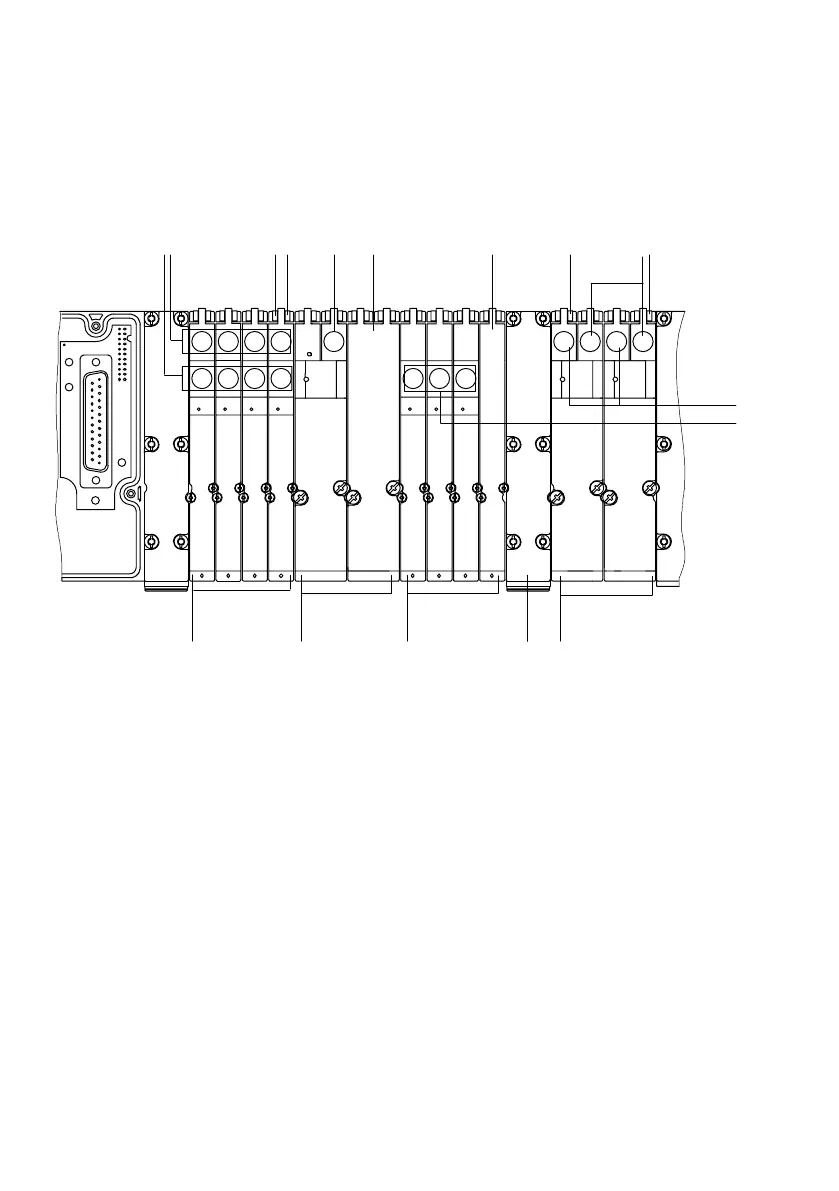

Example of address assignment (seen from above):
2
15 14
17
12 34
7
4
98
35
6
15
2
1
0
13
4
5
6
789
10
11 12 13
16
1
aJ
1 Addresses of the solenoid coils 14
(manual override 14)
2 Addresses of the solenoid coils 12
(manual override 12)
3 LED for solenoid coil 12
4 LED for solenoid coil 14
5 Unused valve position
6 Sub−base with electronic module
VMPA2−MPM−EMM−−4 occupies
twoaddresses per valve location
7 Supply plate for additional pressure
supply
8 Sub−base with electronic module
VMPA1−MPM−EMM−−4 occupies
oneaddress per valve location
9 Sub−base with electronic module
VMPA2−MPM−EMM−−2 occupies
oneaddress per valve location
aJ Sub−base with electronic module
VMPA1−MPM−EMM−8 occupies
twoaddresses per valve location
Fig.3/10: Example: Address assignment of the MPA−S valve terminal with multi−pin plug
connection and 12 valve locations, type MPA...−MPM−... (top view)
