5.3.6 Replacing the sub−base, supply plate or MPA−S end plate
Dismounting Proceed as follows:
1. Loosen the electric and pneumatic connections and
remove the MPA−S valve terminal from its fastening
surface (see Chapter 5.2).
2. Place the MPA−S valve termina l on a flat working surface.
3. Loosen the screws of the component (sub−base, supply
plate or end plate) which you wish to remove in the
sequence 3 2 1 (see diagram).
4. Then remove the screws. The sub−bases are now held
together only by the electrical linking or by the bus.
ÖÖ
ÖÖ
ÖÖÖ
ÖÖÖ
1
2
3

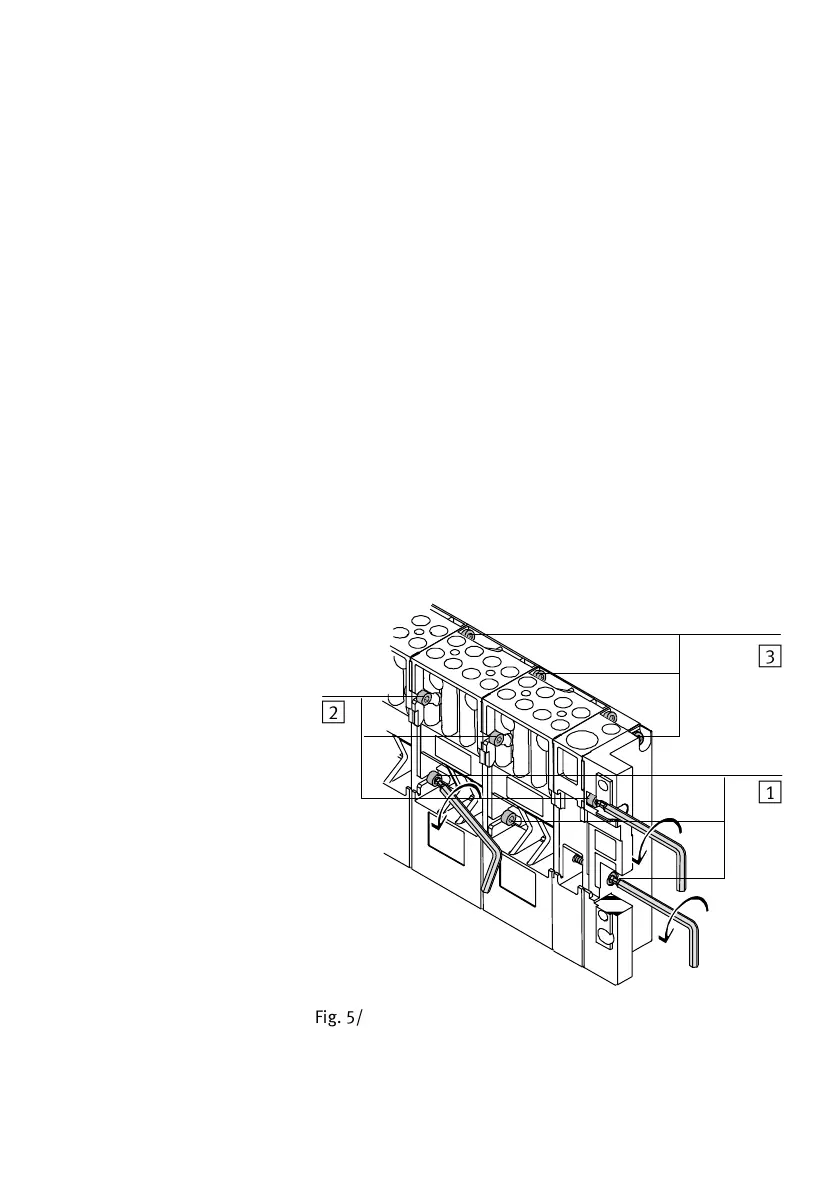

Fig.5/6: Position of the fittings on sub−bases and the
right−hand end plate
5. Pull the relevant component away from the adjacent
component.
