Festo MPA Series - Overview of variants

1. Summary of components
1−5
Festo P.BE−MPA−EN en 0910d
1.1.1 Overview of variants
Sizes of the MPA−S valve
terminal
The valve terminal is available with valves in the following
sizes:
 MPA1: Valves of size 10 mm
 MPA2: Valves of size 20 mm
MPA−S valve terminal with
CPX terminal
This variant of the MPA−S valve terminal is available in the
following grades:
MPA−S valve terminal with CPX terminal
Number of valve positions
1)
Load voltage supply for the valves via ...
 CPX terminal
2)
 CPX terminal and electric supply plate (MPA)
3)
MPA1
4, 8, 12 ... 32
4, 8, 12 ... 64
MPA2
2, 4, 6 ... 16
2, 4, 6 ... 32
1)
Two solenoid coils can be controlled per valve position.
2)
A max. of 64 solenoid coils can be supplied.
3)
A max. of 128 solenoid coils can be supplied.
Tab.1/1: Number of valve locations of the MPA−S valve terminal with CPX terminal

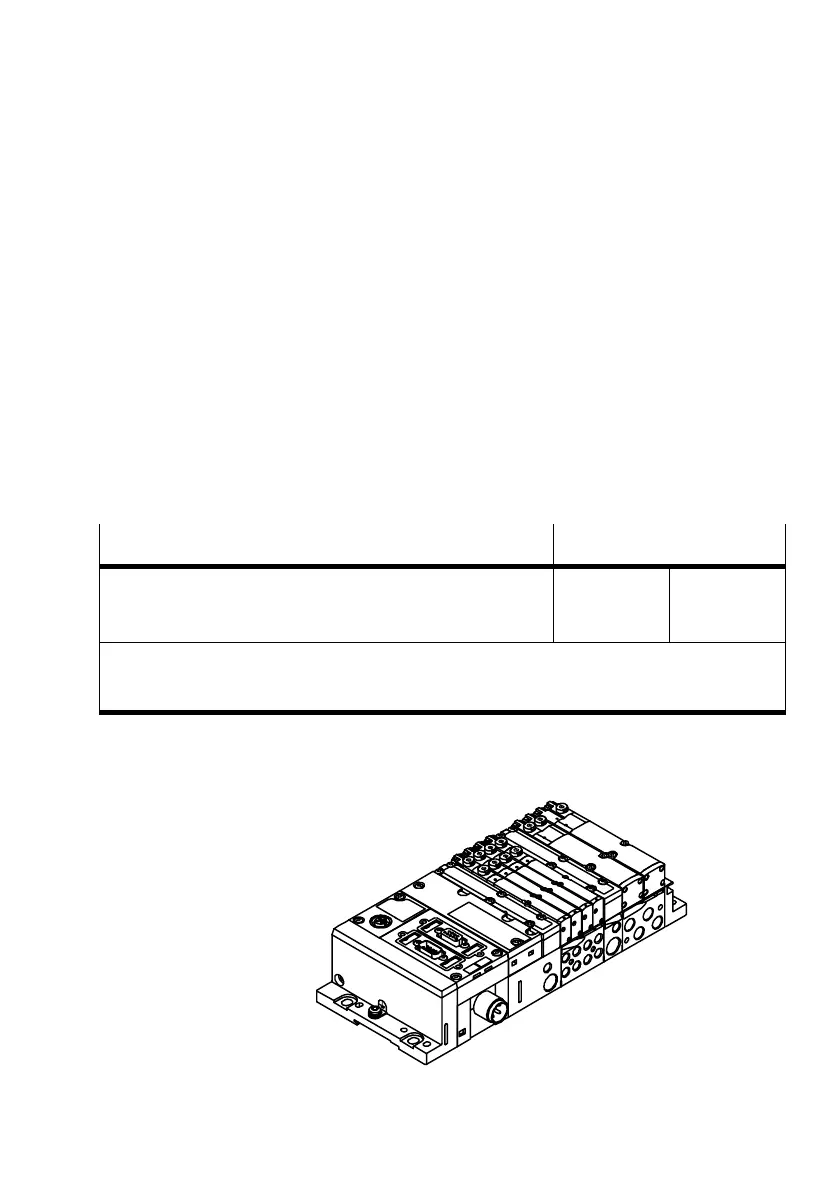

Fig.1/1: MPA−S valve terminal with CPX terminal
