1. Summary of components
1−6
Festo P.BE−MPA−EN en 0910d
MPA−S valve terminal with
CPI module
This variant of the MPA−S valve terminal is available in the
following grades:
MPA−S valve terminal with CPI module
Numbe r of valve positions
1)
Load voltage supply for the valves via ...
 CPI interface
2)
 CPI interface and electric supply plate (MPA)
3)
MPA1
4, 8 ... 12
4, 8, 12 ... 16
MPA2
2, 4, 6 ... 12
2, 4, 6 ... 16
1)
Two solenoid coils can be controlled per valve position.
2)
A max. of 24 solenoid coils can be supplied.
3)
A max. of 32 solenoid coils can be supplied.
Tab.1/2: Number of valve locations of the MPA−S valve terminal with CPI module

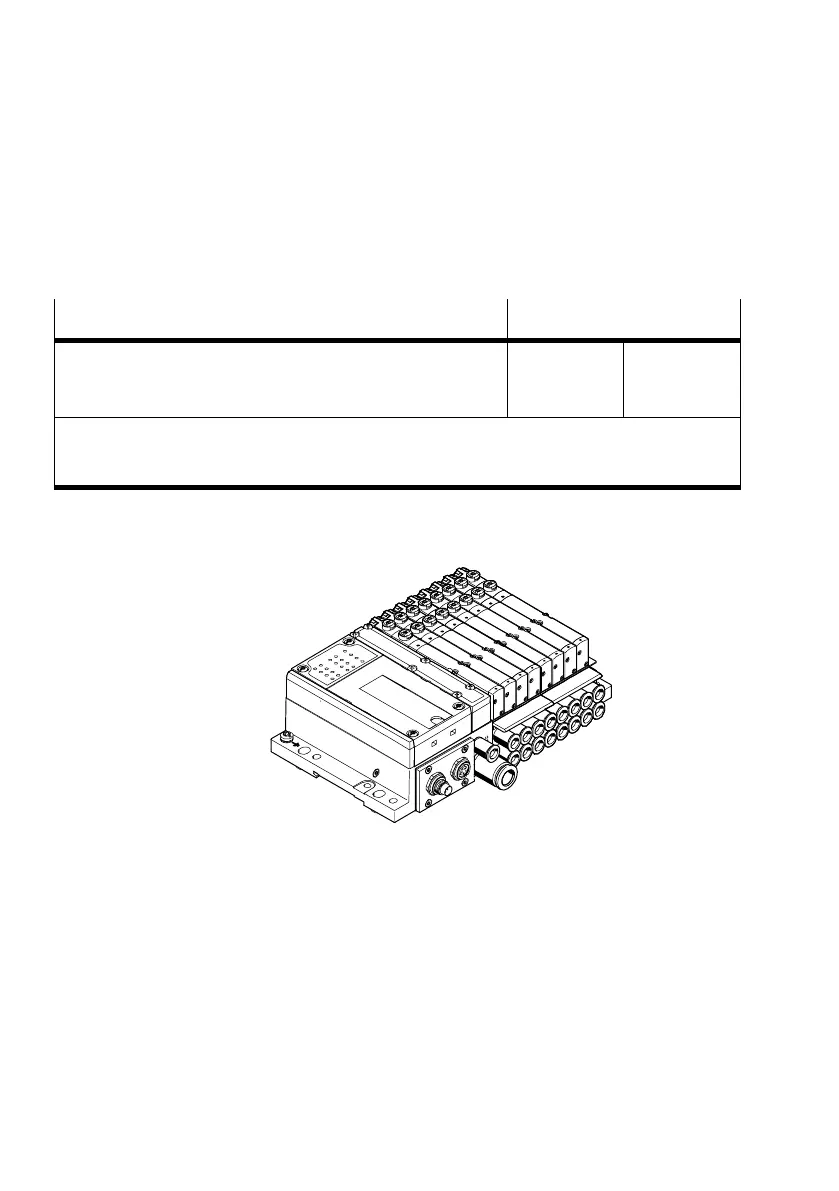

Fig.1/2: MPA−S valve terminal with CPI module
