Contents and general instructions
XI
Festo P.BE−MPA−EN en 0910d

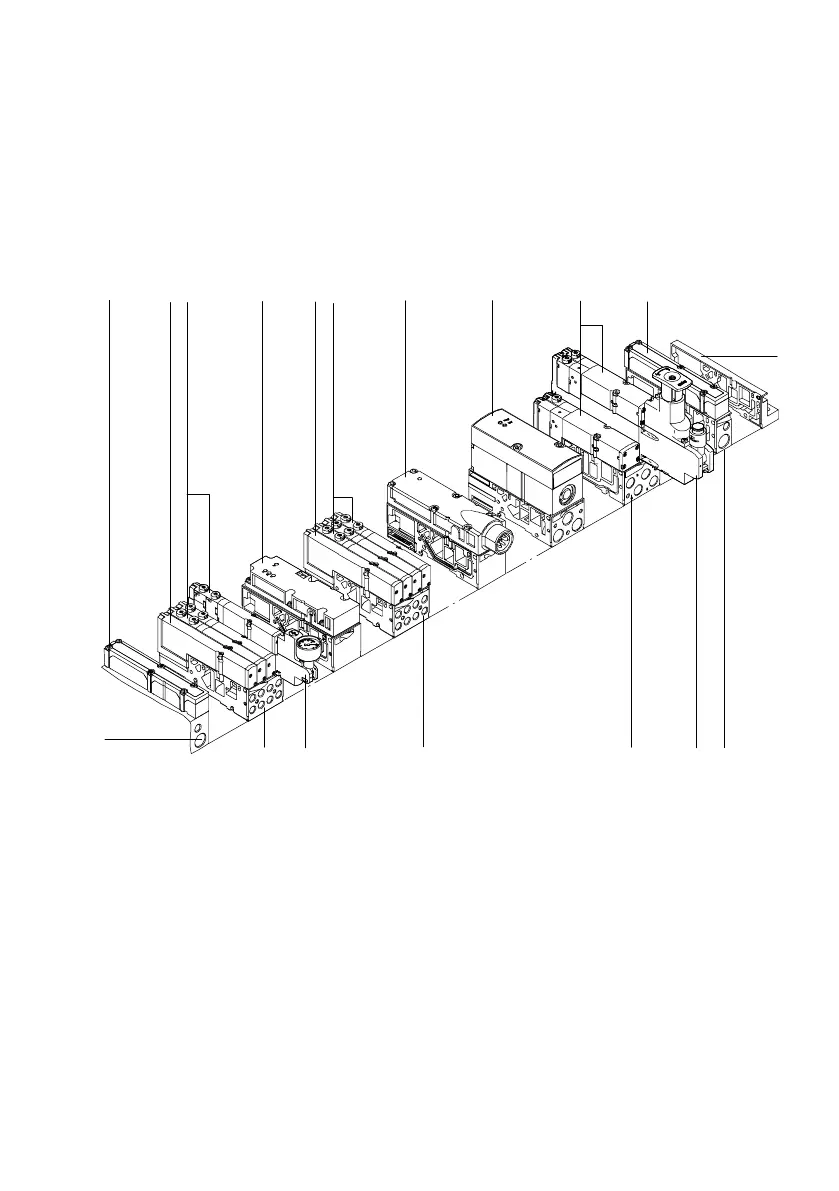

The MPA−S valve terminal consists of the following pneumatic
and electrical components: The most impor tant components
are shown in the following Fig.
12 3
4
5
6
7
8
1
3
9
aJ
2 3
9
aJ
aJ
aA
1
Flat plate silencer or exhaust plate
2 Blanking plate
3 Valves
4 Pressure sensor plate
5 Electrical supply plate
6 Proportional pressure regulator
7 Right end plate
8 Pneumatic Supply plate
9 Pressure regulator plate
aJ Sub−base
aA Multiple connector plate; AS interface,
CPI interface or pneumatic interface
Fig.0/1: Main components of the MPA−S valve terminal
