1. Summary of components
1−13
Festo P.BE−MPA−EN en 0910d
A description of the electric components of the MPA−S valve
terminal with CPI module or with AS interface can be found in
the corresponding package insert.

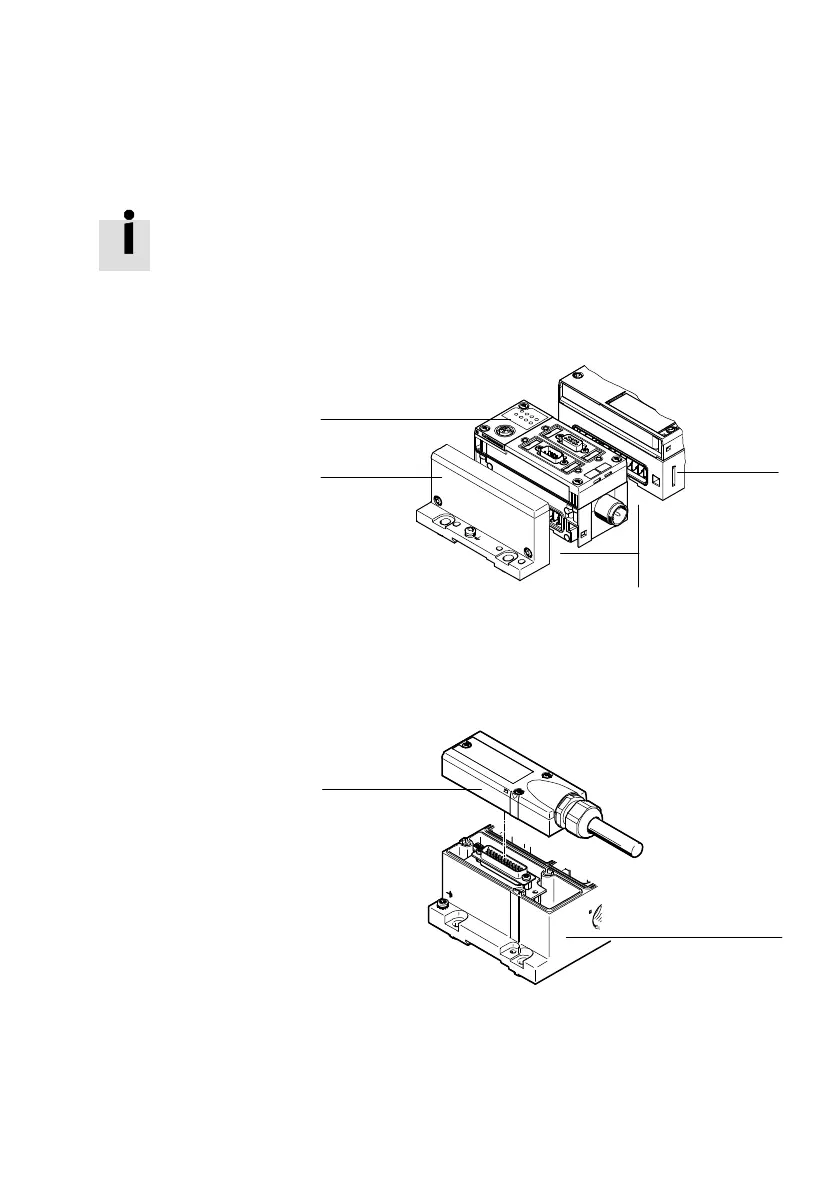

The MPA−S valve terminal with CPX terminal consists of the
following electric components:
1 CPX bus node
2 Electrical part of
the pneumatic
interface
3 Further optional
CPX modules
4 Left end plate
(CPX)
0
1
2
3
4
5
6
7
8
DI
PS
PM
SF
M
RUN
STOP
ERR
TP
1
2
3
4
Fig.1/9: Electric components of the MPA−S valve terminal with CPX terminal
The MPA−S valve terminal with multi−pin plug connection
Sub−D consists of the following electric components:
1 Multi−pin plug
socket with cable
2 Electrical part of
the multiple
connector plate
with Sub−D
connection
1
2
Fig.1/10: Electric components of the MPA−S valve terminal with multi−pin plug
connectionSub−D
