2. Fitting
2−15
Festo P.BE−MPA−EN en 0910d
Dismounting Proceed as follows:
1. Remove the 3rd and 4th valves from the corresponding
sub−base.
2. Unlock the inscription label holder by using a screwdriver
(blade width max. 3.5 mm) to press down the snap hook
(see diagram).
1 Hole for
unlocking the
inscription label
holder
2 Inscription label
holder
1
2

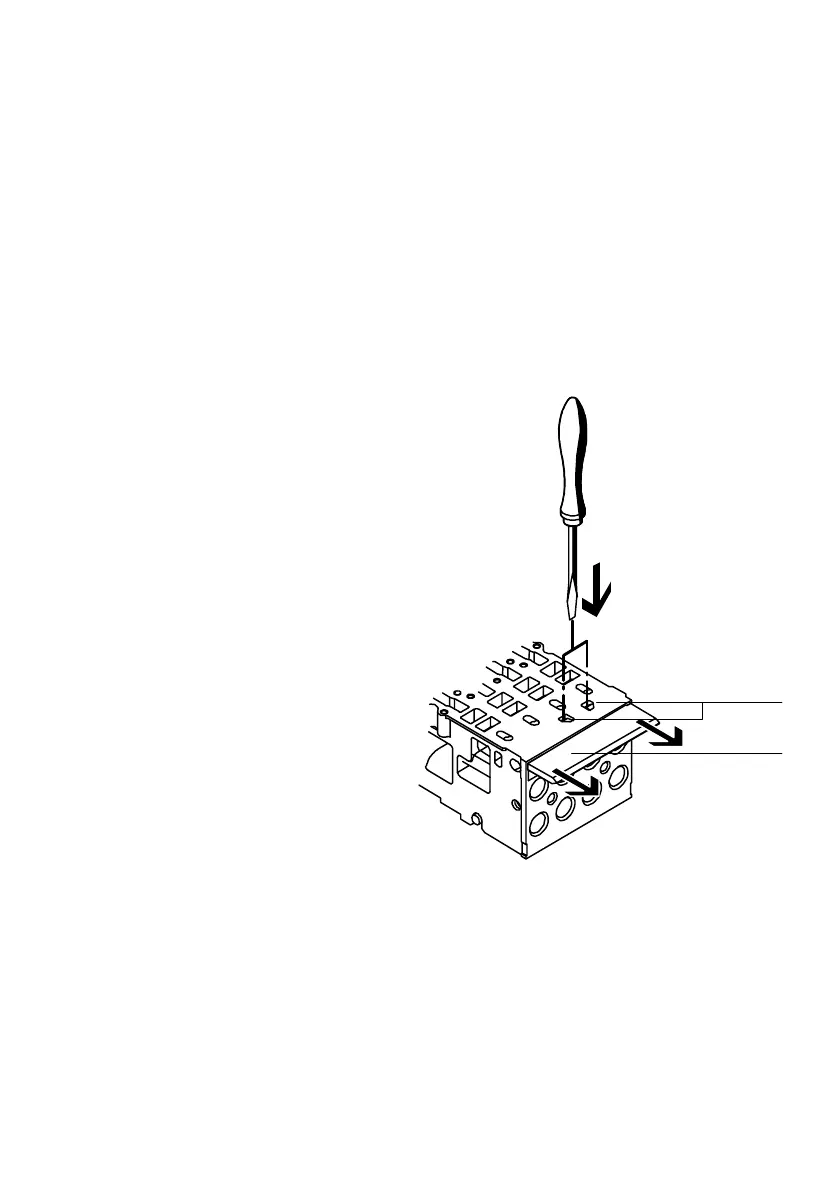

Fig.2/5: Removing the inscription label holder
3. Pull the inscription label holder out of the fixture in the
sub−base.
