3. Installation
3−10
Festo P.BE−MPA−EN en 0910d
1. Mark all pneumatic tubing.
2. Press down the locking ring of the fitting 1 e.g. with a
screwdriver or the loosening tool QSO from Festo, or
loosen the locking screw 2 of the fitting.
3. Remove the tube from the fitting.
4. Seal non−required fittings with blanking plugs 3.
1
2
3

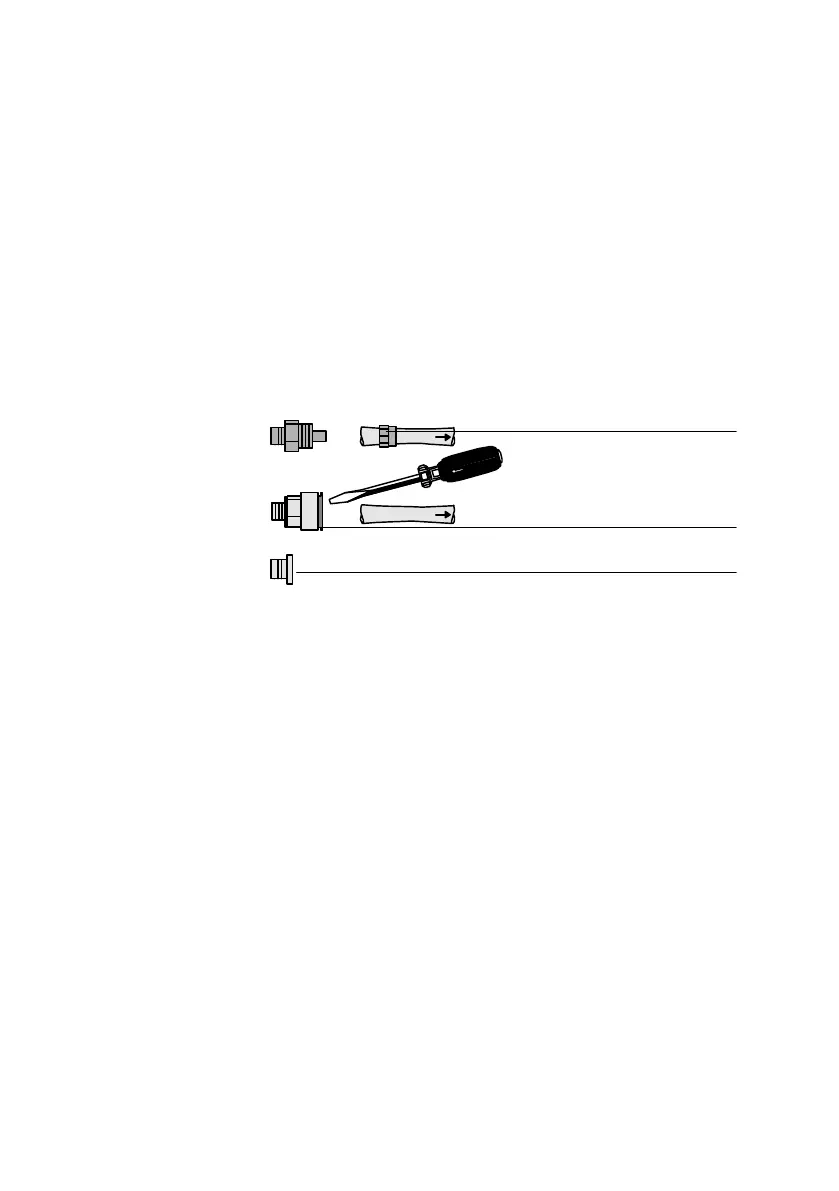

Fig.3/2: Disconnecting the tube
