Twinflex V3 Control Panel Engineering and Commissioning Manual
14

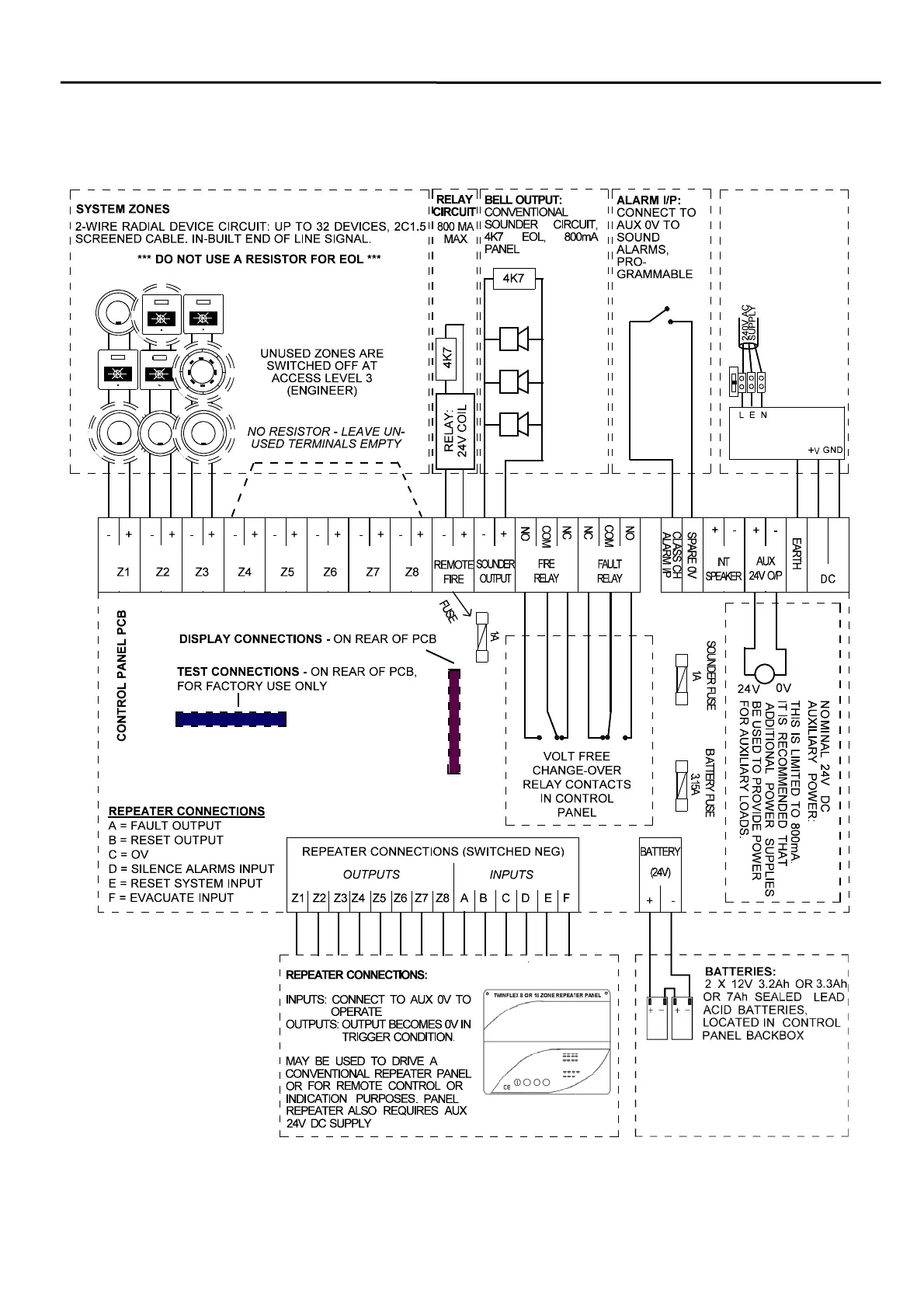

8 Zone Panels
POWER SUPPLY:
24V DC SWITCH
MODE PSU
LOCATED IN
CONTROL PANEL
BACK BOX
POWER
SUPPLY
DC
E
RED
BLACK
