Fike Twinflex V3 - Connecting Two Panels Together

Twinflex V3 Control Panel Engineering and Commissioning Manual
42
Connecting Two Control Panels Together
The second control panel could, of course, be another Twinflex control panel.
Only a maximum of two panels should be connected in this way. If more than two control panels are to be
interlinked contact your supplier for details. However, if all the control panels are Twinflex V3 control
panels then see below.
ALARM I/P
AUX 0V
FIRE RELAY
COM
N/O
ZONE
TWINFLEX
CONTROL
PANEL
3RD PARTY
CONTROL
PANEL
N/O
COM
N/C
FIRE RELAY
CLASS
CHANGE
INPUT
24V FIRE RELAY
+
COIL
--
NO
COM
NC
NO
COM
NC
REMOTE FIRE O/P
+VE
-VE
4K7
+VE
-VE
EOL
FR

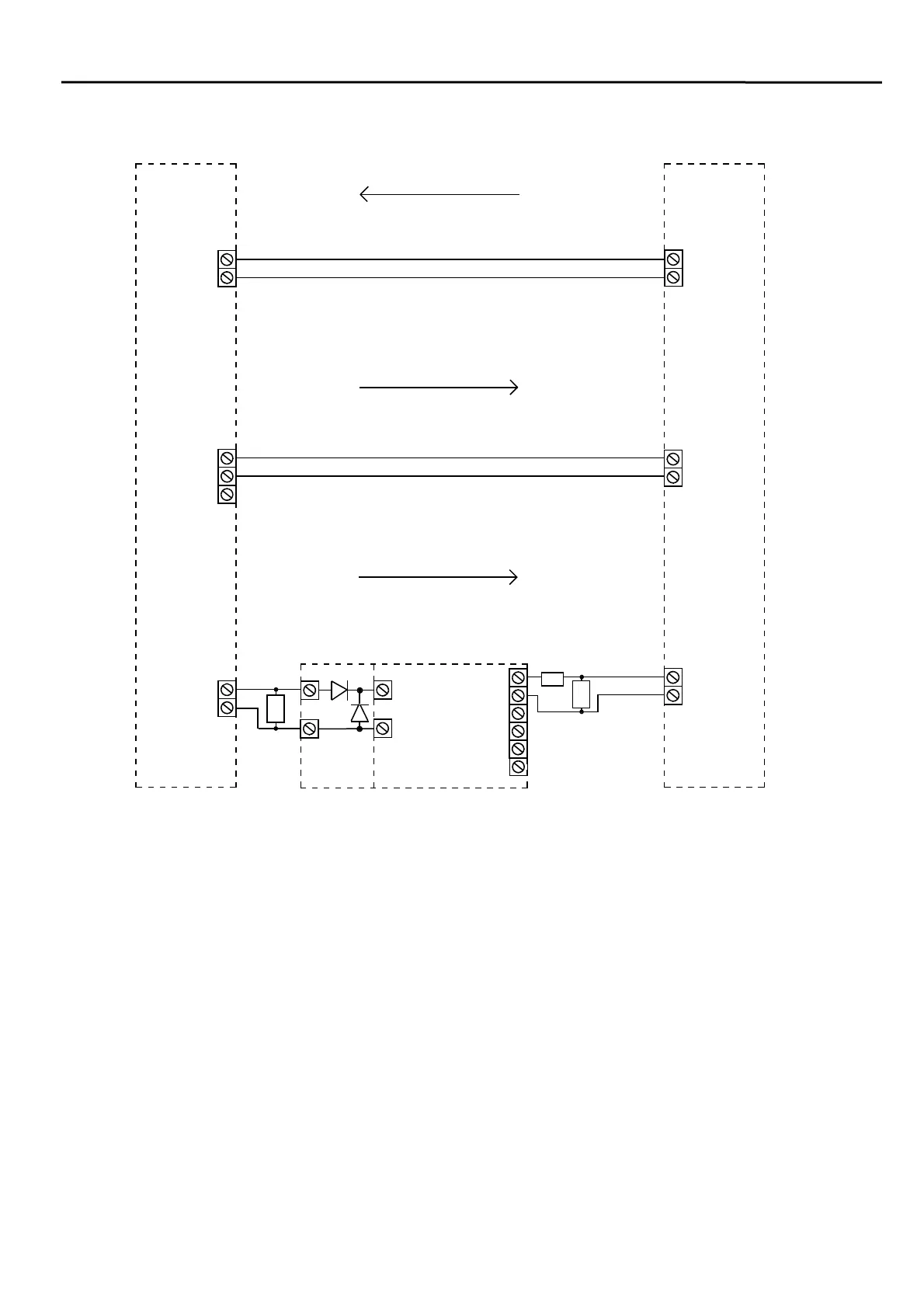

CONNECT THE ‘COMMON FIRE RELAY’ OF THE 3RD PARTY PANEL INTO THE ‘ALARM
INPUT’ OF THE TWINFLEX V3 PANEL, SELECTING MODE 2 ALARM INPUT OPERATION.
IF THE ALARM ORIGIONATED AT THE 3RD PARTY PANEL, THEN RESETTING THIS WILL
ALSO RESET THE TWINFLEX PANEL.
IF THE 3RD PARTY PANEL HAS A ‘CLASS CHANGE’ CONNECTION THEN CONNECT THIS
TO THE ‘FIRE RELAY’ OF THE TWINFLEX V3 PANEL, SELECTING MODE 2 ALARM INPUT
OPERATION.
IF THE ALARM ORIGIONATED AT THE TWINFLEX PANEL, THEN RESETTING THIS WILL
ALSO RESET THE 3RD PARTY PANEL.
IF THE 3RD PARTY PANEL DOES NOT HAVE A ‘CLASS CHANGE’ CONNECTION THEN
CONNECT THE ‘REMOTE FIRE OUTPUT’ OF THE TWINFLEX V3 PANEL TO A ZONE ON
THE 3RD PARTY PANEL, SELECTING MODE 2 ALARM INPUT OPERATION.
IF THE ALARM ORIGIONATED AT THE 3RD PARTY PANEL BOTH PANELS WILL NEED TO
BE RESET, BUT IN ANY ORDER AS THE TWINFLEX PANEL WILL NOT OPERATE ITS
RELAY IF IT RECEIVES THE INPUT FROM THE 3RD PARTY PANEL.
FR = FIRING RESISTOR
EOL = EOL RESISTOR
*SEE 3RD PARTY
PANEL INSTRUCTIONS
FOR FURTHER DETAILS
.
.
.
OR
.
.
.
