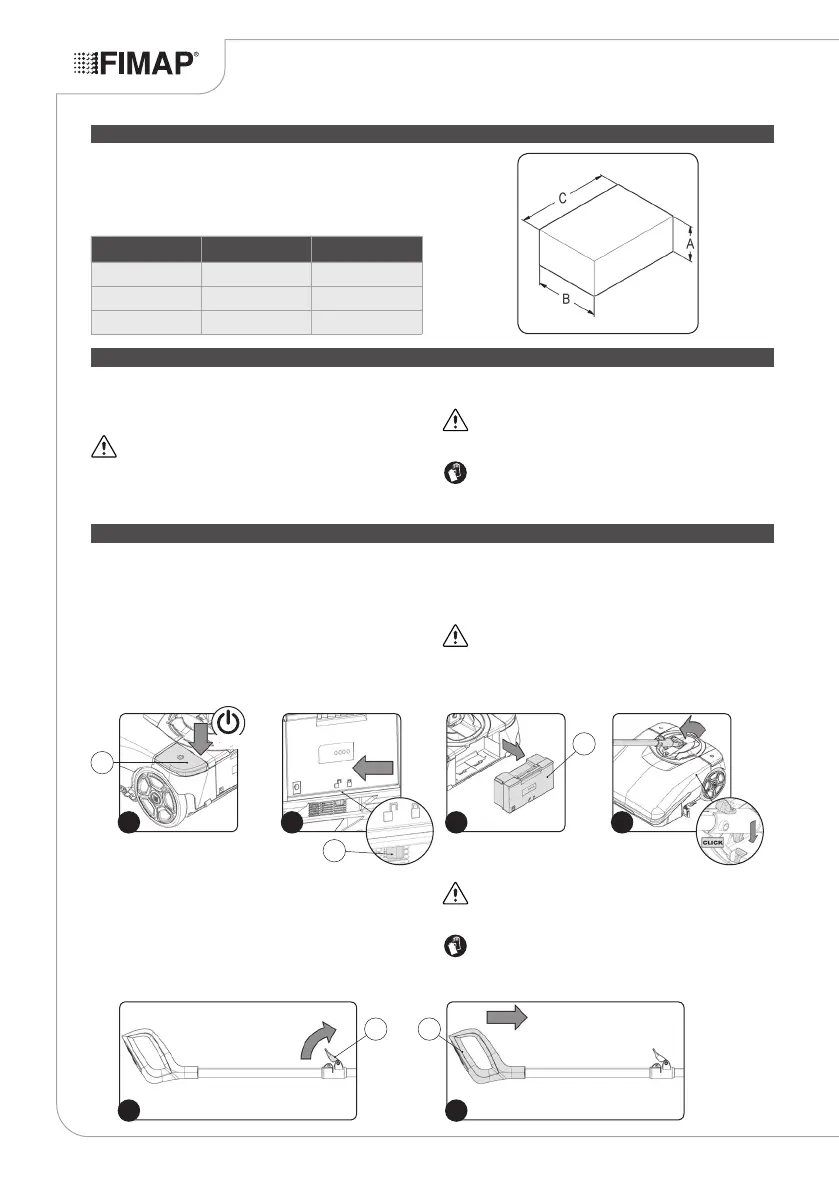

Fimap FIMOP - HANDLING AND TRANSPORT; HOW TO UNPACK THE APPLIANCE; HOW TO TRANSPORT THE APPLIANCE

8
The appliance is delivered in specic packaging. These packaging
elements (plastic bags, clips, etc.) are potential sources of danger
are potential sources of danger and must be kept out of the reach
of children, incompetent persons, etc. The overall weight of the
appliance plus its packaging is 18 kg.
The dimensions of the package are as follows:
HANDLING THE PACKED APPLIANCE
The procedure for removing the device from its packaging is the
following:
1. Place the lower part of the outer packaging in contact with the oor.
ATTENTION: use the pictograms printed on the box as a
reference.
2. Open the outer box.
3. Remove the accessories from the box and carefully lay them on
the ground.
4. Take the appliance out of the box.
ATTENTION: it is recommended that all the packaging
components be kept for any future transportation of the
appliance.
ATTENTION: these operations must be carried out using
protective gloves to avoid any possible contact with the edges
or tips of metal objects.
HOW TO UNPACK THE APPLIANCE
The procedure for the safe handling of the device is the following:
1. If the appliance is working, turn it off via the main switch (1) (Fig. 1).
2. Make sure the recovery tank is empty. If it isn't, empty it
completely.
3. Make sure the solution tank is empty. If it isn't, empty it completely.
4. Remove the power battery (2) from the appliance. To free the
battery, shift the stop lever (3) in the direction of the arrow (Fig.2).
5. Remove the battery from the appliance using the handle moulded
on it (Fig.3).
6. Block the handlebar in the horizontal position. Rest your foot on
the main part of the appliance to prevent it from tilting, then push
the handle away from you until it snaps into the horizontal position
(Fig.4).
ATTENTION: do not rest your foot on the main switch.
HOW TO TRANSPORT THE APPLIANCE
7. Rotate the stop lever of the command handlebar (4) in the
direction of the arrow (Fig.5).
8. Close the command handlebar, pushing the handle (5) towards
the main part of the appliance (Fig.6).
9. Rotate the stop lever of the command handlebar (4) in the
direction of the arrow (Fig.7).
10. To raise the device off the oor, use the handle (6) on its rear
(Fig.8)
ATTENTION: when transporting the appliance on vehicles,
secure it rmly in place in accordance with the directives in
force so that it cannot slide or tip over.
ATTENTION: these operations must be carried out using
protective gloves to avoid any possible contact with the edges
or tips of metal objects.
1
1
5 6
OFF
2
4 5
2 3 4
3
U/M FIMOP
A mm 270
B mm 487
C mm 698
