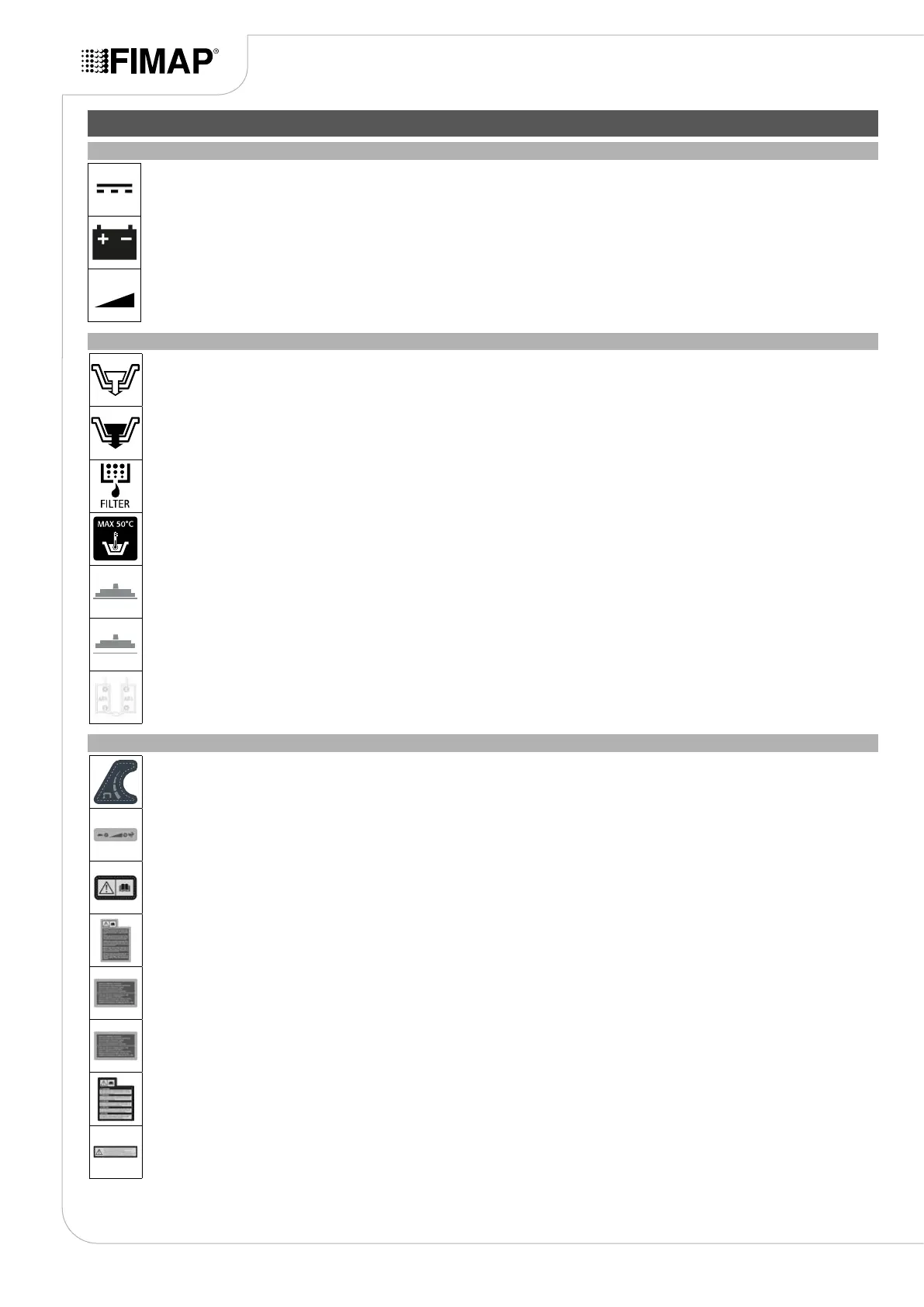

SYMBOLS USED ON THE MACHINE
SYMBOLS PRESENT ON THE REGISTRATION PLATE
SYMBOLS PRINTED ON THE MACHINE
LABELS USED ON THE MACHINE
Direct current symbol:
Used on the machine's registration plate to indicate that it is powered by a DC power supply.
Battery symbol:
Used on the machine's registration plate to indicate the maximum weight of the batteries used to power the machine (expressed in
kg). The value refers to the batteries that the manufacturer oers.
X%
Maximum gradient symbol:
Used on the machine serial number plate, to indicate the maximum gradient that can be safely handled in working mode.
Solution tank drain pipe symbol:
Located on the rear part of the machine, to identify the solution tank drainage point.
Recovery tank drainage hose symbol:
Located on the rear part of the machine, to identify the recovery tank drainage tube.
Cap/lter position symbol:
Located on the right-hand side of the machine to indicate the position of the detergent solution tank lter-cap.
Symbol of maximum temperature for lling the solution tank:
Located on the front of the machine to indicate the maximum temperature of the water for lling the solution tank safely.
Squeegee body working position symbol:
Located on the rear part of the machine, to indicate the squeegee control lever rotation direction for bringing the squeegee to its
working position.
Symbol for squeegee body idle:
Located on the rear part of the machine, to indicate the squeegee control lever rotation direction for bringing the squeegee to its idle
position.
Battery connection symbol:
Located on the front of the solution tank, to indicate how to connect the batteries in order to obtain a total voltage of 24V.
Label for detergent solution tap command:
Located on the right-hand side of the machine, to identify the control knob of the detergent solution tap.
Label for brush head tilt adjustment:
Located on the front of the machine, to identify the knob for adjusting the brush head body tilt.
Label indicating the need to read the Use and Maintenance Manual:
Axed to the machine in order to warn the operator to read the user and maintenance manual (this document) before using the
machine for the rst time.
Battery recharge hazard label:
Located inside the machine (above the electric system carter), to warn the operator of the possible risk during battery recharging
Battery recharge warning label:
Located inside the machine (above the electric system carter), to warn the operator when it's necessary to recharge the batteries.
Daily care warning label:
Applied to the machine to remind the operator of the applicable procedures for properly caring for the machine itself.
Machine use warning label:
Located on the rear of the machine, to warn the operator which substances cannot be removed with the machine.
Solution tank lter daily care warning label:
Applied to the machine to remind the operator to clean the solution tank after each use.
10
