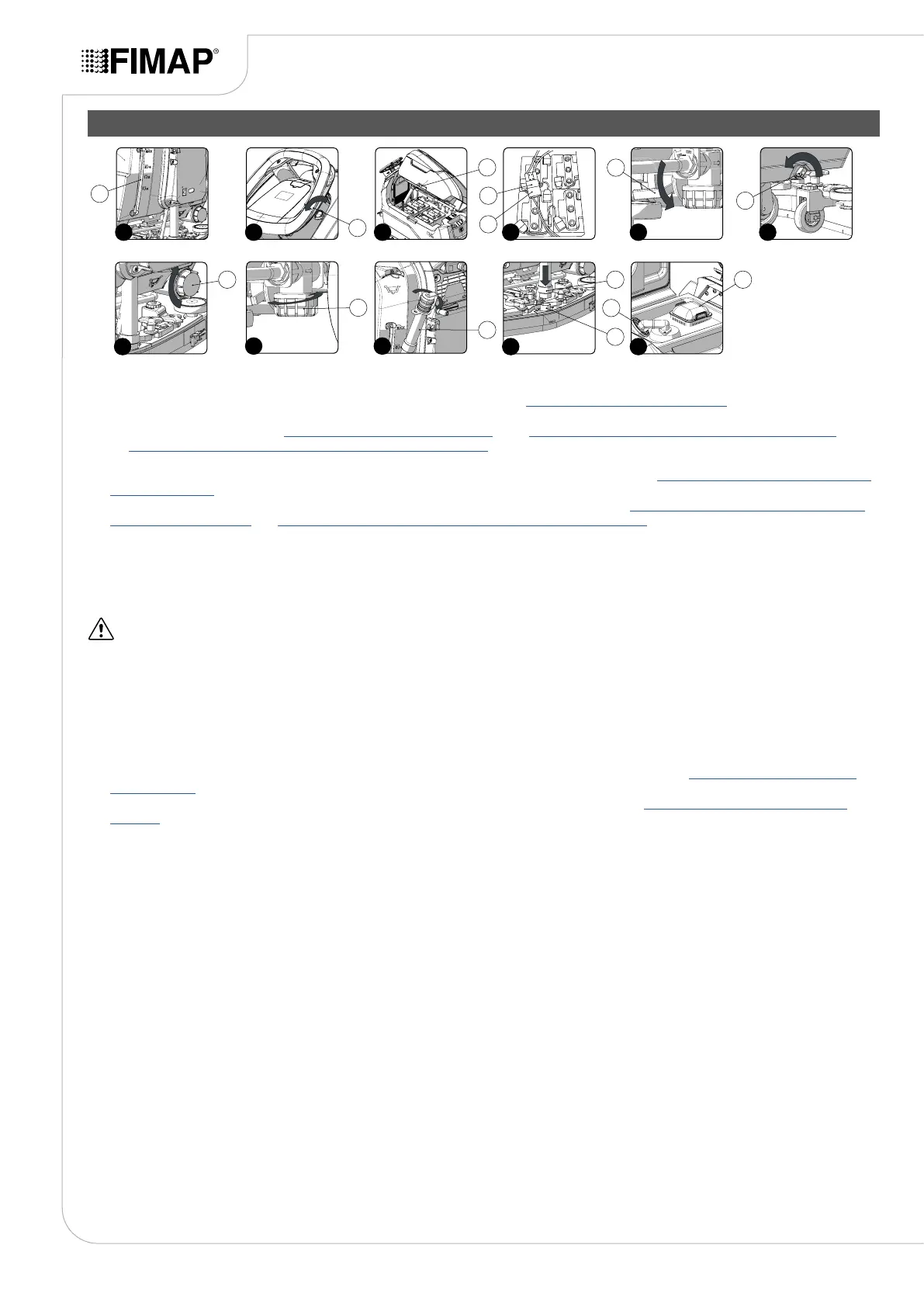

Before beginning to work, it is necessary to:
1. Make sure the recovery tank is empty. If this is not the case, empty it (read “EMPTYING THE RECOVERY TANK”).
2. Check that the quantity of detergent solution present in the solution tank is suitable for the type of work to be carried out. If this is not the
case, ll the solution tank (see “THE SOLUTION TANK WITH WATER” and “DETERGENT SOLUTION (VERSIONS WITHOUT FSS)”
or “FILLING THE DETERGENT CANISTER (VERSIONS WITH FSS)”). Check the level tube (1) in the rear left-hand part of the machine
(Fig.1).
3. Check the rubber squeegee blades are in good working condition. If they aren't, replace them (see “REPLACING THE SQUEEGEE BODY
RUBBER BLADES”).
4. Check that the condition of the brush is suitable for work; if this is not the case, replace it (see “REPLACING THE BRUSH HEAD BRUSH
(SCRUBBING VERSION)” or “REPLACING THE BRUSH HEAD BRUSH (SWEEPING VERSION)”).
5. Check that the machine is o; if this is not the case, turn the key (2) a quarter turn anti-clockwise (Fig.2) . Remove the key from the
instrument panel.
6. Grip the handle (3) on the right-hand side of the recovery tank (Fig.3) and turn the tank as far as it will go, until it reaches the maintenance
position.
7. Connect the main system connector (4) to the battery connector (5) (Fig.4).
ATTENTION: This process must be carried out by qualied personnel.
8. Grip the handle (3) on the right-hand side of the recovery tank and turn the tank until it reaches the work position.
9. Make sure the electronic brake is engaged. If this is not the case, turn the lever (6) in the direction of the arrow. The traction gearmotor is
located on the right-hand side of the machine (Fig.5).
10. Check the water tap is fully open - the water adjustment knob (7) must be turned fully in the direction shown by the arrow (Fig.6).
11. Make sure the solution tank drainage cap (8) is closed. If it isn't, close it (Fig.7).
12. Make sure the water lter cap (9) is closed. If it isn't, close it (Fig.8).
13. Make sure the cap of the recovery tank drainage tube (10) is closed. If it isn't, close it (Fig.9).
14. Make sure the vacuum tube (11) is correctly connected to the sleeve (12) in the squeegee body. If it isn't, connect it (Fig.10).
15. Make sure the suction motor lter (13) is correctly connected and is clean (Fig.11). If it isn't, clean it (see “CLEANING THE RECOVERY
TANK FILTERS”).
16. Make sure the lter basin (14) is correctly connected and is clean (Fig.11). If it isn't, clean it (see “CLEANING THE RECOVERY TANK
FILTERS”).
PREPARING TO WORK
18
1
1
2
2
3
3
4
4
5
9
5 6
6
7
10
8
7
9
8
10 11
12
13
11 14
