TECHNICAL DATA
Remarks:
(1) The working capacity is calculated using a forward speed of 2.5 Km/h.
(2) The width of the squeegee refers to its maximum footprint.
(3) The width is to be understood as being without the squeegee mounted on the machine.
(4) Machine weight: refers to the overall machine weight without the batteries, and with both tanks empty.
(5) Machine weight during transport: refers to the overall machine weight with the batteries, but with both tanks empty.
TECHNICAL DATA
Unit of
Measurement
MxL 65 Bt
Pro
MxL 75 Bt
Pro
MxL 85 Bt
Pro
MxL 70 Bts
Pro
Rated machine power W 1710 1710 1710 1610
Working capacity up to
(1)
m
2
/h 1638 1913 2100 1613
Working width mm 655 765 840 645
Squeegee width
(2)
mm 785 885 985 885
Brush head brush diameter (number - diameter) mm 2 / Ø340 2 / Ø400 2 / Ø430 -
Dimensions of cylindrical brush [number - (diameter - length)] mm - - - 2 / (Ø180 / 616)
Number of brush head brush rotations rpm 140 140 140 550
Brush head motor electrical properties [number / (voltage - rated power)] V / W 2 / (24 / 500) 2 / (24 / 500) 2 / (24 / 500) 2 / (24 / 450)
Debris hopper internal volume dm
3
- - - 8
Weight exerted on the brush head kg 33÷55 35÷57 38÷60 15÷40
Gradeability (weight
(5)
) % - - - -
Traction motor electrical properties [number / (voltage - rated power)] V / W 1 / (24 / 300) 1 / (24 / 300) 1 / (24 / 300) 1 / (24 / 300)
Forward speed (with transfer program active) Km/h 4,9 4,9 4,9 4,9
Suction motor electrical properties [number / (voltage - rated power)] V / W 1 / (24 / 422) 1 / (24 / 422) 1 / (24 / 422) 1 / (24 / 422)
Vacuum on vacuum head mBar 112 112 112 112
Maximum solution tank capacity l 74 74 74 74
Maximum recovery tank capacity l 85 85 85 85
Maximum solution tank capacity L 3 3 3 3
Machine dimensions (length - width
(3)
- height) mm
1497 - 701 -
1093
1514 - 795 - 1093 1542 - 878 - 1093 1471 - 733 - 1093
Battery compartment dimensions (length - width - useful height) mm 524 - 396 - 320 524 - 396 - 320 524 - 396 - 320 524 - 396 - 320
Electrical properties of recommended battery [number / (voltage / electric charge)] V / AhC
5
4 / (6 / 180) 4 / (6 / 180) 4 / (6 / 180) 4 / (6 / 180)
Maximum individual battery weight (recommended) kg 31 31 31 31
Machine weight
(4)
kg 191 193 196 192
Machine weight during transport
(5)
kg 315 317 320 316
GVW kg 400 402 405 410
Sound pressure level (ISO 11201) - L
pa
dB (A) <70 <70 <70 <70
Uncertainty K
pa
dB (A) 1,5 1,5 1,5 1,5
Hand vibration level (ISO 5349) m/s
2
<2,5 <2,5 <2,5 <2,5
Vibration measurement uncertainty - - - -

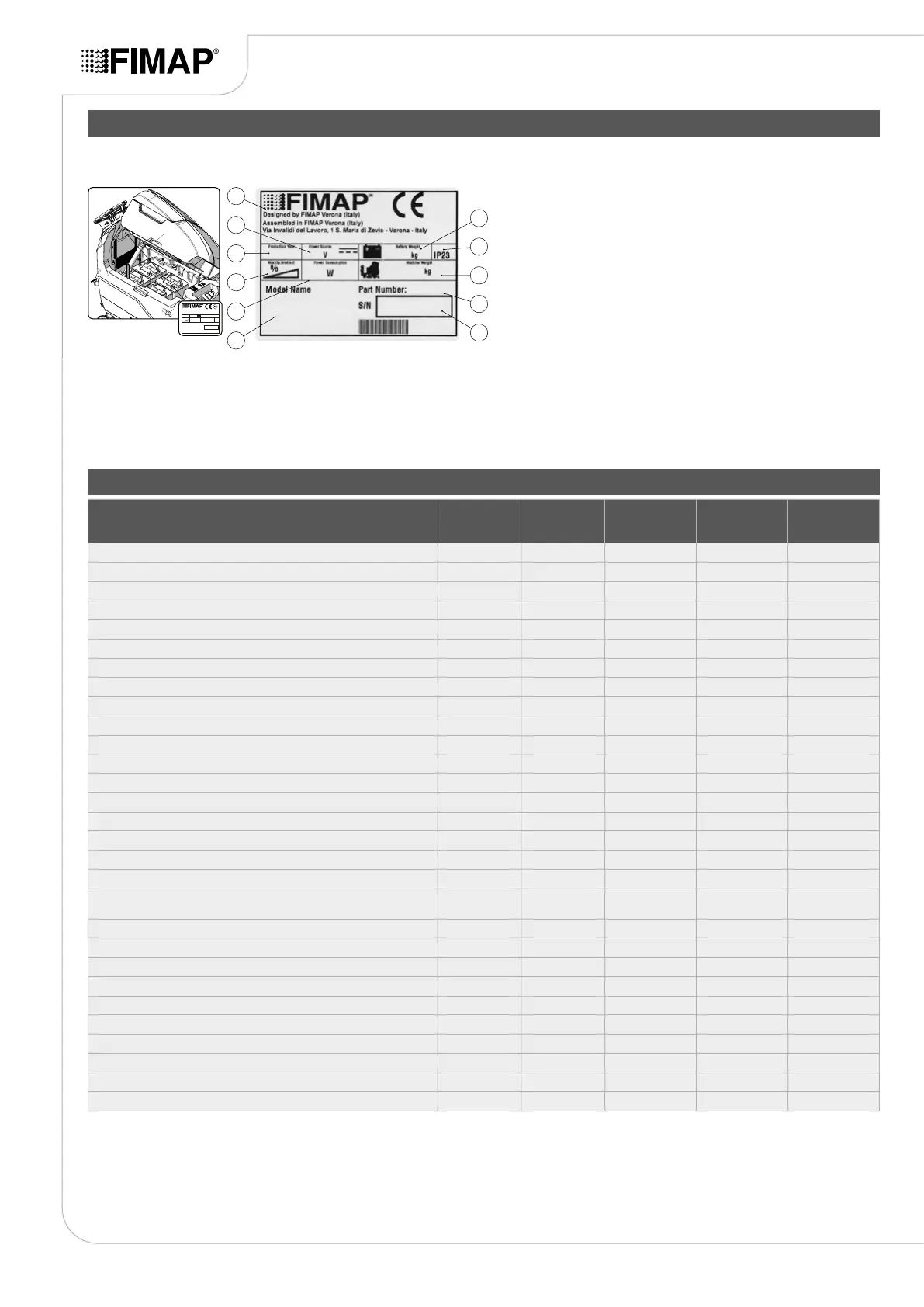

SERIAL NUMBER PLATE
The serial number plate is positioned underneath the electrical system control panel inside the machine. It indicates the general machine
characteristics, in particular the serial number. The serial number is a very important piece of information and should always be provided
together with any request for assistance or when purchasing spare parts. The serial number plate contains the following:
1. The maximum weight of the batteries that power the machine
(expressed in kg).
2. The IP protection rating of the machine.
3. The gross weight of the machine (expressed in kg).
4. The machine ID code.
5. The machine serial number.
6. The machine ID name.
7. The nominal power consumed by the machine (expressed in W).
8. The maximum grade that the appliance can handle during
work activities (expressed in %).
9. The year of machine manufacture.
10. The nominal voltage of the machine (expressed in V).
11. The commercial name of the machine, and the manufacturer's
address.
Design by FIMAP Verona (Italy)
Assembled in FIMAP Verona (Italy)
Via Invalidi del Lavoro, 1 S. Maria di Zevio - Verona - Italy
11
10
9
8
7
6
1
2
3
4
5
8
