finjan NG-8000 Installation And Setup Guide

Installation and Setup Guide
47
Chapter 4 - Configuring ICAP Clients

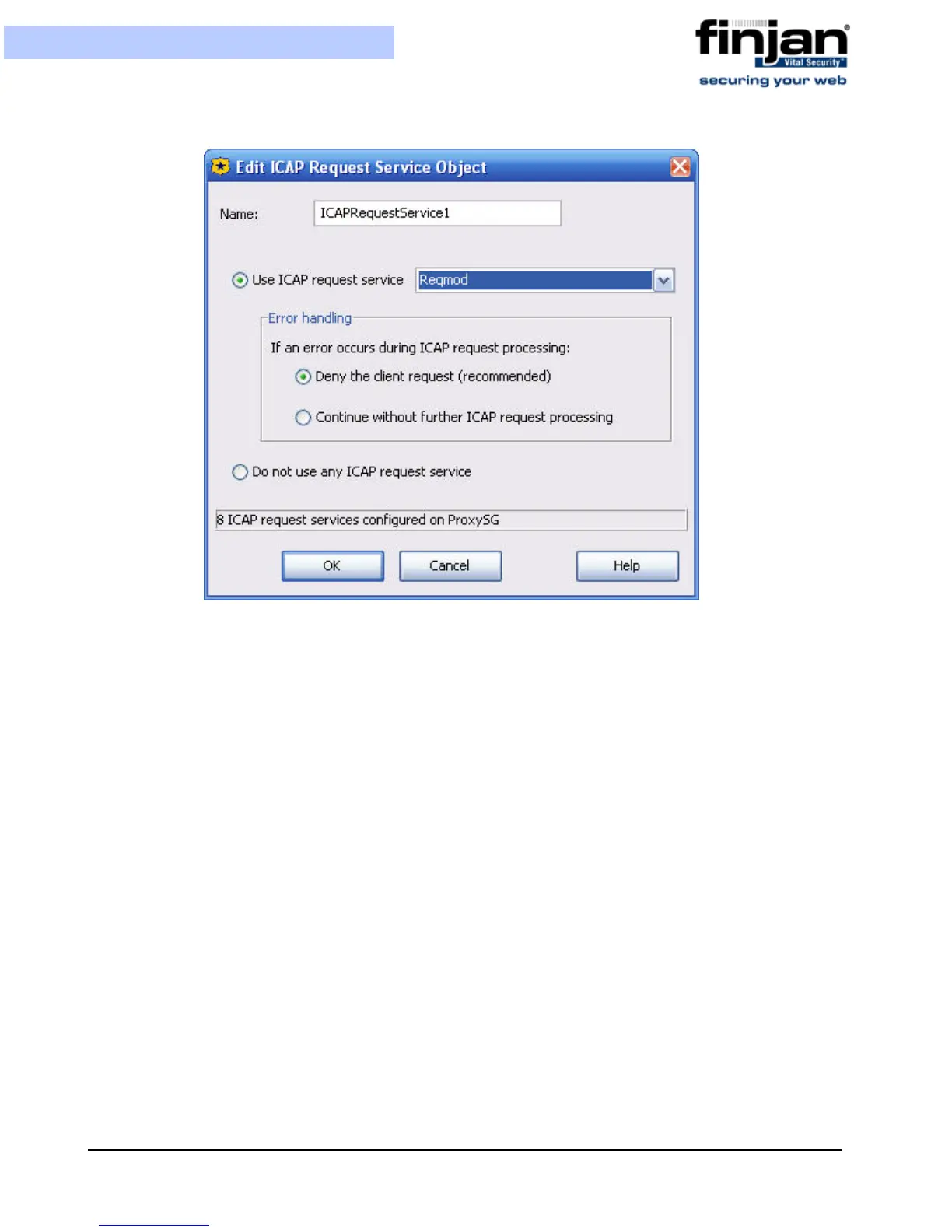

Figure 4-14: Edit ICAP Request Service Object
8.
Select the Use ICAP Request Service checkbox.
9. From the drop-down list, select the REQMOD you have defined, and click OK.
10.Go back to the Set Action Object dialog box, and click OK.
11.Click the Install Policy button in the Visual Policy Manager.
 To define RESPMOD (Response Modification) Service
This is carried out using the same steps as for REQMOD with the following differences:
1. In the Edit ICAP Service dialog box (Figure 4-14)
 The Service URL should be:
icap//<scanner IP (ICAP server)>:<scanner port (default=1344)>/
Finjan_RESPMOD.
For example, icap://192.168.90.10:1344/Finjan_RESPMOD
 The Method Supported should be response modification instead of
request.
2. In the Set Action Object dialog box (Figure 4-13), select ICAPResponse1 instead
of ICAPRequestService1. This opens the Edit ICAP Response Service Object
dialog box.
